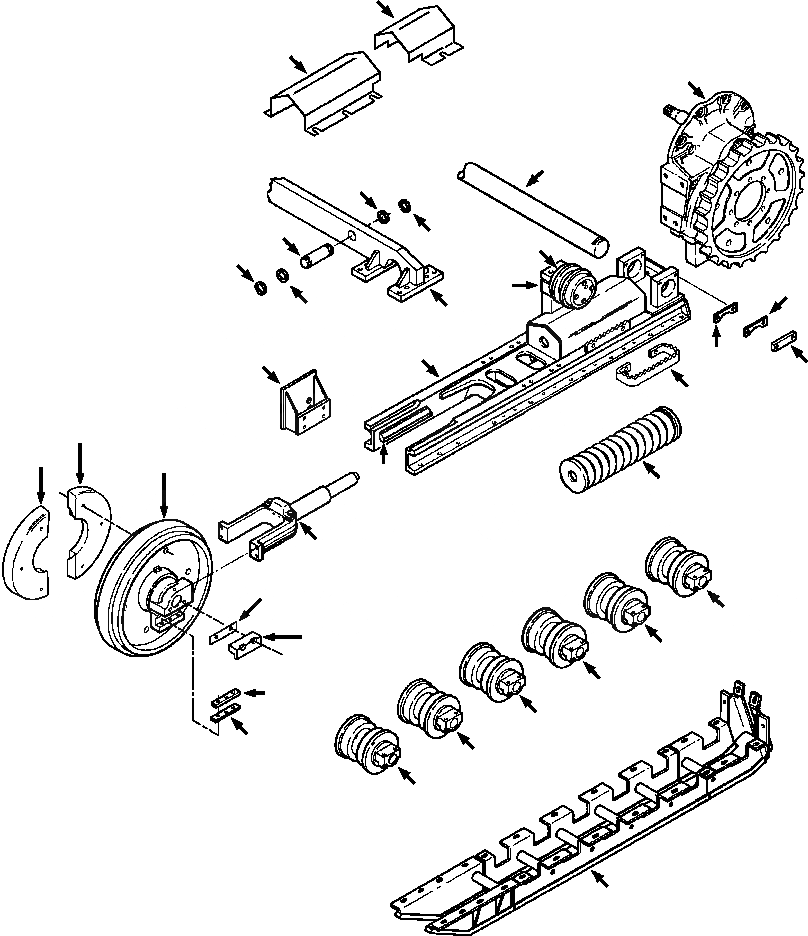

Запчасти Komatsu D39E-1 НИЖН.CARRIAGE ПОДВЕСКА

|$0

1281 178 H91

TRACK FRAME

-54шт.

|$1

1280 537 H91

FRAME ASSY, LEFT TRACK

1шт.

|$2

1280 538 H91

FRAME ASSY, RIGHT TRACK

1шт.

1

NSS

FRAME, TRACK

1шт.

2

621 338 C1

BAR, FRONT IDLER WEAR - OPTIONAL

2шт.

2

662 526 C1

BAR, FRONT IDLER WEAR - OPTIONAL

2шт.

3

1233 532 H1

BLOCK, TOP IDLER MOUNTING

1шт.

|$7

1261 941 H91

STABILIZING LINKAGE

-54шт.

4

338 159 R1

RING, RETAINING

4шт.

5

1283 831 H1

RETAINER, RING

4шт.

6

743 286 C1

BAR, REAR RIGID

1шт.

7

621 410 C1

BAR, LOCK

2шт.

|$12

24 875 R1

BOLT, HEX - 5/8NCx2

4шт.

|$13

25 537 R1

WASHER, FLAT - 5/8

4шт.

8

621 411 C1

SHIM, LOCK BAR

8шт.

9

1306 387 H1

SHIM, LOCK BAR

4шт.

10

621 560 C1

PIN, MOUNTING

2шт.

11

1252 418 H91

CROSSBAR, FRONT

1шт.

|$18

24 895 R1

BOLT, HEX - 3/4NCx4-1/2

16шт.

|$19

25 548 R1

WASHER, FLAT - 3/4

16шт.

|$20

1251 269 H91

TRACK ROLLERS AND IDLERS

-54шт.

12

ROLLER, TRACK (SEE PG 14-008)

-29шт.

|$22

24 880 R1

BOLT, HEX - 5/8NCx3-1/2

48шт.

|$23

25 537 R1

WASHER, FLAT - 5/8

48шт.

13

IDLER, TOP (SEE PG 14-006)

-29шт.

|$25

24 878 R1

BOLT, HEX - 5/8NCx2-3/4

2шт.

|$26

25 537 R1

WASHER, FLAT - 5/8

2шт.

|$27

1281 179 H91

FRONT IDLER AND ADJUSTER

-54шт.

14

IDLER, FRONT (SEE PG 14-010)

-29шт.

15

622 044 C1

BAR, WEAR

4шт.

|$30

870 325 R1

BOLT, HEX - 7/16NCx1-3/8

12шт.

|$31

115 314

WASHER, LOCK - 7/16

12шт.

16

621 423 C1

SHIM, WEAR BAR

-2шт.

17

1280 497 H1

PLATE, THRUST

4шт.

|$34

24 875 R1

BOLT, HEX - 5/8NCx2

8шт.

18

1280 498 H1

SHIM, THRUST PLATE

-2шт.

19

SPRING, TRACK (SEE PG 14-012)

-29шт.

20

ADJUSTER, TRACK (SEE PG 14-012)

-29шт.

21

FINAL DRIVE AND SPROCKET (SEE PG 07-092)

-29шт.

|$39

1285 338 H91

COUNTERWEIGHT

-54шт.

22

1285 310 H1

COUNTERWEIGHT, FRONT IDLER

8шт.

|$41

24 868 R1

BOLT, HEX - 1/2NCx4

12шт.

|$42

25 555 R1

WASHER, FLAT - 1/2

24шт.

|$43

9412 230

NUT, LOCK - 1/2NC

12шт.

23

BAR, RUB (SEE PG 15-006)

-29шт.

24

STEP, FOOT (SEE PG 15-006)

-29шт.

|$46

1301 227 H91

TRACK FRAME COVERS

-54шт.

25

1301 187 H91

COVER, FRONT

2шт.

|$48

24 860 R1

BOLT, HEX - 1/2NCx1

12шт.

|$49

25 536 R1

WASHER, FLAT - 1/2

12шт.

26

1301 182 H91

COVER, REAR

2шт.

|$51

24 860 R1

BOLT, HEX - 1/2NCx1

4шт.

|$52

25 536 R1

WASHER, FLAT - 1/2

4шт.

27

TRACK ROLLER SHIELD (SEE PG 14-014)

-29шт.

|$$55

-1шт.

|$55

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.
