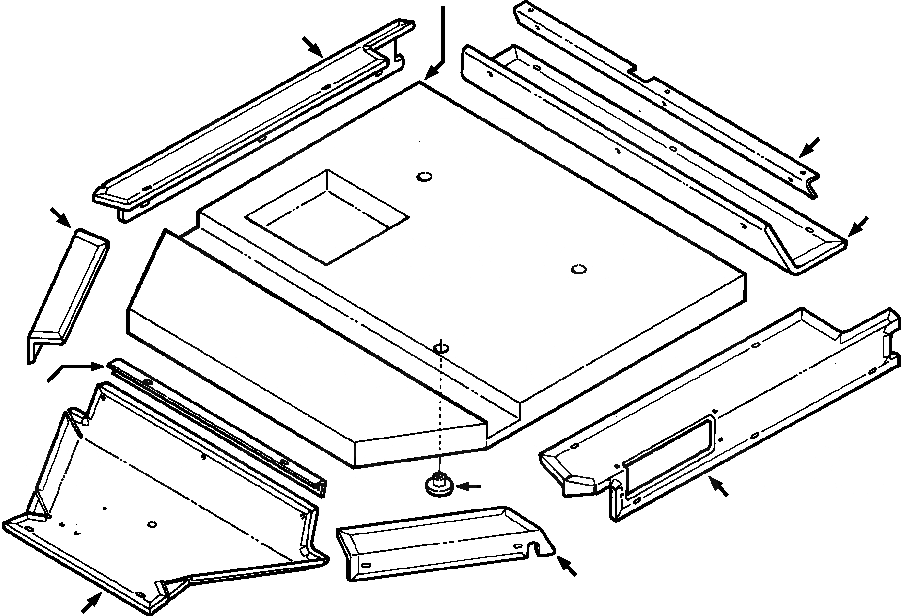

Запчасти Komatsu D39E-1 КАБИНА ROPS - /9 HEADLINERS И INSULATION SUPERSTRUCTURE

|$0

1304 301 H91

CAB ASSY, COMPLETE

1шт.

1

1304 416 H91

COVER, REAR UPPER

1шт.

|$2

31 006 R1

SCREW, PAN HEAD - M6x16

6шт.

|$3

1309 381 H1

WASHER, CUP

6шт.

2

1299 662 H91

BRACKET, REAR

1шт.

|$5

931 827 R1

BOLT, HEX - M6x16

3шт.

|$6

30 325 R1

WASHER, FLAT - M6

3шт.

3

1304 414 H91

COVER, LEFT UPPER REAR

1шт.

|$8

31 006 R1

SCREW, PAN HEAD - M6x16

5шт.

|$9

1309 381 H1

WASHER, CUP

5шт.

4

1304 415 H91

COVER, RIGHT UPPER REAR

1шт.

|$11

31 006 R1

SCREW, PAN HEAD - M6x16

5шт.

|$12

1309 381 H1

WASHER, CUP

5шт.

5

1304 418 H91

GUARD, LEFT FRONT

1шт.

|$14

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$15

1309 381 H1

WASHER, CUP

2шт.

6

1304 419 H91

GUARD, RIGHT FRONT

1шт.

|$17

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$18

1309 381 H1

WASHER, CUP

2шт.

7

1299 663 H91

BRACKET, FRONT

1шт.

|$20

931 827 R1

BOLT, HEX - M6x16

2шт.

|$21

30 325 R1

WASHER, FLAT - M6

2шт.

8

1304 444 H1

HEADLINER

1шт.

9

1304 487 H1

FASTENER, LINER

3шт.

10

1304 417 H91

COVER, FRONT CENTER

1шт.

|$25

31 006 R1

SCREW, PAN HEAD - M6x16

3шт.

|$26

30 577 R1

SCREW, PAN HEAD - M6x25

2шт.

|$27

1309 381 H1

WASHER, CUP

5шт.
