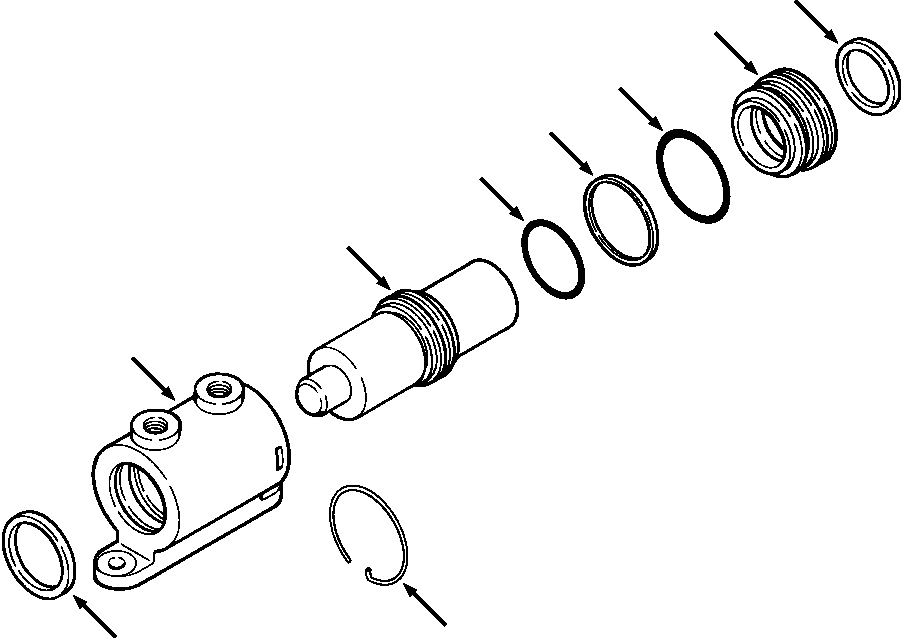

Запчасти Komatsu D38E-1 ЦИЛИНДР РУЛЕВ. УПР-Я ПРИВОД TRAIN

|$0

1211 653 H91

STEERING CYLINDER

-54шт.

1

666 229 C2

HOUSING, CYLINDER

1шт.

2

666 230 C1

PISTON, CYLINDER

1шт.

3

666 231 C1

CAP, END

1шт.

|$4

679 248 C91

PACKAGE, CYLINDER SEAL

1шт.

4

NSS

SEAL, PISTON

1шт.

5

NSS

RING, SEAL

1шт.

6

NSS

RING, QUAD

1шт.

7

NSS

RING, SEAL

1шт.

8

NSS

RING, QUAD

1шт.

9

381 873 R1

RING, RETAINING

1шт.

|$$12

-1шт.

|$12

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$14

-1шт.

|$$15

-1шт.

|$15

F2 - ALSO INCLUDES PARTS LISTED ON PG 07-088.

-1шт.

|$$17

-1шт.
