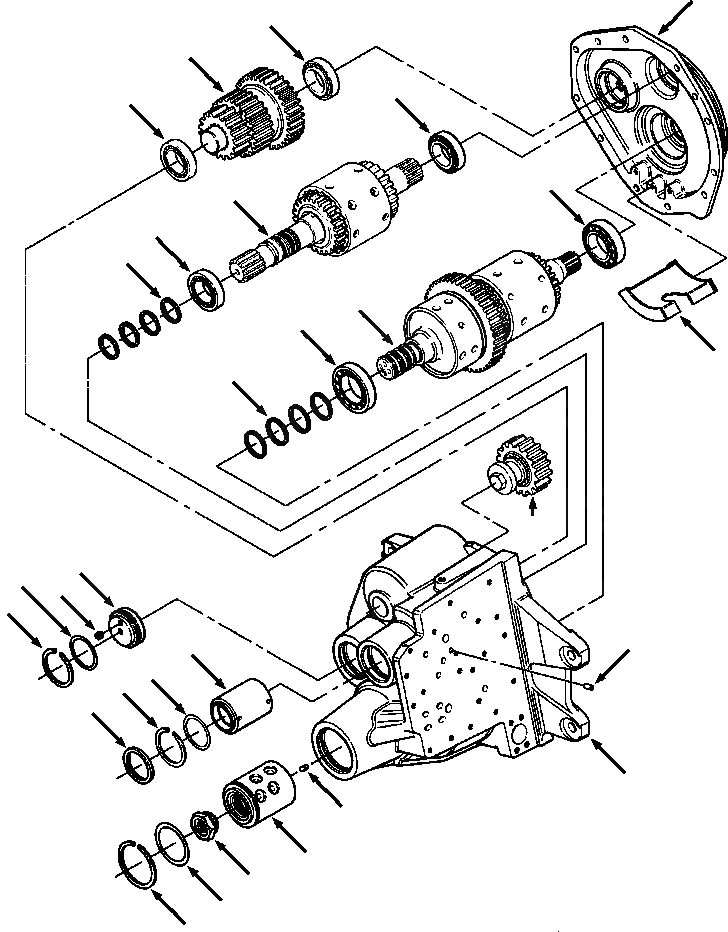

Запчасти Komatsu D38E-1 ТРАНСМИССИЯ КОЖУХ И INTERNAL ЧАСТИ ПРИВОД TRAIN

|$0

716 969 C93

HOUSING AND INTERNAL PARTS

-54шт.

1

709 896 C91

CASE ASSY, TRANSMISSION

1шт.

|$2

19 904 R1

PIN, DOWEL - 1/2x1

2шт.

2

709 589 C1

COVER, REAR

1шт.

|$4

24 861 R1

BOLT, HEX - 1/2NCx1-1/4

12шт.

|$5

25 546 R1

WASHER, FLAT - 1/2

12шт.

3

CLUTCH, DIRECTIONAL (SEE PG 07-070)

-29шт.

4

1298 009 H91

BEARING, TAPERED ROLLER - OPTIONAL

4шт.

4

631 169 C91

BEARING, TAPERED ROLLER - OPTIONAL

4шт.

|$9

631 170 C91

CONE, BEARING

1шт.

|$10

376 463 C1

CUP, BEARING

1шт.

5

709 895 C1

MANIFOLD, DIRECTIONAL CLUTCH

1шт.

6

20 040 R1

PIN, DOWEL - 1/4x3/4

2шт.

7

716 841 C2

SEAL, RING - OPTIONAL

4шт.

7

327 090 R3

SEAL, RING - OPTIONAL

4шт.

8

705 495 C1

SHIM - 0.005IN

-2шт.

|$16

705 496 C1

SHIM - 0.007IN

-2шт.

|$17

705 497 C1

SHIM - 0.030IN

-2шт.

9

28 099 R1

RING, RETAINING

2шт.

10

619 586 C91

SEAL, OIL

1шт.

11

COUNTERSHAFT (SEE PG 07-072)

-29шт.

12

705 055 C1

COVER, COUNTERSHAFT

1шт.

|$22

22 410 R1

RING, SEAL

1шт.

13

444 661

PLUG, PORT

2шт.

14

GEAR, REVERSE IDLER (SEE PG 07-074)

-29шт.

15

CLUTCH, RANGE (SEE PG 07-076)

-29шт.

16

1298 010 H91

BEARING, TAPERED ROLLER - OPTIONAL

1шт.

16

654 422 C91

BEARING, TAPERED ROLLER - OPTIONAL

1шт.

|$28

630 694 C91

CONE, BEARING

1шт.

|$29

630 695 C1

CUP, BEARING

1шт.

16

716 760 C91

BEARING, TAPERED ROLLER - OPTIONAL

1шт.

|$31

716 761 C91

CONE, BEARING

1шт.

|$32

716 762 C1

CUP, BEARING

1шт.

17

55 490 R91

BEARING, TAPERED ROLLER

1шт.

|$34

55 491 R91

CONE, BEARING

1шт.

|$35

55 492 R1

CUP, BEARING

1шт.

18

705 499 C1

MANIFOLD, RANGE CLUTCH

1шт.

|$37

259 246 R1

RING, SEAL

1шт.

19

716 840 C1

RING, SEAL - OPTIONAL

4шт.

19

716 747 C1

RING, SEAL - OPTIONAL

4шт.

20

705 492 C1

SHIM - 0.005IN

-2шт.

|$41

705 493 C1

SHIM - 0.007IN

-2шт.

|$42

705 494 C1

SHIM - 0.030IN

-2шт.

21

28 101 R1

RING, RETAINING

1шт.

22

716 979 C1

FITTING, ADAPTER

1шт.

|$45

301 016 R1

RING, SEAL

1шт.

23

709 798 C1

BAFFLE, SCAVENGE TUBE

1шт.

|$47

26 309 R1

BOLT, HEX - 3/8NCx3/4

3шт.

|$48

25 534 R1

WASHER, FLAT - 3/8

3шт.

|$$50

-1шт.

|$50

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$52

-1шт.

|$$53

-1шт.

|$53

F2 - PART OF TRANSMISSION SERVICE KIT 741 453 C93.

-1шт.

|$$55

-1шт.
