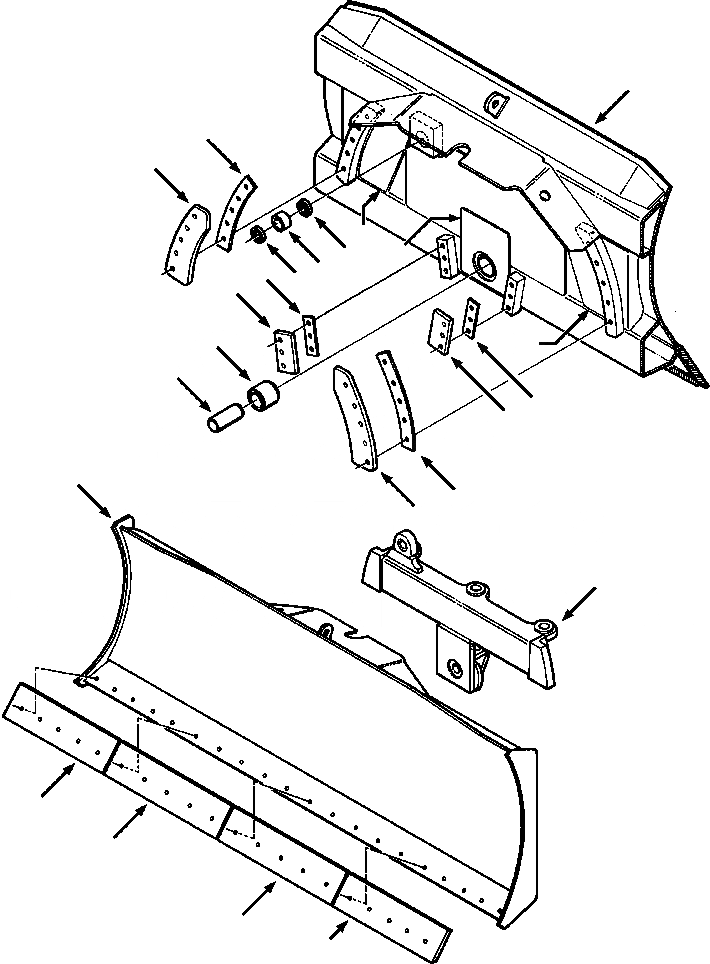

Запчасти Komatsu D38E-1 ОТВАЛ И ANGLING РАМА НИЗ. GROUND PRESSURE КРЕПЛЕНИЕED ОБОРУД-Е

|$0

1267 242 H95

BLADE AND ANGLING FRAME

1шт.

1

620 693 C2

PIN, BLADE TO ANGLING FRAME

1шт.

2

1267 333 H1

SHIM, LOWER RETAINER PLATE

-2шт.

3

1267 334 H1

PLATE LOWER RETAINER

2шт.

|$4

24 890 R1

BOLT, HEX - 3/4NCx2-1/2

6шт.

4

1267 332 H1

PLATE, UPPER RETAINER

2шт.

|$6

24 890 R1

BOLT, HEX - 3/4NCx2-1/2

10шт.

5

1267 331 H1

SHIM, UPPER RETAINER PLATE

-2шт.

6

FRAME, ANGLING (SEE PG 15-012)

-29шт.

|$9

1267 241 H94

BLADE ASSY, DOZER

1шт.

|$10

1267 243 H94

BLADE SUB ASSY

1шт.

7

NSS

BLADE, DOZER

1шт.

8

1282 813 H1

PLATE, WEAR

2шт.

9

1282 814 H1

PLATE, WEAR

1шт.

10

705 734 C1

BUSHING, PIN

1шт.

11

620 563 C1

EDGE, INNER CUTTING

2шт.

|$16

646 534 C1

BOLT, PLOW

10шт.

|$17

25 529 R1

NUT, HEX - 3/4NC

10шт.

12

1267 329 H1

EDGE, OUTER CUTTING

2шт.

|$19

646 534 C1

BOLT, PLOW

10шт.

|$20

25 529 R1

NUT, HEX - 3/4NC

10шт.

13

1268 300 H1

BEARING, NON-LUBE

1шт.

14

1268 301 H1

SEAL, PIN

2шт.

|$$24

-1шт.

|$24

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$26

-1шт.

|$$27

-1шт.

|$27

F2 - MINIMUM OF 1 SHIM TO A MAXIMUM OF 6 SHIMS LOCATED PER SIDE.

-1шт.

|$$29

-1шт.

|$$30

-1шт.

|$30

F3 - MINIMUM OF 2 SHIM TO A MAXIMUM OF 7 SHIMS LOCATED PER SIDE.

-1шт.

|$$32

-1шт.
