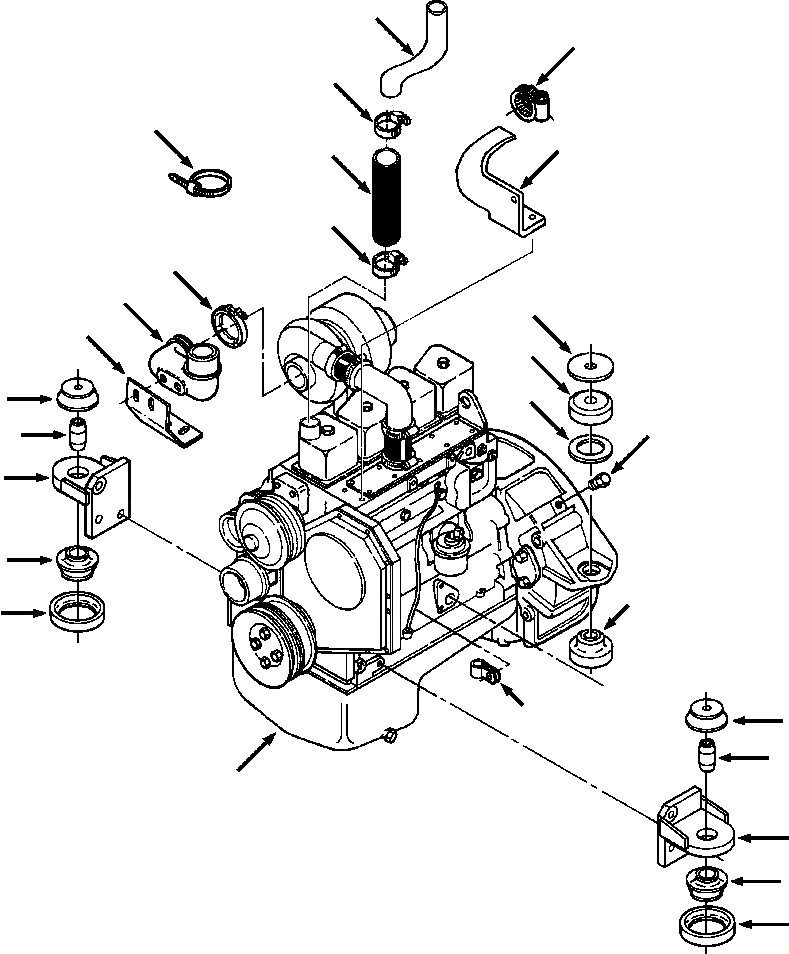

Запчасти Komatsu D38E-1 ДВИГАТЕЛЬ И КРЕПЛЕНИЕ POWER

|$0

1311 111 H91

ENGINE AND MOUNTING

-54шт.

1

1269 911 H91

BRACKET, LEFT FRONT ENGINE

1шт.

|$2

30 043 R1

BOLT, HEX - M12x35

3шт.

|$3

25 536 R1

WASHER, FLAT - 1/2

3шт.

2

1269 910 H91

BRACKET, RIGHT FRONT ENGINE

1шт.

|$5

30 043 R1

BOLT, HEX - M12x35

3шт.

|$6

25 536 R1

WASHER, FLAT - 1/2

3шт.

3

1277 978 H1

BUSHING, FRONT

4шт.

4

1282 265 H1

LIMITER, ENGINE

2шт.

|$9

25 285 R1

BOLT, HEX - 1/2NCx3-1/4

2шт.

|$10

25 546 R1

WASHER, FLAT - 1/2

2шт.

5

1284 656 H1

BUSHING, REAR

2шт.

6

1299 272 H1

SPACER, BUSHING

2шт.

7

1237 424 H1

WASHER, BUSHING

2шт.

|$14

24 881 R1

BOLT, HEX - 5/8NCx4

2шт.

|$15

25 547 R1

WASHER, FLAT - 5/8

2шт.

8

1311 384 H1

BRACKET, OIL FILL TUBE SUPPORT

1шт.

|$17

30 302 R1

BOLT, MOUNTING - M10x25

2шт.

|$18

25 534 R1

WASHER, FLAT - 3/8

2шт.

9

1311 383 H1

TUBE, OIL FILL

1шт.

10

HOSE - 3IN LONG

1шт.

11

27 725 R1

CLIP, CLOSED

3шт.

12

645 272 C1

CLAMP, DIPSTICK

1шт.

|$23

25 222 R1

BOLT, HEX - 1/4NCx3/4

1шт.

|$24

25 532 R1

WASHER, FLAT - 1/4

2шт.

|$25

25 519 R1

NUT, HEX - 1/4NC

1шт.

13

935 522 C1

STRAP, CABLE

2шт.

14

9410 359

PLUG, HOUSING

1шт.

15

1282 183 H1

SPACER, FRONT MOUNTING

2шт.

16

1281 792 H1

ELBOW, TURBO OUTLET

1шт.

17

6732-81-8220

CLAMP, V BAND

1шт.

18

1311 114 H1

BRACKET, TURBO ELBOW

1шт.

|$32

30 020 R1

BOLT, HEX - M10x25

4шт.

|$33

25 534 R1

WASHER, FLAT - 3/8

4шт.

19

ENGINE - S4D102E-1 (SEE PG 12-122)

-29шт.

|$$36

-1шт.

|$36

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$38

-1шт.

|$$39

-1шт.

|$39

F2 - CUT REQUIRED LENGTH FROM BULK HOSE 4011 329 R1.

-1шт.

|$$41

-1шт.
