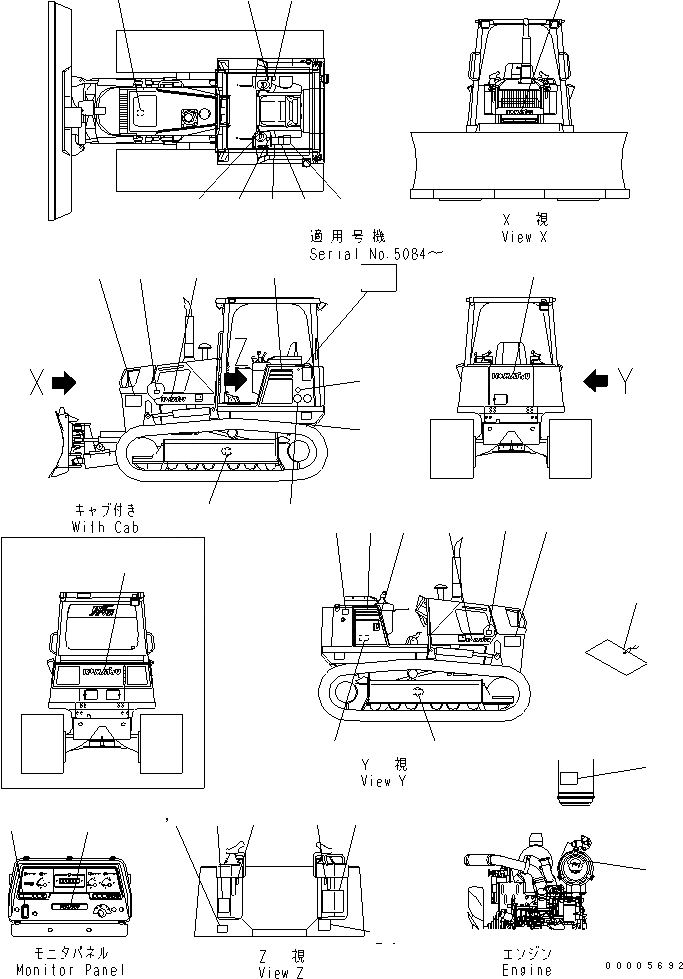

Запчасти Komatsu D37PX-21 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА

1

11Y-98-12150

PLATE¤ MARK,D37PX¤ L.H.

SN: 5001-UP

1шт.

2

11Y-98-12160

PLATE¤ MARK,D37PX¤ R.H.

SN: 5001-UP

1шт.

3

11Y-98-12190

PLATE¤ MARK

SN: 5001-UP

1шт.

4

11Y-98-12310

PLATE¤ MARK,KOMATSU¤ FRONT

SN: 5001-UP

1шт.

5

11Y-98-12320

PLATE¤ MARK,KOMATSU¤ REAR

SN: 5001-UP

1шт.

6

09690-F0355

PLATE¤ MARK,KOMATSU¤ SIDE

SN: 5001-UP

2шт.

7

09601-10001

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 5124-UP

1шт.

|7

09601-10000

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 5001-5123

1шт.

8

04418-13060

SCREW

SN: 5001-UP

4шт.

9

11Y-98-11140

OIL CHART

SN: 5001-UP

1шт.

10

14X-98-11170

PLATE¤ OPERATING,LOCK

SN: 5001-UP

2шт.

11

124-98-51140

PLATE¤ OPERATING,WORK EQUIPMENT

SN: 5001-UP

1шт.

12

09637-01163

PLATE¤ INSTRUCTION

SN: 5001-UP

1шт.

13

09654-B0480

PLATE¤ SAFETY,AFTER OPERATING

SN: 5001-UP

1шт.

14

09657-A0880

PLATE¤ SAFETY,ADJUSTMENT OF TRACK TENSION

SN: 5001-UP

2шт.

15

09653-A0480

PLATE¤ SAFETY,HOT WATER WARNING

SN: 5001-UP

1шт.

16

09651-A0480

PLATE¤ SAFETY,BEFORE OPERATING

SN: 5001-UP

1шт.

17

09653-A0480

PLATE¤ SAFETY,HOT OIL WARNING

SN: 5001-UP

1шт.

18

09667-A0480

PLATE¤ SAFETY,REVOLUTION

SN: 5001-UP

2шт.

19

11Y-98-11190

PLATE¤ OPERATING

SN: 5091-UP

1шт.

|19

11Y-98-11110

PLATE¤ OPERATING,STEERING

SN: 5001-5090

1шт.

20

11Y-98-11120

PLATE¤ MARK,NEUTRAL

SN: 5001-UP

1шт.

21

09802-10100

PLATE¤ SAFETY,BEFORE DRIVING

SN: 5001-UP

1шт.

22

09806-B1200

PLATE¤ SAFETY,KEEP A SAFE DISTANCE

SN: 5001-UP

2шт.

23

09808-A0880

PLATE¤ SAFETY,BATTERY CABLE

SN: 5001-UP

1шт.

24

09963-00101

TAG,DO NOT OPERATE

SN: 5001-UP

1шт.

25

11Y-98-11150

PLATE¤ MARK,MACHINE SLING POSITION

SN: 5001-UP

1шт.

26

17A-98-11180

PLATE,HORN

SN: 5001-UP

1шт.

27

09690-C0063

PLATE¤ MARK,KOMATSU

SN: 5001-UP

1шт.

28

11Y-98-11130

PLATE¤ OPERATING,LIGHT

SN: 5001-UP

1шт.

29

600-181-1930

PLATE¤ INSTRUCTION,COUNT STICKER FOR AIR CLEANER

SN: 5001-UP

1шт.

30

09690-M0063

PLATE¤ MARK,KOMATSU

SN: 5001-UP

1шт.

31

11Y-98-12440

PLATE,SPECIFICATION (FOR JAPAN)

SN: 5001-UP

1шт.

32

0

PLATE,EXHAUST GAS

SN: 5001-UP

1шт.

33

09968-00090

PLATE,SHIFT PATTERN

SN: 5001-UP

1шт.

34

09669-0000E

PLATE¤ CAUTION

SN: 5084-UP

1шт.
