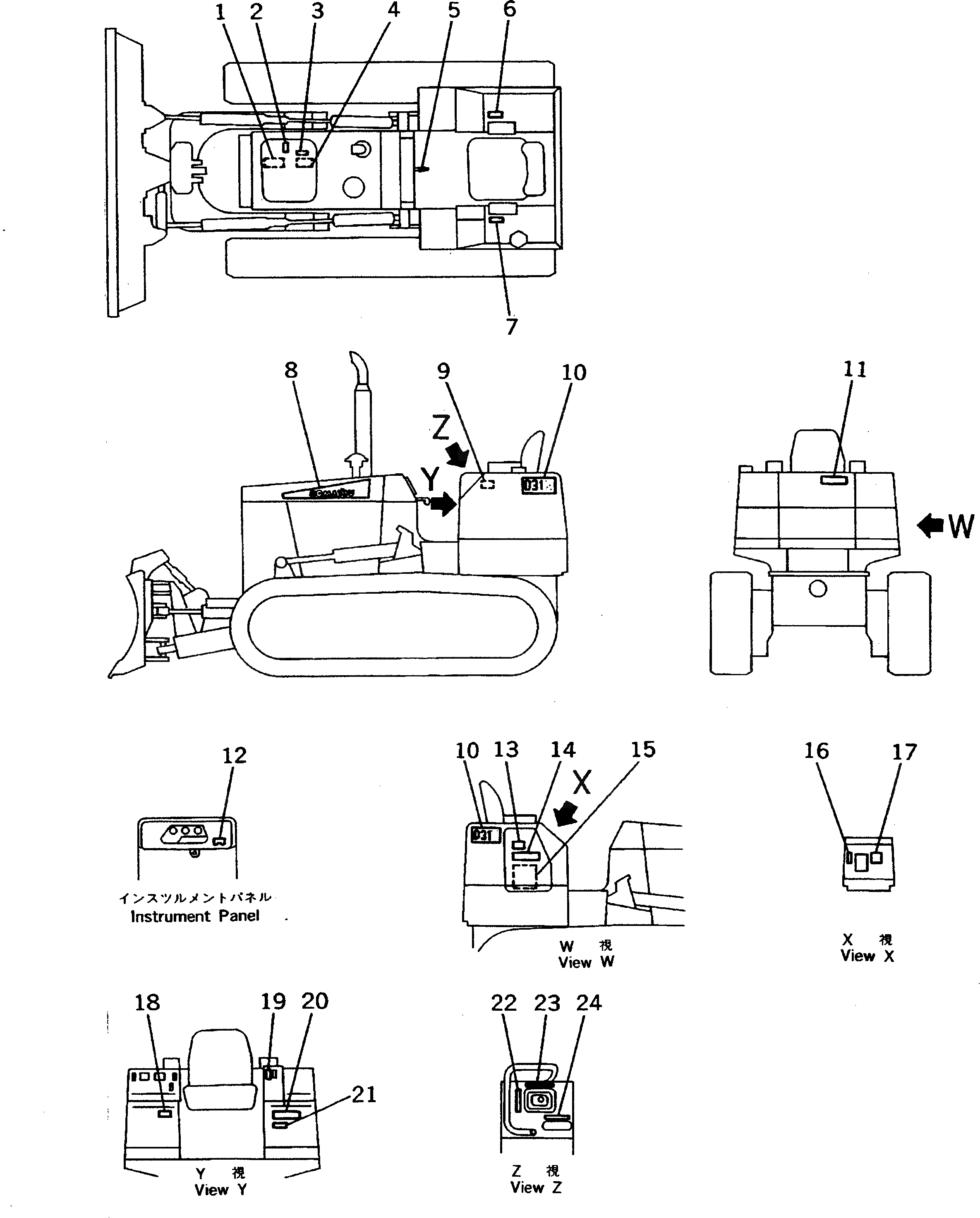

Запчасти Komatsu D37P-5A МАРКИРОВКА (ФРАНЦИЯ)(№-) МАРКИРОВКА

1

09637-30262

PLATE, INSTRUCTION,AIR CLEANER

SN: 3001-@

1шт.

2

09667-05000

PLATE, SAFETY,ENGINE ROOM

SN: 3001-@

1шт.

3

09668-05000

PLATE, SAFETY,RADIATOR WARNING

SN: 3001-@

1шт.

4

09650-52103

PLATE, INSTRUCTION,RADIATOR

SN: 3001-3660

1шт.

5

114-98-44250

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 3001-@

1шт.

6

09651-05000

PLATE, SAFETY,BEFORE OPERATING

SN: 3001-@

1шт.

7

09652-51101

PLATE, CAUTION,FUEL TANK

SN: 3001-@

1шт.

8

114-98-44420

PLATE, MARK,KOMATSU, L.H.

SN: 3001-@

1шт.

8

114-98-44430

PLATE, MARK,KOMATSU, R.H.

SN: 3001-@

1шт.

9

09602-51635

PLATE, NAME,(LIMITED SUPPLY)

SN: 3001-@

1шт.

9

04418-13060

SCREW

SN: 3001-@

4шт.

10

11G-98-42971

PLATE, MARK,D37P

SN: 3001-@

2шт.

11

09690-C0224

PLATE, MARK,KOMATSU

SN: 3001-3660

1шт.

12

09683-51060

PLATE, OPERATING,STARTING SWITCH

SN: 3001-@

1шт.

13

09653-05000

PLATE, SAFETY,HYDRAULIC TANK

SN: 3001-@

1шт.

14

103-98-21451

PLATE, CAUTION,HYDRAULIC FILTER

SN: 3001-@

1шт.

15

114-98-43431

CHART, OIL

SN: 3001-3660

1шт.

16

114-98-44250

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 3001-@

1шт.

17

114-54-48611

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 3001-3660

1шт.

18

09173-05000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 3001-@

1шт.

19

114-98-44250

PLATE, OPERATING,T/M CONTROL LEVER LOCK

SN: 3001-@

1шт.

20

09657-05011

PLATE, SAFETY,TRACK ADJUSTING

SN: 3001-@

1шт.

21

114-98-44530

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 3001-@

1шт.

22

114-98-44170

PLATE, OPERATING,STEERING CONTROL LEVER

SN: 3001-@

1шт.

23

114-98-44180

PLATE, OPERATING,STEERING CONTROL LEVER

SN: 3001-@

1шт.

24

114-98-44220

PLATE, OPERATING,GEAR SHIFT CONTROL LEVER

SN: 3001-@

1шт.
