Артикул
Название
Примечание
Количество
|$1
114-15-00036
TRANSMISSION ASS'Y
SN: 3731-UP
1шт.
|$2
114-15-00035
TRANSMISSION ASS'Y
SN: 3086-3730
1шт.
|$3
0
TRANSMISSION ASS'Y
SN: 3001-3085
1шт.
|$$4

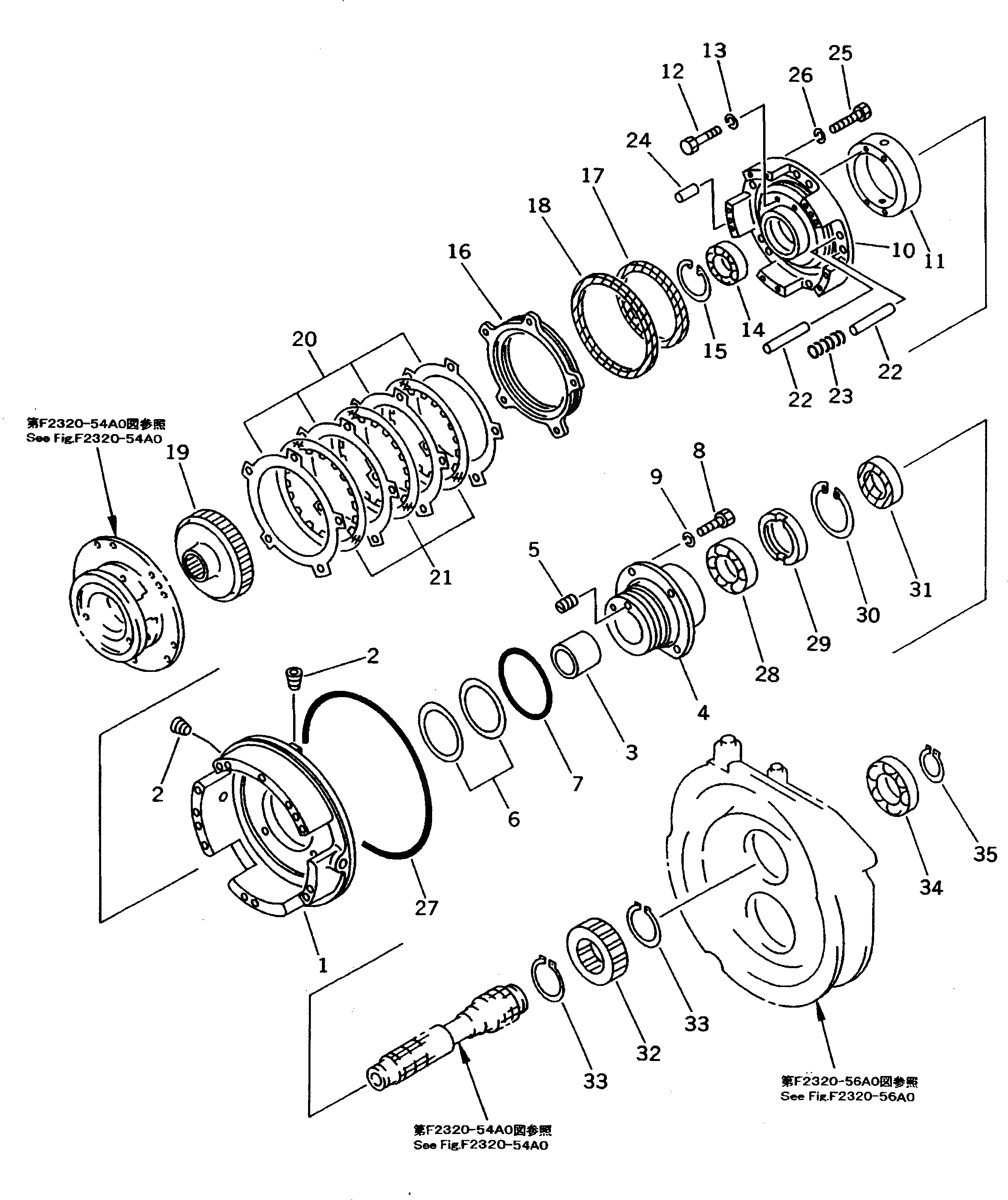

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0.
-1шт.
|$5
114-15-51010
TRANSMISSION ASS'Y
SN: 3731-UP
1шт.
|$6
114-15-00511
TRANSMISSION ASS'Y
SN: 3086-3730
1шт.
|$7
0
TRANSMISSION ASS'Y
SN: 3001-3085
1шт.
|$$8
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0.
-1шт.
|$9
113-15-00410
HOUSING ASS'Y,1ST
SN: 3001-UP
1шт.
1
0
HOUSING
SN: 3001-UP
1шт.
3
113-15-22160
SPACER
SN: 3001-UP
1шт.
|$13
113-15-00220
CAGE ASS'Y
SN: 3001-UP
1шт.
4
0
CAGE
SN: 3001-UP
1шт.
6
07018-20954
RING,SEAL
SN: 3001-UP
2шт.
10
113-15-32340
HOUSING
SN: 3001-UP
1шт.
11
113-15-32390
COLLAR
SN: 3001-UP
1шт.
16
113-15-32780
PISTON,1ST
SN: 3001-UP
1шт.
17
113-15-39210
RING,SEAL (K1)
SN: 3001-UP
1шт.
19
113-15-32270
HUB
SN: 3001-UP
1шт.
20
113-15-22750
PLATE
SN: 3001-UP
4шт.
21
103-15-32711
DISC
SN: 3001-UP
3шт.
22
113-15-31280
PIN
SN: 3001-UP
10шт.
23
113-15-22920
SPRING
SN: 3001-UP
5шт.
25
01010-80855
BOLT
SN: 3001-UP
10шт.
28
103-15-12940
BEARING,BALL
SN: 3001-3730
1шт.
31
07012-10048
SEAL,OIL (K1)
SN: 3001-UP
1шт.
32
113-15-33210
GEAR, 21 TEETH
SN: 3001-UP
1шт.
Выбрано товаров: 46
