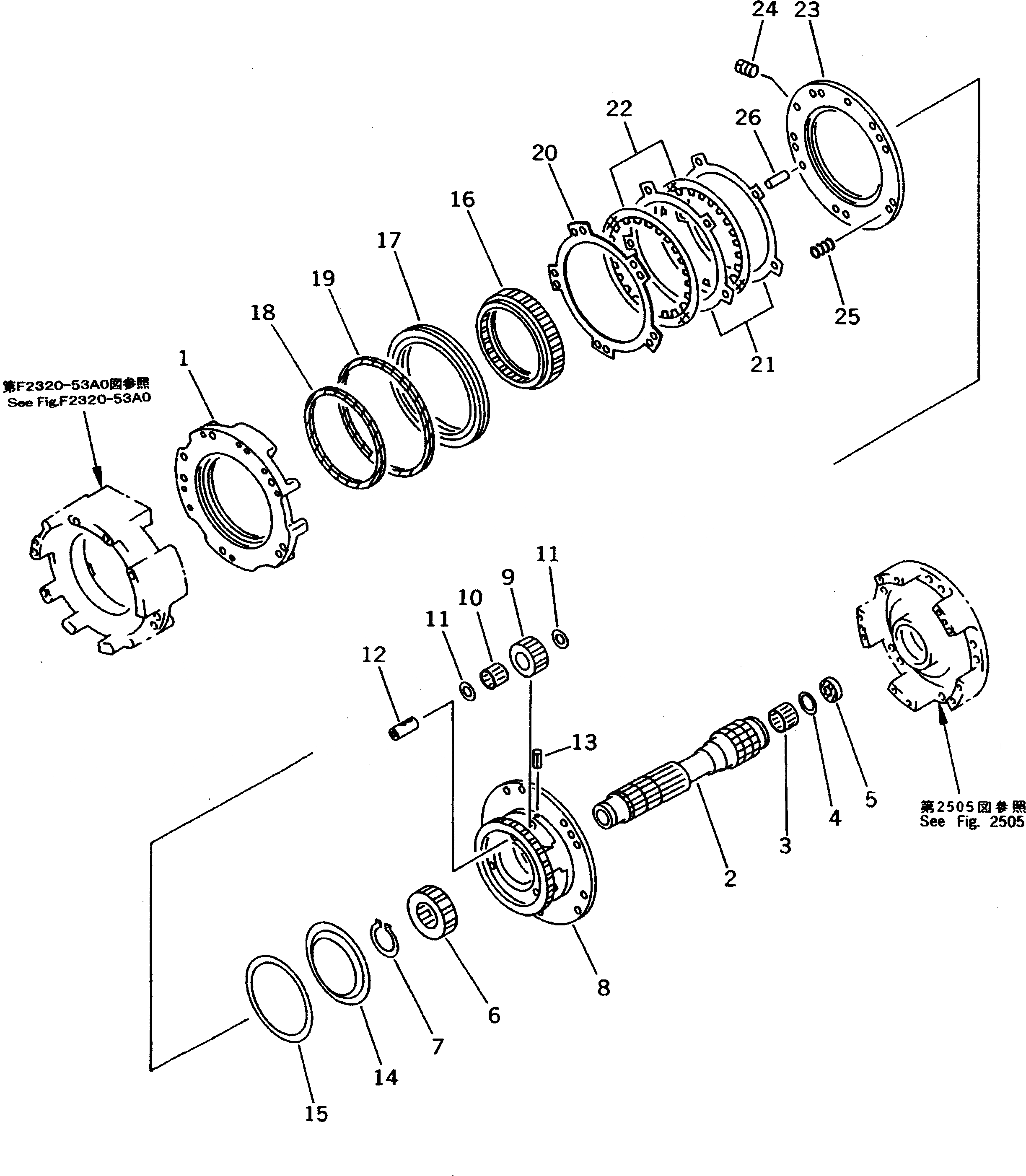

Запчасти Komatsu D37E-5 ТРАНСМИССИЯ (2 КОЖУХ) (/7) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$1

114-15-00036

TRANSMISSION ASS'Y

SN: 3731-UP

1шт.

|$2

114-15-00035

TRANSMISSION ASS'Y

SN: 3086-3730

1шт.

|$3

0

TRANSMISSION ASS'Y

SN: 3001-3085

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0.

-1шт.

|$5

114-15-51010

TRANSMISSION ASS'Y

SN: 3731-UP

1шт.

|$6

114-15-00511

TRANSMISSION ASS'Y

SN: 3086-3730

1шт.

|$7

0

TRANSMISSION ASS'Y

SN: 3001-3085

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0.

-1шт.

1

113-15-21151

HOUSING,2ND

SN: 3001-UP

1шт.

2

113-15-32121

SHAFT

SN: 3001-UP

1шт.

3

113-15-29440

BEARING,NEEDLE

SN: 3001-UP

1шт.

4

113-15-29520

RING,SNAP

SN: 3001-UP

1шт.

5

113-15-39120

SEAL,OIL (K1)

SN: 3001-UP

1шт.

6

113-15-22231

GEAR, 36 TEETH

SN: 3001-UP

1шт.

7

04064-04018

RING,SNAP

SN: 3001-UP

1шт.

8

113-15-32331

CARRIER

SN: (2727)-UP

1шт.

8

113-15-32330

CARRIER

SN: 3001-(2726)

1шт.

9

113-15-22421

GEAR

SN: 3001-UP

3шт.

10

113-15-29410

BEARING,NEEDLE

SN: 3001-UP

3шт.

11

113-15-32560

WASHER,THRUST

SN: 3001-UP

6шт.

12

113-15-22510

SHAFT

SN: 3001-UP

3шт.

13

113-15-29560

PIN,SPRING

SN: 3001-UP

3шт.

14

113-15-22380

COVER

SN: 3001-UP

1шт.

15

113-15-22930

RING,SNAP

SN: 3001-UP

1шт.

16

113-15-22640

GEAR,RING

SN: 3001-UP

1шт.

17

113-15-22760

PISTON,2ND

SN: 3001-UP

1шт.

18

113-15-29220

RING,SEAL (K1)

SN: 3001-UP

1шт.

19

113-15-29250

RING,SEAL (K1)

SN: 3001-UP

1шт.

20

113-15-22720

PLATE

SN: 3001-UP

1шт.

21

113-15-22730

PLATE

SN: 3001-UP

2шт.

22

113-15-42711

DISC

SN: 3001-UP

2шт.

|$32

104-15-00640

PLATE ASS'Y

SN: 3001-UP

1шт.

23

0

PLATE

SN: 3001-UP

1шт.

24

113-15-25490

PLUG

SN: 3001-UP

1шт.

25

113-15-32910

SPRING

SN: 3001-UP

5шт.

26

113-15-21290

PIN,DOWEL

SN: 3001-UP

2шт.
