Артикул
Название
Примечание
Количество
|$1
114-15-00036
TRANSMISSION ASS'Y
SN: 3731-UP
1шт.
|$2
114-15-00035
TRANSMISSION ASS'Y
SN: 3086-3730
1шт.
|$3
0
TRANSMISSION ASS'Y
SN: 3001-3085
1шт.
|$$4

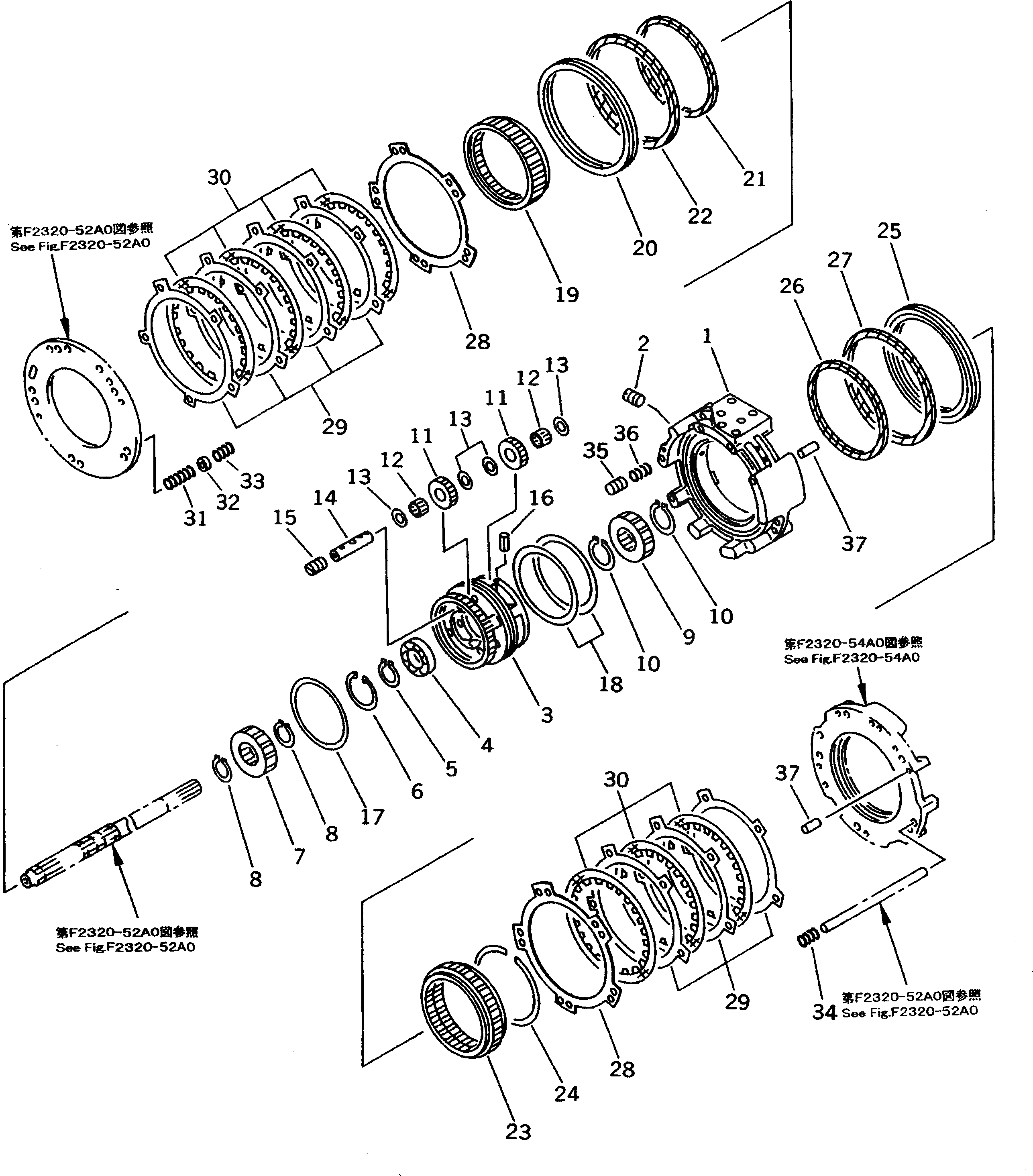

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0.
-1шт.
|$5
114-15-51010
TRANSMISSION ASS'Y
SN: 3731-UP
1шт.
|$6
114-15-00511
TRANSMISSION ASS'Y
SN: 3086-3730
1шт.
|$7
0
TRANSMISSION ASS'Y
SN: 3001-3085
1шт.
|$$8
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0.
-1шт.
|$9
113-15-00230
HOUSING ASS'Y,FORWARD AND 3RD
SN: 3001-UP
1шт.
1
0
HOUSING
SN: 3001-UP
1шт.
3
113-15-42321
CARRIER
SN: (2727)-UP
1шт.
3
113-15-42320
CARRIER
SN: 3001-(2726)
1шт.
7
113-15-22221
GEAR, 36 TEETH
SN: 3001-UP
1шт.
8
113-15-22950
RING,SNAP
SN: 3001-UP
2шт.
9
113-15-22231
GEAR, 36 TEETH
SN: 3001-UP
1шт.
11
113-15-22421
GEAR
SN: 3001-UP
8шт.
13
113-15-32560
WASHER,THRUST
SN: 3001-UP
16шт.
|$24
113-15-00460
SHAFT ASS'Y
SN: 3001-UP
4шт.
14
0
SHAFT
SN: 3001-UP
1шт.
16
113-15-29560
PIN,SPRING
SN: 3001-UP
4шт.
19
113-15-22620
GEAR,RING
SN: 3658-UP
1шт.
19
113-15-22650
GEAR,RING
SN: 3001-3657
1шт.
20
113-15-22771
PISTON,FORWARD
SN: 3001-UP
1шт.
23
113-15-22632
RING GEAR
SN: (2727)-UP
1шт.
23
113-15-22631
GEAR,RING
SN: 3001-(2726)
1шт.
24
113-15-29510
RING,SNAP
SN: 3001-UP
1шт.
25
113-15-22760
PISTON,3RD
SN: 3001-UP
1шт.
30
113-15-42711
DISC
SN: 3001-UP
7шт.
31
113-15-42910
SPRING
SN: 3001-UP
5шт.
32
362-15-12810
GUIDE
SN: 3001-UP
5шт.
33
113-15-42920
SPRING
SN: 3001-UP
5шт.
34
113-15-22920
SPRING
SN: 3001-UP
5шт.
