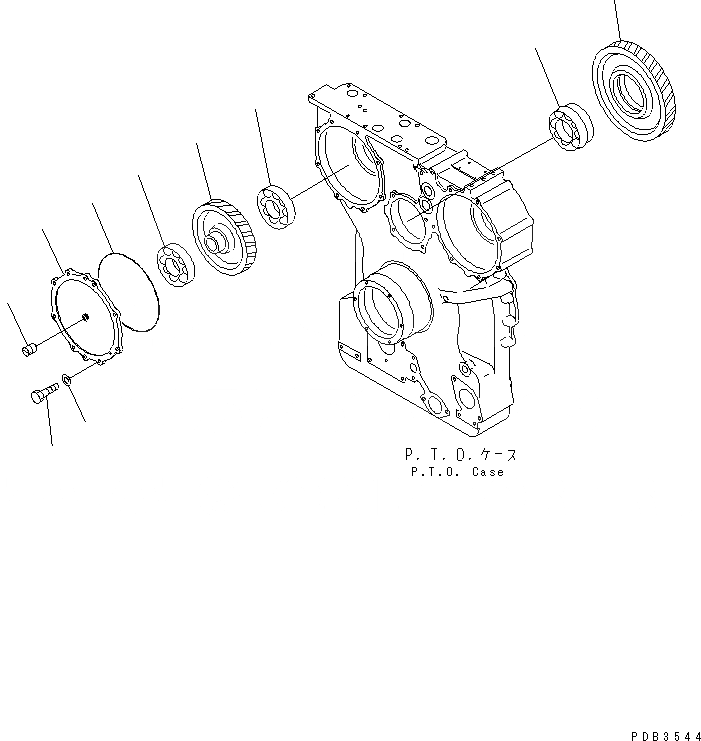

Запчасти Komatsu D375A-5D ТРАНСМИССИЯ (/8)¤ BARE СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$$1

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-64A0.

-1шт.

|$2

195-15-51072

TRANSMISSION ASS'Y,(B)

SN: 17743-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-64A1.

-1шт.

1

195-15-43140

COLLAR

SN: 17743-UP

1шт.

2

145-15-42810

RING,SEAL (K2)

SN: 17743-UP

1шт.

3

01252-41240

BOLT

SN: 17743-UP

4шт.

4

01602-21236

WASHER,SPRING

SN: 17743-UP

4шт.

5

195-15-42843

HOUSING COMPLETE,COMPLETE

SN: 17743-UP

1шт.

6

145-15-42820

RING,SEAL (K2)

SN: 17743-UP

1шт.

7

195-15-49210

RING,SEAL (K2)

SN: 17743-UP

1шт.

8

195-15-42733

PISTON

SN: 17743-UP

1шт.

9

195-15-42951

SPRING

SN: 17743-UP

3шт.

10

195-15-41211

SPACER

SN: 17743-UP

1шт.

11

04070-00190

RING,SNAP

SN: 17743-UP

1шт.

12

04071-00160

RING,SNAP

SN: 17743-UP

1шт.

13

424-15-12711

DISC

SN: 17743-UP

6шт.

14

195-15-42850

PLATE

SN: 17743-UP

5шт.

15

287-15-12920

SPRING

SN: 17743-UP

6шт.

16

195-15-42690

GEAR,RING

SN: 17743-UP

1шт.

17

01010-61445

BOLT

SN: 17743-UP

15шт.

18

01643-31445

WASHER

SN: 17743-UP

15шт.

19

425-15-19270

RING,SEAL

SN: 17743-UP

2шт.

|$1

711-60-22070

TORQUE CONVERTER A.,(B)

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51A1 TO F2310-59A1.

|$4

711-60-26701

VALVE ASS'Y

|$5

711-60-00340

BODY ASS'Y

1

BODY

2

07042-80108

PLUG

3

711-60-26771

COVER

4

07000-72055

O-RING (K1)

5

01010-81045

BOLT

6

01643-51032

WASHER

7

711-60-26640

SPRING

8

711-60-26650

SPRING

9

203-57-21320

SHIM, 0.5MM (K1)

10

711-60-26621

SPOOL

11

711-60-26680

VALVE

12

427-15-16130

SPRING

13

711-60-26670

VALVE

14

01252-71030

BOLT

15

01643-51032

WASHER

16

711-60-26710

PLATE

17

07000-73045

O-RING (K1)

18

01010-81040

BOLT

19

01643-51032

WASHER

20

427-15-15480

VALVE

21

427-15-16130

SPRING

22

427-15-15490

VALVE

23

711-60-26720

SPOOL

24

711-60-26780

SPRING

|$30

711-60-00350

PLATE ASS'Y

25

PLATE

26

07043-70108

PLUG

27

01252-71030

BOLT

28

01643-51032

WASHER

29

141-27-31280

WASHER

30

711-60-26910

GASKET (K1)

31

01011-81010

BOLT

32

01643-31032

WASHER
