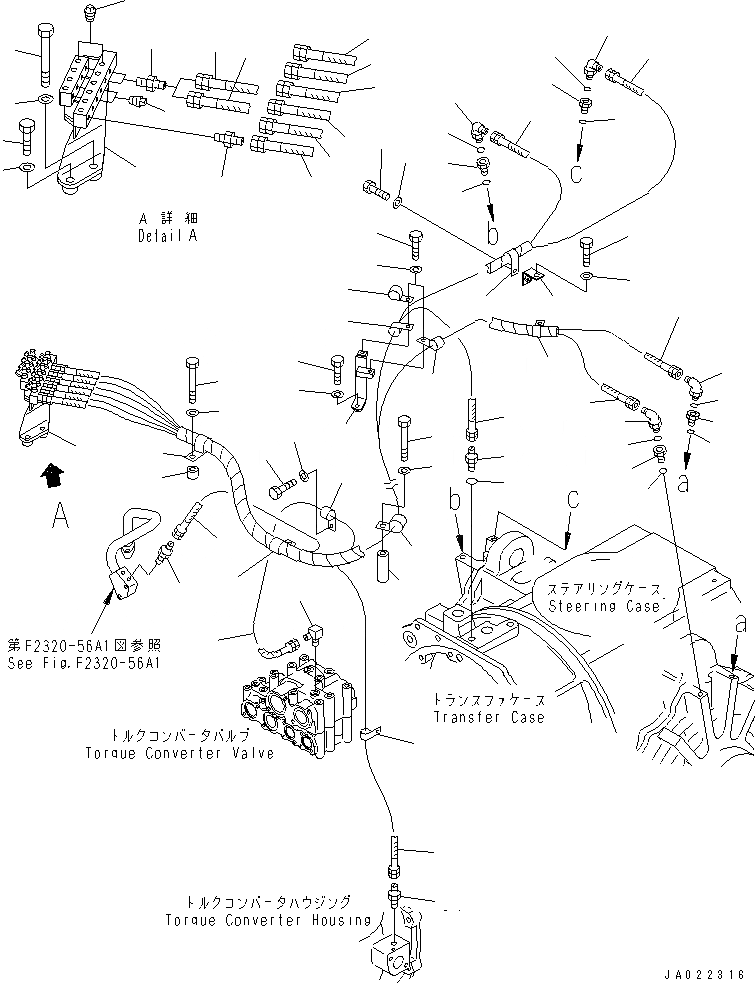

Запчасти Komatsu D375A-5D СИЛОВАЯ ПЕРЕДАЧА (/)¤ СИЛОВАЯ ПЕРЕДАЧА КРЕПЛЕНИЕ СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$$1

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A0 TO F2300-60A0.

-1шт.

|$2

195-00-00533

POWER TRAIN ASS'Y,(B)

SN: 17743-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A2 TO F2300-64A2.

-1шт.

1

195-21-32311

BRACKET

SN: 17743-UP

1шт.

2

195-21-32320

CAP

SN: 17743-UP

2шт.

3

195-01-32110

CUSHION

SN: 17743-UP

4шт.

4

195-01-32120

CUSHION

SN: 17743-UP

2шт.

5

195-01-32130

CUSHION

SN: 17743-UP

2шт.

6

195-01-31130

PLATE

SN: 17743-UP

2шт.

7

01010-61435

BOLT

SN: 17743-UP

4шт.

8

01643-31445

WASHER

SN: 17743-UP

4шт.

9

195-21-32341

BUSHING

SN: 17743-UP

2шт.

10

195-21-32361

CUSHION

SN: 17743-UP

2шт.

11

195-21-32540

FLANGE

SN: 17743-UP

2шт.

12

01010-81230

BOLT

SN: 17743-UP

18шт.

13

195-22-12430

SHAFT

SN: 17743-UP

2шт.

14

195-22-12570

BUTTON

SN: 17743-UP

2шт.

15

195-22-12580

BUTTON

SN: 17743-UP

2шт.

|$1

195-00-00533

POWER TRAIN ASS'Y,(B)

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A2 TO F2300-64A2.

1

195-49-36411

BLOCK

2

07042-00108

PLUG

3

203-62-21740

NIPPLE

4

01010-81245

BOLT

5

01011-81220

BOLT

6

01643-31232

WASHER

|$10

195-49-43130

HOSE ASS'Y

7

17A-49-17151

HOSE, 1450MM

8

17A-49-17510

HOSE, 1300MM

9

195-49-36431

HOSE, 800MM

10

195-49-36450

HOSE

11

195-49-36460

HOSE, 2400MM

12

195-49-36470

HOSE, 2500MM

13

195-49-36480

HOSE, 2600MM

14

113-899-7950

CLIP

15

195-33-11220

SPACER

16

01011-81225

BOLT

17

01643-31232

WASHER

18

08036-03014

CLIP

19

195-01-16260

COLLAR

20

01011-81020

BOLT

21

01643-31032

WASHER

22

17M-43-21151

BRACKET

23

01010-81040

BOLT

24

01643-31032

WASHER

25

08036-01814

CLIP

26

01010-81020

BOLT

27

01643-31032

WASHER

28

08036-00814

CLIP

29

202-62-21430

ELBOW

30

21T-38-11390

BUSHING

31

203-62-21740

NIPPLE

32

17M-06-21280

ADAPTER

33

07042-30108

PLUG

34

08036-01014

CLIP

35

01010-81025

BOLT

36

01643-31032

WASHER

37

17M-49-15260

BRACKET

38

01010-81255

BOLT

39

01643-31232

WASHER

40

01010-81225

BOLT

41

01643-31232

WASHER
