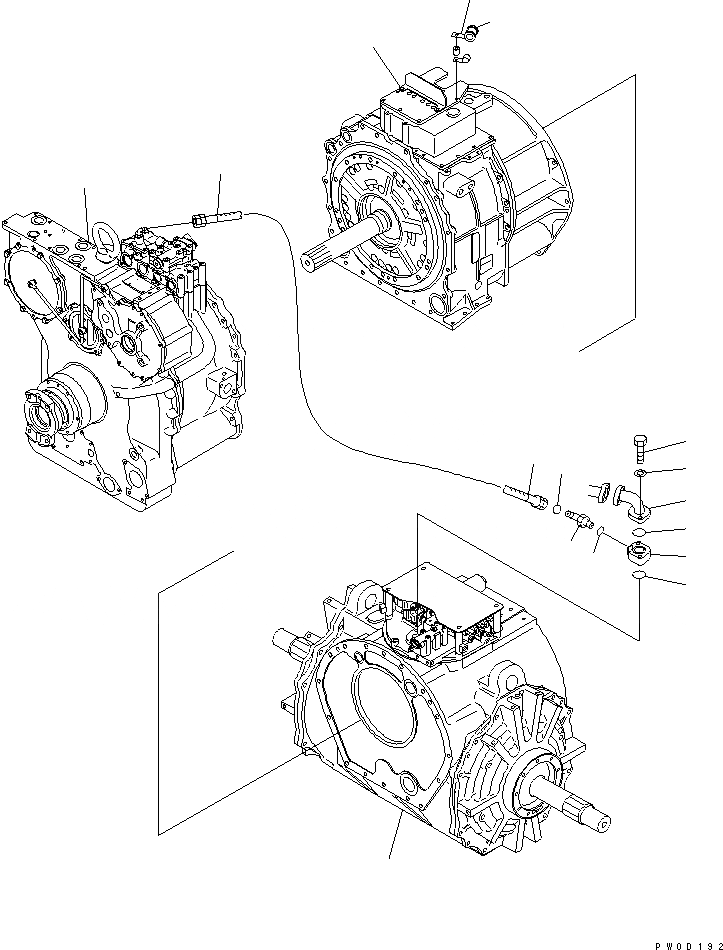

Запчасти Komatsu D375A-5 СИЛОВАЯ ПЕРЕДАЧА (/)¤ ШЛАНГИ СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$2

195-00-00550

POWER TRAIN ASS'Y

SN: 18001-UP

1шт.

|$3

195-00-00560

POWER TRAIN ASS'Y,(WITH HEATER)

SN: 18001-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A0 TO F2300-60A0.

-1шт.

|$$4

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

1

195-13-71001

TORQUE CONVERTER A.

SN: (104719)-UP

1шт.

1

195-13-71000

TORQUE CONVERTER A.

SN: 18001-(104718)

1шт.

|$$7

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

2

195-15-71001

TRANSMISSION ASS'Y

SN: (107731)-UP

1шт.

2

195-15-71000

TRANSMISSION ASS'Y

SN: 18001-(107730)

1шт.

|$$10

SERIAL NO. IN ( ) INDICATES STEERING SERIAL NO.

-1шт.

3

195-22-71002

STEERING ASS'Y

SN: (153896)-UP

1шт.

3

0

STEERING ASS'Y

SN: (153627)-(153895)

1шт.

|$$13

(195-22-81310(4),07002-62034(4))

-1шт.

3

195-22-71000

STEERING ASS'Y

SN: 18001-(107730)

1шт.

|$$15

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

4

195-22-78111

BLOCK

SN: 18001-UP

1шт.

5

02782-10422

ELBOW

SN: 18001-UP

1шт.

6

02896-11012

O-RING

SN: 18001-UP

1шт.

7

07002-12034

O-RING

SN: 18001-UP

1шт.

8

02762-00411

HOSE

SN: 18001-UP

1шт.

9

195-49-37180

ELBOW

SN: 18001-UP

1шт.

10

07000-73048

O-RING

SN: 18001-UP

2шт.

11

01010-81275

BOLT

SN: 18001-UP

2шт.

12

01643-31232

WASHER

SN: 18001-UP

2шт.

13

04434-52711

CLIP

SN: 18001-UP

1шт.

14

07095-20418

CUSHION

SN: 18001-UP

1шт.
