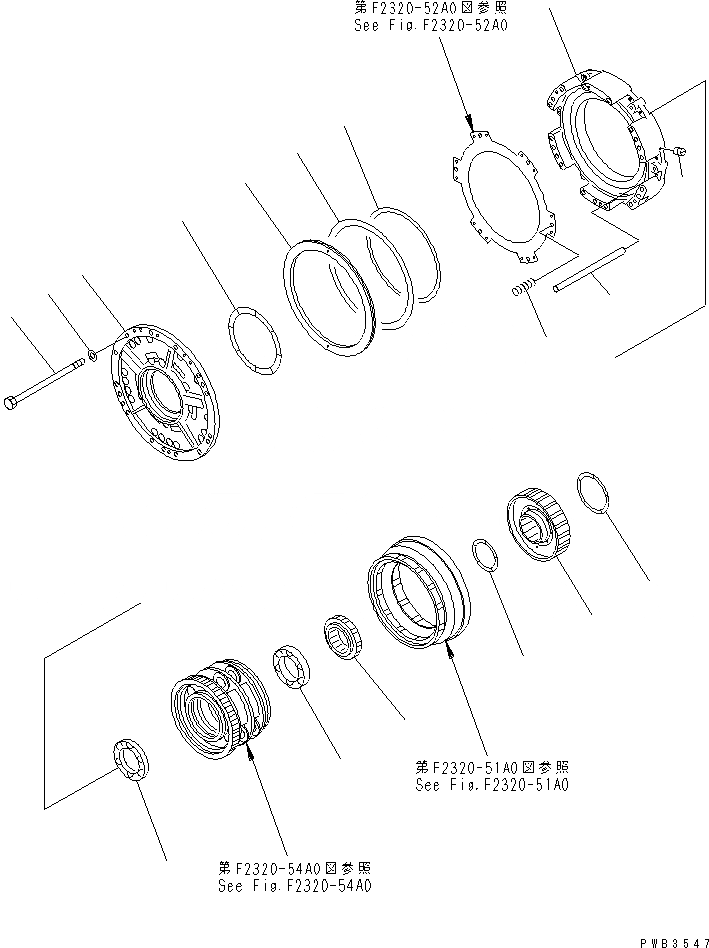

Запчасти Komatsu D375A-3D ТРАНСМИССИЯ (/8)¤ КОЖУХ (/) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$8

195-15-03012

TRANSMISSION ASS'Y,(B)

SN: 17261-UP

1шт.

|$9

195-15-03011

TRANSMISSION ASS'Y

SN: 5752-17260

1шт.

|$10

0

TRANSMISSION ASS'Y

SN: 17001-(5751)

1шт.

|$11

195-15-51072

TRANSMISSION ASS'Y

SN: 17555-UP

1шт.

|$12

195-15-51071

TRANSMISSION ASS'Y

SN: 17261-17554

1шт.

|$13

195-15-51070

TRANSMISSION ASS'Y,(B)

SN: 17001-17260

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0.

-1шт.

|$15

195-15-51003

TRANSMISSION ASS'Y,FOR SEVEN TRACK ROLLER

SN: 17501-UP

1шт.

|$$10

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO 55A0, 56A2, AND 57A0 TO 62A0.

-1шт.

|$18

195-15-03030

HOUSING ASS'Y

SN: 17001-UP

1шт.

1

0

HOUSING

SN: 17001-UP

1шт.

2

145-14-11320

PLUG

SN: 17001-UP

2шт.

3

175-15-59240

RING,SEAL (K3)

SN: 17001-UP

1шт.

4

155-15-12820

RING,SEAL (K3)

SN: 17001-UP

1шт.

5

195-15-42771

PISTON

SN: 17001-UP

1шт.

6

175-15-42781

SPRING

SN: 17001-UP

12шт.

7

195-15-41174

HOUSING

SN: (5752)-UP

1шт.

7

195-15-41173

HOUSING

SN: 17001-(5751)

1шт.

8

195-15-41251

BOLT

SN: 17001-UP

17шт.

9

195-15-11290

WASHER

SN: 17001-UP

17шт.

10

175-15-59292

RING,SEAL

SN: 17001-UP

1шт.

11

195-15-41290

PIN

SN: 17001-UP

12шт.

12

195-15-42271

HUB

SN: 17001-UP

1шт.

13

195-15-49250

RING,SEAL

SN: 17001-UP

1шт.

14

195-15-49230

RING,SEAL

SN: 17001-UP

1шт.

15

06000-06924

BEARING

SN: 17001-UP

1шт.

16

06000-06924

BEARING

SN: 17001-UP

1шт.

17

195-15-42290

GEAR

SN: 17001-UP

1шт.
