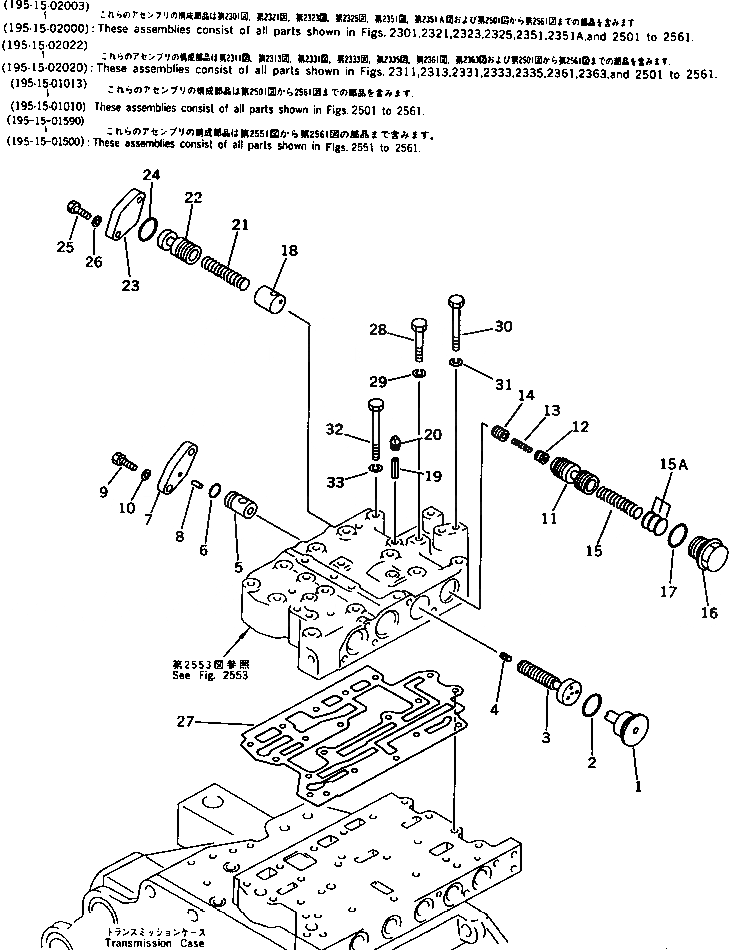

Запчасти Komatsu D375A-1 КЛАПАН ТРАНСМИССИИ (/) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

195-15-02003

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01254)-15465

1шт.

|$1

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01194)-(01253)

1шт.

|$2

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15005-(01193)

1шт.

|$3

195-15-02000

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15001-15004

1шт.

|$4

195-15-02022

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01060)-(01110)

1шт.

|$5

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01009)-(01059)

1шт.

|$6

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: 15001-(01008)

1шт.

|$7

195-15-01013

TRANSMISSION ASS'Y

SN: (03612)-UP

1шт.

|$8

0

TRANSMISSION ASS'Y

SN: 15466-(03611)

1шт.

|$9

0

TRANSMISSION ASS'Y

SN: (02437)-15465

1шт.

|$10

0

TRANSMISSION ASS'Y

SN: 15001-(02436)

1шт.

|$11

195-15-01590

CONTROL VALVE A.

SN: 15466-UP

1шт.

|$12

195-15-01501

CONTROL VALVE A.

SN: (01184)-15465

1шт.

|$13

0

CONTROL VALVE A.

SN: 15001-(01183)

1шт.

1

195-15-35291

STOPPER

SN: 15001-UP

1шт.

2

07000-73030

O-RING (KIT)

SN: 15001-UP

1шт.

3

195-15-35631

VALVE

SN: 15001-UP

1шт.

4

125-15-11230

PLUG

SN: 15001-UP

1шт.

5

195-15-35860

BOSS

SN: 15001-UP

1шт.

6

07000-72021

O-RING (KIT)

SN: 15001-UP

1шт.

7

195-15-35870

PLATE

SN: 15001-UP

1шт.

8

04020-00514

PIN,DOWEL

SN: 15001-UP

1шт.

9

01010-51030

BOLT

SN: 15001-UP

2шт.

10

01602-21030

WASHER,SPRING

SN: 15001-UP

2шт.

11

195-15-35240

VALVE

SN: 15001-UP

1шт.

12

104-15-25490

VALVE

SN: 15001-UP

1шт.

13

125-15-15290

SPRING

SN: 15001-UP

1шт.

14

104-15-25480

VALVE

SN: 15001-UP

1шт.

15

145-15-45510

SPRING

SN: 15466-UP

1шт.

15

195-15-46210

SPRING

SN: 15001-15465

1шт.

15A

198-15-01420

SHIM ASS'Y

SN: 15466-UP

8шт.

15A

198-15-01410

SHIM ASS'Y

SN: 15001-15465

8шт.

15A

0

SHIM, 0.50MM

SN: 15466-UP

21шт.

15A

0

SHIM, 0.50MM

SN: 15001-15465

8шт.

16

195-15-36460

PLUG

SN: 15001-UP

1шт.

17

07002-03334

O-RING (KIT)

SN: 15001-UP

1шт.

18

195-15-35280

STOPPER

SN: 15001-UP

1шт.

19

04025-00850

PIN,SPRING

SN: 15001-UP

1шт.

20

07042-20108

PLUG

SN: 15001-UP

1шт.

21

195-15-34160

SPRING

SN: 15001-UP

1шт.

22

427-15-15310

VALVE

SN: (01335)-UP

1шт.

22

195-15-34130

VALVE

SN: 15001-(01334)

1шт.

23

195-15-35810

PLATE

SN: 15001-UP

1шт.

24

07000-73032

O-RING (KIT)

SN: 15001-UP

1шт.

25

01010-51030

BOLT

SN: 15001-UP

2шт.

26

01602-21030

WASHER,SPRING

SN: 15001-UP

2шт.

27

195-15-35920

GASKET (KIT)

SN: 15001-UP

1шт.

28

01010-51075

BOLT

SN: 15001-UP

2шт.

29

01602-21030

WASHER,SPRING

SN: 15001-UP

2шт.

30

01011-51025

BOLT

SN: 15001-UP

12шт.

31

01602-21030

WASHER,SPRING

SN: 15001-UP

12шт.

32

01011-51050

BOLT

SN: 15001-UP

5шт.

33

01602-21030

WASHER,SPRING

SN: 15001-UP

5шт.
