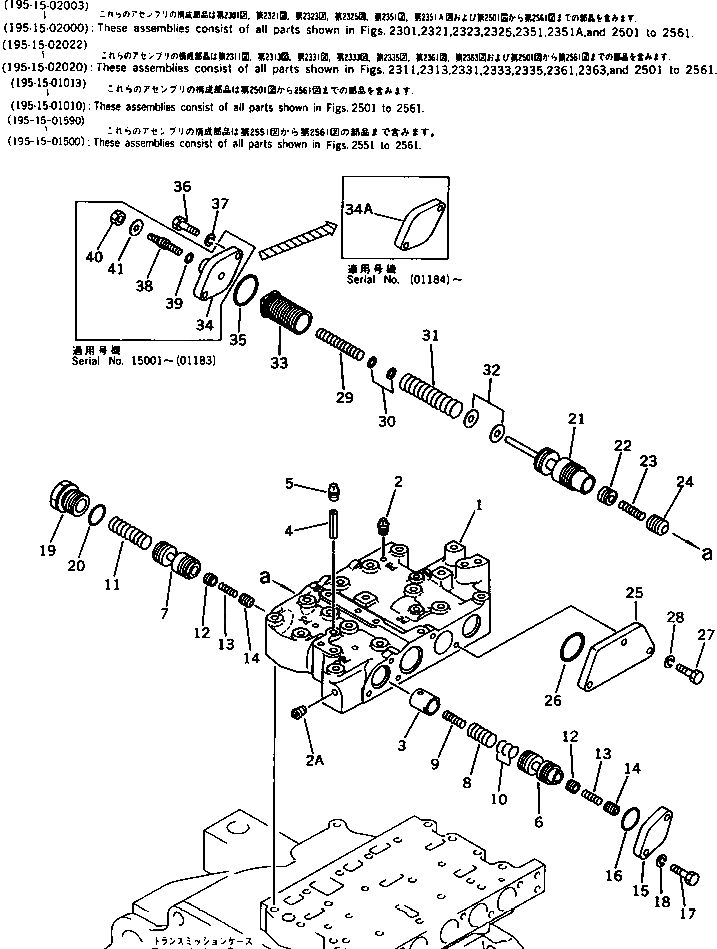

Запчасти Komatsu D375A-1 КЛАПАН ТРАНСМИССИИ (/) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

195-15-02003

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01254)-15465

1шт.

|$1

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01194)-(01253)

1шт.

|$2

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15005-(01193)

1шт.

|$3

195-15-02000

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15001-15004

1шт.

|$4

195-15-02022

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01060)-(01110)

1шт.

|$5

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01009)-(01059)

1шт.

|$6

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: 15001-(01008)

1шт.

|$7

195-15-01013

TRANSMISSION ASS'Y

SN: (03612)-UP

1шт.

|$8

0

TRANSMISSION ASS'Y

SN: 15466-(03611)

1шт.

|$9

0

TRANSMISSION ASS'Y

SN: (02437)-15465

1шт.

|$10

0

TRANSMISSION ASS'Y

SN: 15001-(02436)

1шт.

|$11

195-15-01590

CONTROL VALVE A.

SN: 15466-UP

1шт.

|$12

195-15-01501

CONTROL VALVE A.

SN: (01184)-15465

1шт.

|$13

0

CONTROL VALVE A.

SN: 15001-(01183)

1шт.

|$14

195-15-01540

BODY ASS'Y

SN: 15001-UP

1шт.

1

0

BODY

SN: 15001-UP

1шт.

2

07042-20108

PLUG

SN: 15001-UP

9шт.

2A

07042-10211

PLUG

SN: 15001-UP

1шт.

3

195-15-35280

STOPPER

SN: 15001-UP

1шт.

4

04025-00850

PIN,SPRING

SN: 15001-UP

1шт.

5

07042-20108

PLUG

SN: 15001-UP

1шт.

6

195-15-35230

VALVE

SN: 15001-UP

1шт.

7

195-15-35240

VALVE

SN: 15001-UP

1шт.

8

124-15-42910

SPRING

SN: 15001-UP

1шт.

9

237-14-12940

SPRING

SN: 15001-UP

1шт.

10

198-15-15570

SHIM, 0.50MM

SN: 15001-UP

6шт.

11

566-15-45580

SPRING

SN: 15001-UP

1шт.

12

104-15-25490

VALVE

SN: 15001-UP

2шт.

13

125-15-15290

SPRING

SN: 15001-UP

2шт.

14

104-15-25480

VALVE

SN: 15001-UP

2шт.

15

195-15-35810

PLATE

SN: 15001-UP

1шт.

16

07000-73032

O-RING (KIT)

SN: 15001-UP

1шт.

17

01010-51030

BOLT

SN: 15001-UP

2шт.

18

01602-21030

WASHER,SPRING

SN: 15001-UP

2шт.

19

195-15-36460

PLUG

SN: 15001-UP

1шт.

20

07002-03334

O-RING (KIT)

SN: 15001-UP

1шт.

21

195-15-35521

VALVE

SN: 15001-UP

1шт.

22

287-15-15380

VALVE

SN: 15001-UP

1шт.

23

180-14-25560

SPRING

SN: 15001-UP

1шт.

24

195-15-35530

VALVE

SN: 15001-UP

1шт.

25

195-15-35830

PLATE

SN: 15001-UP

1шт.

26

07000-73040

O-RING (KIT)

SN: 15001-UP

1шт.

27

01010-51030

BOLT

SN: 15001-UP

3шт.

28

01602-21030

WASHER,SPRING

SN: 15001-UP

3шт.

29

195-15-46170

SPRING

SN: 15001-UP

1шт.

30

560-43-14330

SHIM, 0.5MM

SN: 15001-UP

2шт.

31

195-15-36160

SPRING

SN: 15001-UP

1шт.

32

203-57-21320

SHIM, 0.5MM

SN: 15001-UP

2шт.

33

195-15-35560

PISTON

SN: 15001-UP

1шт.

34

195-15-35850

COVER

SN: 15001-(01183)

1шт.

34A

195-15-35851

COVER

SN: (01184)-UP

1шт.

35

07000-73045

O-RING (KIT)

SN: 15001-UP

1шт.

36

01010-51030

BOLT

SN: 15001-UP

2шт.

37

01602-21030

WASHER,SPRING

SN: 15001-UP

2шт.

38

424-15-15840

PLUG

SN: 15001-(01183)

1шт.

39

07000-71009

O-RING (KIT)

SN: 15001-(01183)

1шт.

40

01580-11008

NUT

SN: 15001-(01183)

1шт.

41

01643-31032

WASHER

SN: 15001-(01183)

1шт.
