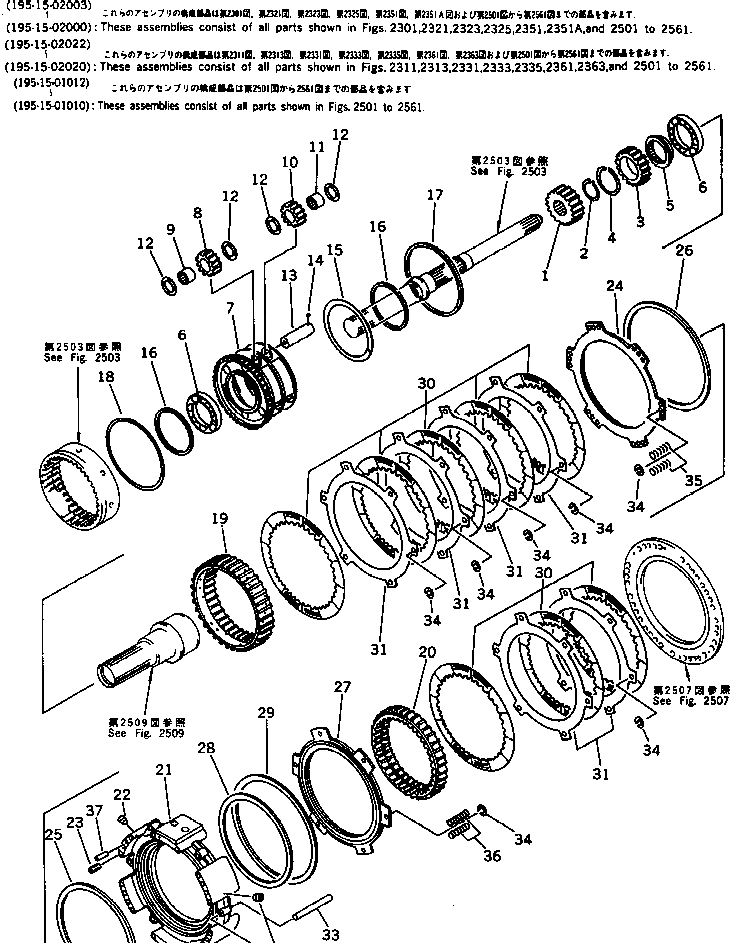

Запчасти Komatsu D375A-1 ПЕРЕД. И 3 МУФТА(№-) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

195-15-02003

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01254)-15465

1шт.

|$1

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01194)-(01253)

1шт.

|$2

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15005-(01193)

1шт.

|$3

195-15-02000

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15001-15005

1шт.

|$4

195-15-02022

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01060)-(01110)

1шт.

|$5

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01009)-(01059)

1шт.

|$6

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: 15001-(01008)

1шт.

|$7

195-15-01012

TRANSMISSION ASS'Y

SN: 15001-@

1шт.

|$8

0

TRANSMISSION ASS'Y

SN: (02437)-15465

1шт.

|$9

0

TRANSMISSION ASS'Y

SN: 15001-(02436)

1шт.

1

195-15-42230

GEAR,41 TEETH

SN: 15001-@

1шт.

2

04064-07525

RING,SNAP

SN: 15001-@

1шт.

3

195-15-42220

GEAR,41 TEETH

SN: 15001-@

1шт.

4

04070-00105

RING,SNAP

SN: 15001-@

1шт.

5

195-15-42150

COLLAR

SN: 15001-@

1шт.

6

06000-06924

BEARING,BALL

SN: 15001-@

2шт.

7

195-15-42322

CARRIER

SN: (01361)-@

1шт.

7

0

CARRIER

SN: (15001-(01360))

1шт.

8

195-15-42430

GEAR,25 TEETH

SN: 15001-@

4шт.

9

195-15-49430

BEARING,NEEDLE

SN: 15001-@

4шт.

10

195-15-42420

GEAR,25 TEETH

SN: 15001-@

4шт.

11

195-15-49420

BEARING,NEEDLE

SN: 15001-@

4шт.

12

195-15-32570

WASHER,THRUST

SN: 15001-@

16шт.

13

195-15-42520

SHAFT

SN: 15001-@

4шт.

14

04260-00635

BALL

SN: 15001-@

4шт.

15

195-15-49530

RING

SN: 15001-@

1шт.

16

195-15-49240

RING,SEAL

SN: 15001-@

2шт.

17

195-15-49280

RING,SEAL

SN: 15001-15465

1шт.

18

195-15-49511

RING

SN: 15001-@

1шт.

19

195-15-42631

GEAR,RING, 91-126 TEETH

SN: 15001-@

1шт.

20

195-15-42620

GEAR,RING, 91-126 TEETH

SN: 15001-@

1шт.

|$31

195-15-01140

HOUSING ASS'Y,FORWARD

SN: 15001-@

1шт.

21

0

HOUSING,3RD

SN: 15001-@

1шт.

22

145-14-11320

PLUG

SN: 15001-@

2шт.

23

561-15-51310

SLEEVE

SN: (02437)-@

17шт.

23

0

SLEEVE

SN: 15001-(02436)

17шт.

24

195-15-42761

PISTON,FORWARD

SN: 15001-15465

1шт.

25

175-15-59270

RING,SEAL (KIT)

SN: 15001-@

1шт.

26

19M-15-19210

RING,SEAL (KIT)

SN: 15001-15465

1шт.

27

195-15-42750

PISTON,3RD

SN: 15001-15465

1шт.

28

568-15-12830

RING,SEAL (KIT)

SN: 15001-15465

1шт.

29

195-15-39210

RING,SEAL (KIT)

SN: 15001-15465

1шт.

30

195-15-42711

DISC

SN: 15001-15465

8шт.

30

0

DISC

SN: (15001-15393)

8шт.

31

175-15-52720

PLATE

SN: 15001-15465

6шт.

32

195-15-41281

PIN

SN: 15001-15465

6шт.

33

135-15-22820

PIN

SN: 15001-@

6шт.

34

175-15-42880

SPRING

SN: 15001-15465

48шт.

35

195-15-42970

SPRING

SN: 15001-15465

12шт.

36

195-15-42960

SPRING

SN: 15001-15465

12шт.

37

04020-01228

PIN,DOWEL

SN: 15001-@

2шт.
