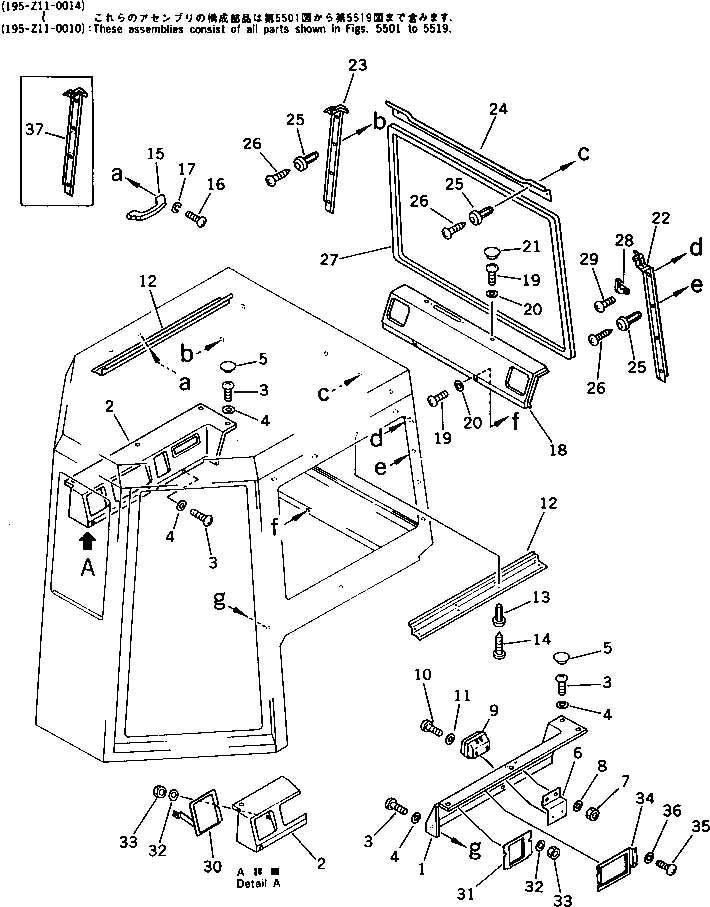

Запчасти Komatsu D375A-1 СТАЛЬНАЯ КАБИНА (ФУРНИТУРА В КАБИНЕ¤ ЗАДН.) (/) ЧАСТИ КОРПУСА

G-1

0

STEEL CAB GROUP

SN: 15593-UP

1шт.

G-1

0

STEEL CAB GROUP

SN: 15386-15592

1шт.

G-1

0

STEEL CAB GROUP

SN: 15369-15385

1шт.

G-1

0

STEEL CAB GROUP

SN: 15268-15368

1шт.

G-1

0

STEEL CAB GROUP

SN: 15001-15267

1шт.

|$$6

====================

-1шт.

|1

195-Z11-0014

STEEL CAB ASS'Y

SN: 15593-UP

1шт.

|1

0

STEEL CAB ASS'Y

SN: 15386-15592

1шт.

|1

0

STEEL CAB ASS'Y

SN: 15369-15385

1шт.

|1

0

STEEL CAB ASS'Y

SN: 15268-15368

1шт.

|1

0

STEEL CAB ASS'Y

SN: 15001-15267

1шт.

1

195-Z11-2330

PANEL

SN: 15001-UP

1шт.

2

195-Z11-2340

PANEL

SN: 15001-UP

1шт.

3

01220-30616

SCREW

SN: 15268-UP

14шт.

|3

0

SCREW

SN: 15001-15267

14шт.

4

01641-20608

WASHER

SN: 15001-UP

14шт.

5

195-Z11-2360

CAP

SN: 15001-UP

8шт.

6

195-Z11-2730

PLATE

SN: 15001-UP

1шт.

7

01580-10605

NUT

SN: 15001-UP

2шт.

8

01643-30623

WASHER

SN: 15001-UP

2шт.

9

205-54-72240

ASHTRAY

SN: 15001-UP

1шт.

10

195-979-7720

SCREW

SN: 15001-UP

2шт.

11

01642-20405

WASHER

SN: 15001-UP

2шт.

12

195-Z11-1910

COVER

SN: 15001-UP

2шт.

13

195-Z11-1950

CLIP

SN: 15001-UP

8шт.

14

195-Z11-1960

SCREW

SN: 15001-UP

8шт.

15

195-Z11-1980

GRIP

SN: 15001-UP

1шт.

16

195-979-7710

SCREW

SN: 15001-UP

2шт.

17

01601-20513

WASHER,SPRING

SN: 15001-UP

2шт.

18

195-Z11-2350

PANEL

SN: 15001-UP

1шт.

19

01235-50616

SCREW

SN: 15001-UP

4шт.

20

01641-20608

WASHER

SN: 15001-UP

4шт.

21

195-Z11-2360

CAP

SN: 15001-UP

2шт.

22

195-Z11-1930

COVER,L.H.

SN: 15001-UP

1шт.

23

195-Z11-1940

COVER,R.H.

SN: 15001-UP

1шт.

24

195-Z11-1920

COVER

SN: 15001-UP

1шт.

25

195-Z11-1950

CLIP

SN: 15001-UP

17шт.

26

195-Z11-1960

SCREW

SN: 15001-UP

17шт.

27

195-Z11-1990

SEAL

SN: 15001-UP

1шт.

28

205-54-51250

HANGER

SN: 15001-UP

1шт.

29

195-979-7720

SCREW

SN: 15001-UP

2шт.

30

195-Z11-2860

COVER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

1шт.

31

195-Z11-2840

COVER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

1шт.

32

01643-30623

WASHER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

4шт.

33

01580-10605

NUT,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

4шт.

34

195-Z11-2850

COVER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

1шт.

35

01235-40616

SCREW,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

4шт.

36

01643-30623

WASHER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

4шт.

|$$49

====================

-1шт.

37

195-Z11-3930

COVER,(FOR VACUUM FLASK)

SN: 15001-UP

1шт.
