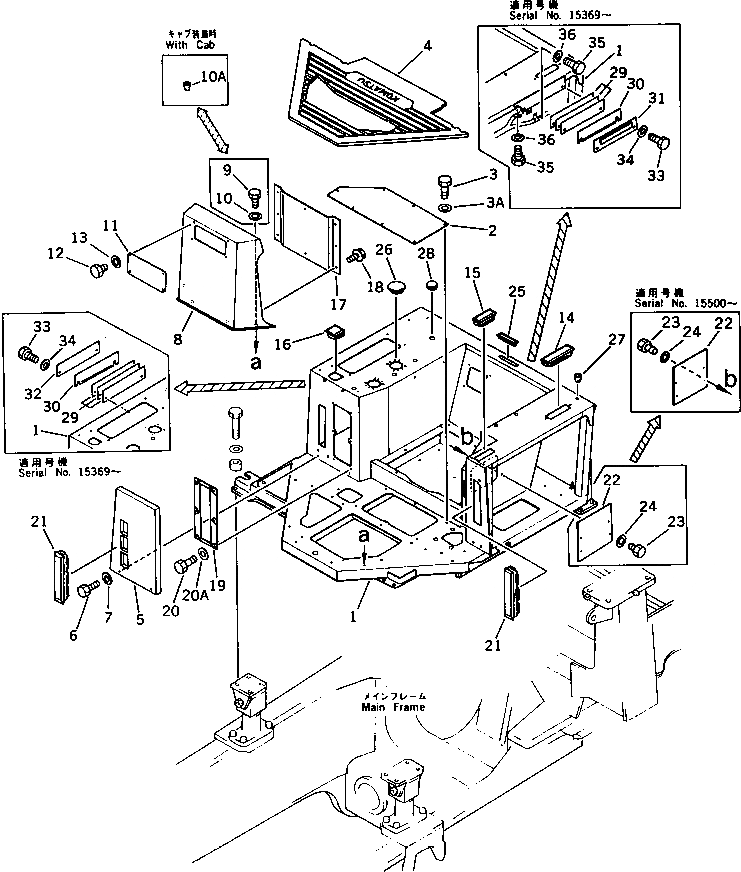

Запчасти Komatsu D375A-1 ОСНОВН. КОНСТРУКЦИЯ ЧАСТИ КОРПУСА

1

195-54-45520

FRAME

SN: 15367-UP

1шт.

|1

195-54-45110

FRAME

SN: 15001-15366

1шт.

|1

195-54-49281

FRAME,(FOR COLD WEATHER)

SN: 15447-UP

1шт.

|1

195-54-49280

FRAME,(FOR COLD WEATHER)

SN: 15200-15446

1шт.

2

195-54-45120

COVER

SN: 15001-UP

1шт.

3

01010-51230

BOLT

SN: 15001-UP

7шт.

3A

01643-31232

WASHER

SN: 15001-UP

7шт.

4

195-Z11-2380

MAT

SN: 15001-UP

1шт.

|4

195-Z11-3370

MAT,(FOR COLD WEATHER)

SN: 15200-UP

1шт.

5

195-54-45140

COVER

SN: 15001-UP

1шт.

6

01010-51255

BOLT

SN: 15001-UP

2шт.

7

01643-31232

WASHER

SN: 15001-UP

2шт.

8

195-54-45150

BRACKET,(WITHOUT CAB)

SN: 15001-UP

1шт.

9

01010-51435

BOLT,(WITHOUT CAB)

SN: 15001-UP

4шт.

10

01643-31445

WASHER,(WITHOUT CAB)

SN: 15001-UP

4шт.

10A

07049-01418

PLUG,(WITHOUT CAB)

SN: 15001-UP

4шт.

11

195-54-45160

COVER,(WITHOUT CAB)

SN: 15001-UP

1шт.

12

01010-50616

BOLT,(WITHOUT CAB)

SN: 15001-UP

4шт.

13

01643-30623

WASHER,(WITHOUT CAB)

SN: 15001-UP

4шт.

14

195-54-45440

CAP,(WITHOUT CAB)

SN: 15001-UP

1шт.

15

195-54-45410

CAP,(WITHOUT CAB)

SN: 15001-UP

1шт.

16

195-54-45420

CAP,(WITHOUT CAB)

SN: 15001-UP

1шт.

17

195-54-45220

COVER,(WITHOUT CAB)

SN: 15001-UP

1шт.

18

01439-00814

BOLT,(WITHOUT CAB)

SN: 15001-UP

8шт.

19

195-54-45130

COVER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

1шт.

20

01010-51225

BOLT,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

6шт.

20A

01643-31232

WASHER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

6шт.

21

195-54-45450

CAP,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

2шт.

22

195-54-46251

PLATE,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

1шт.

23

01010-50616

BOLT,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

4шт.

24

01643-30623

WASHER,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

4шт.

25

195-54-45430

CAP,(WITHOUT AIR CONDITIONER)

SN: 15001-UP

1шт.

26

195-54-45460

CAP

SN: 15001-UP

1шт.

27

07049-01418

PLUG

SN: 15001-UP

9шт.

28

09415-01610

CAP

SN: 15001-UP

1шт.

29

195-54-00280

SHIM ASS'Y

SN: 15369-UP

1шт.

|29

0

SHIM¤ 1.0MM

SN: 15369-UP

8шт.

|29

0

SHIM¤ 0.5MM

SN: 15369-UP

4шт.

30

195-54-46520

PLATE

SN: 15369-UP

2шт.

31

195-54-46450

CUSHION,L.H.

SN: 15369-UP

1шт.

32

195-54-46460

CUSHION,R.H.

SN: 15369-UP

1шт.

33

01010-51440

BOLT

SN: 15369-UP

4шт.

34

01643-31445

WASHER

SN: 15369-UP

4шт.

35

01010-51220

BOLT

SN: 15369-UP

2шт.

36

01643-31232

WASHER

SN: 15369-UP

2шт.
