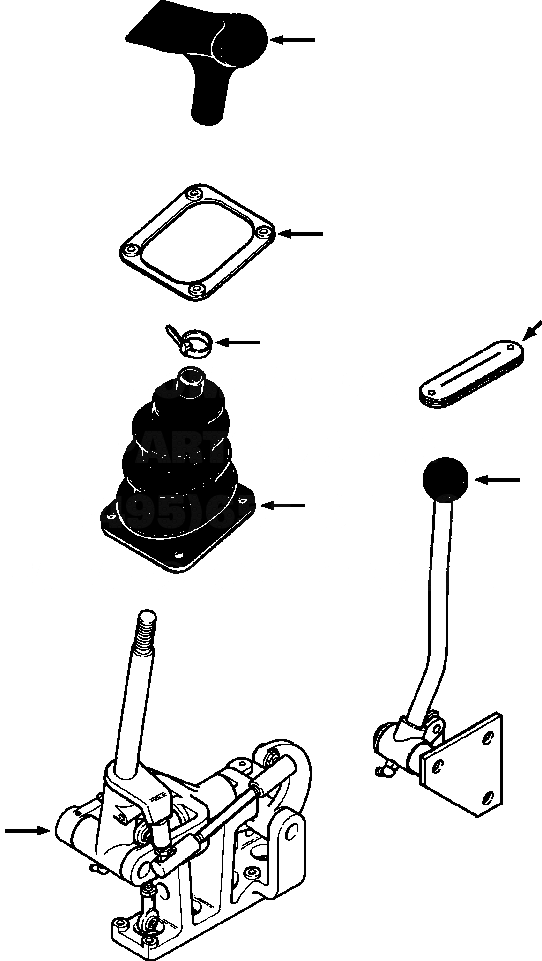

Запчасти Komatsu D32E-1A FIG. K-7A ОБОРУД-Е КЛАПАН УПРАВЛ-ЕS - FOUR СЕКЦ. КЛАПАН КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

1270 686 H91

EQUIPMENT VALVE CONTROLS

SN: P076093--UP

1шт.

|$1

VALVE, 4 SPOOL (SEE FIG. H0120-02A0)

SN: P076093--UP

1шт.

|$2

26 269 R1

BOLT, HEX - 5/16NCx2-3/4

SN: P076093--UP

3шт.

|$3

25 533 R1

WASHER, FLAT - 5/16

SN: P076093--UP

3шт.

1

CONTROL BRACKET AND HANDLE(SEE FIG. K2400-07A0)

SN: P076093--UP

1шт.

|$5

25 483 R1

BOLT, HEX - 1/4NCx1

SN: P076093--UP

2шт.

|$6

25 487 R1

BOLT, HEX - 1/4NCx1-1/2

SN: P076093--UP

2шт.

|$7

25 532 R1

WASHER, FLAT - 1/4

SN: P076093--UP

4шт.

2

1269 024 H2

BOOT, LEVER

SN: P076093--UP

1шт.

3

935 522 C1

STRAP, TIE

SN: P076093--UP

1шт.

4

1306 898 H91

RETAINER, BOOT - W/MOUNTING INSERTS

SN: P076093--UP

1шт.

|$11

160 544

SCREW, PAN - 1/4NCx3/4

SN: P076093--UP

4шт.

5

LEVER, 4TH SPOOL (SEE FIG. K2400-07A3)

SN: P076093--UP

1шт.

6

114-43-48381

GROMMET

SN: P076093--UP

1шт.

|$14

-1шт.

|$15

F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$16

-1шт.
