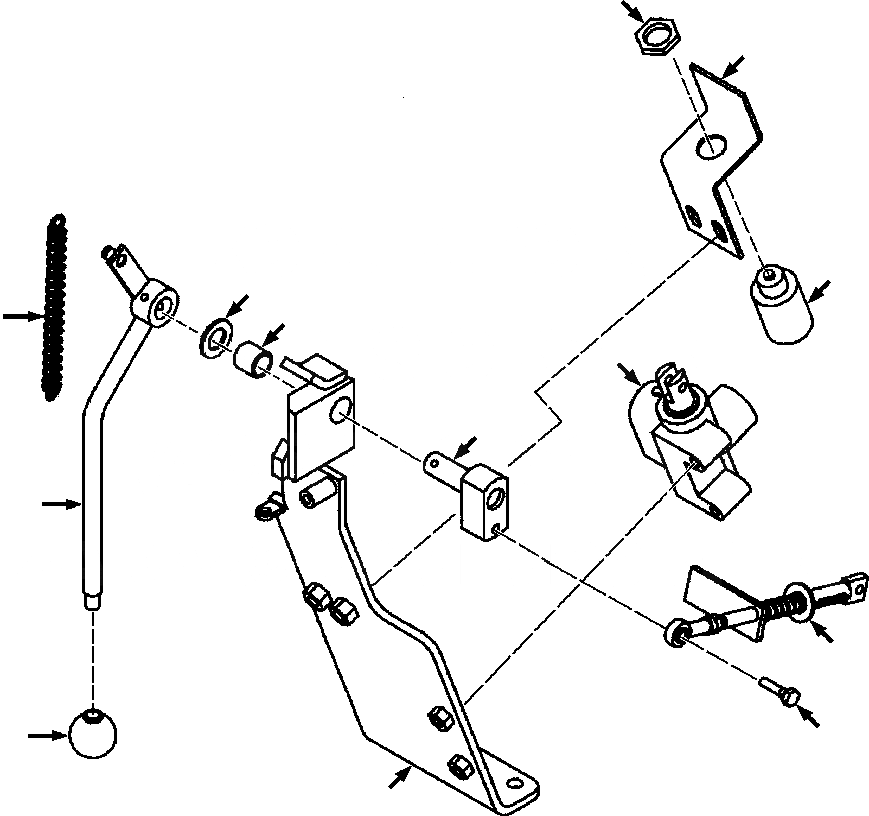

Запчасти Komatsu D32E-1A FIG. K-A БЕЗОПАСН. РЫЧАГ - С СИСТЕМОЙ ROPS КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

1305 836 H91

LEVER ASSEMBLY, SAFETY

SN: P076093--UP

1шт.

1

1305 837 H91

PLATE, MOUNTING

SN: P076093--UP

1шт.

2

1306 955 H1

BUSHING

SN: P076093--UP

1шт.

3

1306 956 H1

BEARING, NEEDLE

SN: P076093--UP

2шт.

4

VALVE, NEUTRAL START (SEE FIG. F2300-08A0)

SN: P076093--UP

1шт.

|$5

25 232 R1

BOLT, HEX - 5/16NCx2

SN: P076093--UP

2шт.

|$6

25 533 R1

WASHER, FLAT - 5/16

SN: P076093--UP

2шт.

5

1305 848 H1

PLATE, NEUTRAL START MOUNTING

SN: P076093--UP

1шт.

|$8

24 840 R1

BOLT, HEX - 3/8NCx1

SN: P076093--UP

2шт.

|$9

25 534 R1

WASHER, FLAT - 3/8

SN: P076093--UP

2шт.

6

1308 140 H91

SHAFT, CAM

SN: P076093--UP

1шт.

|$11

25 483 R1

BOLT, HEX - 1/4NCx1

SN: P076093--UP

1шт.

|$12

25 532 R1

WASHER, FLAT - 1/4

SN: P076093--UP

2шт.

7

1305 838 H91

LEVER, SAFETY

SN: P076093--UP

1шт.

|$14

21 072 R1

PIN, COIL - 3/16x1

SN: P076093--UP

1шт.

8

ROD, ACTUATION (SEE FIG. K2400-02A2)

SN: P076093--UP

1шт.

9

53 055 D

PIN, CLEVIS - 1/4x1

SN: P076093--UP

1шт.

|$17

103 362

PIN, COTTER - 1/16x3/4

SN: P076093--UP

1шт.

|$18

25 534 R1

WASHER, FLAT - 3/8

SN: P076093--UP

2шт.

10

1306 957 H1

SPRING, EXTENSION

SN: P076093--UP

1шт.

11

177 717 R1

NUT, HEX - 3/4NF

SN: P076093--UP

1шт.

12

307 839 R1

KNOB, BALL

SN: P076093--UP

1шт.

13

SWITCH, NEUTRAL START(SEE FIG. E0200-02A3)

SN: P076093--UP

1шт.

|$23

-1шт.

|$24

F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$25

-1шт.
