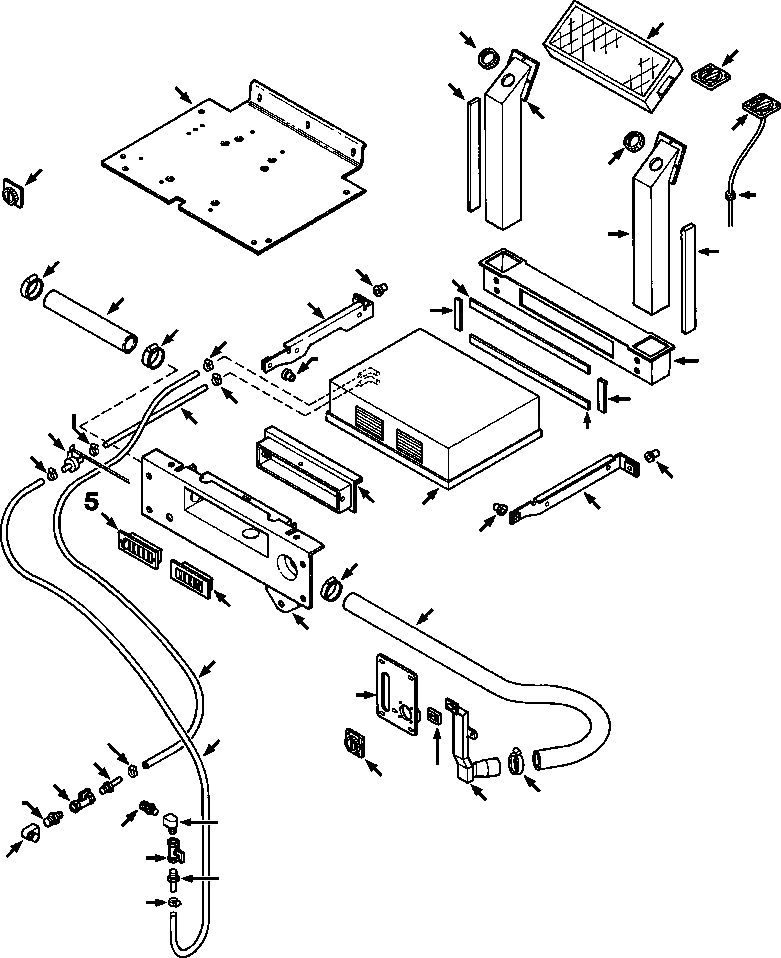

Запчасти Komatsu D32E-1A FIG. K7-A ПЕЧКА И СОЕДИН-ЕS КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

1304 496 H91

CAB HEATER AND CONNECTIONS

SN: P076093--UP

1шт.

1

1309 341 H91

HEATER, CAB

SN: P076093--UP

1шт.

|$2

30 193 R1

BOLT, HEX - M6x20

SN: P076093--UP

4шт.

|$3

934 948 R1

WASHER, FLAT - M6

SN: P076093--UP

1шт.

2

1300 700 H91

BRACKET, LEFT

SN: P076093--UP

1шт.

3

1300 701 H91

BRACKET, RIGHT

SN: P076093--UP

1шт.

4

1300 694 H91

CHANNEL ASSEMBLY

SN: P076093--UP

1шт.

5

1298 608 H1

LOUVER, AIR CIRCULATION

SN: P076093--UP

2шт.

|$8

30 271 R1

SCREW - M3x15

SN: P076093--UP

4шт.

|$9

30 239 R1

WASHER, FLAT - M3

SN: P076093--UP

4шт.

|$10

30 272 R1

NUT, HEX - M3

SN: P076093--UP

4шт.

6

1300 715 H91

FRAME, DUCT

SN: P076093--UP

1шт.

|$12

934 810 R1

BOLT, HEX - M6x16

SN: P076093--UP

3шт.

|$13

934 948 R1

WASHER, FLAT - M6

SN: P076093--UP

3шт.

7

1300 784 H91

CHANNEL, REAR AIR

SN: P076093--UP

1шт.

|$15

24 839 R1

BOLT, HEX - 3/8NCx3/4

SN: P076093--UP

2шт.

|$16

25 534 R1

WASHER, FLAT - 3/8

SN: P076093--UP

2шт.

8

1300 776 H1

INSULATION

SN: P076093--UP

2шт.

9

625 875 C1

MOUNT, SHOCK

SN: P076093--UP

2шт.

|$19

24 841 R1

BOLT, HEX - 3/8NCx1-1/2

SN: P076093--UP

2шт.

|$20

25 553 R1

WASHER, FLAT - 3/8

SN: P076093--UP

2шт.

10

1300 775 H1

INSULATION

SN: P076093--UP

2шт.

11

625 875 C1

MOUNT, SHOCK

SN: P076093--UP

2шт.

|$23

24 842 R1

BOLT, HEX - 3/8NCx1-3/4

SN: P076093--UP

2шт.

|$24

25 553 R1

WASHER, FLAT - 3/8

SN: P076093--UP

6шт.

|$25

120 377

NUT, HEX - 3/8NC

SN: P076093--UP

2шт.

|$26

1304 466 H91

PLATE AND VENT, SAFETY LEVER

SN: P076093--UP

1шт.

12

NSS

PLATE, SAFETY LEVER

SN: P076093--UP

1шт.

13

1300 698 H91

OUTLET, AIR

SN: P076093--UP

1шт.

|$29

159 339

SCREW, PAN HEAD

SN: P076093--UP

4шт.

14

1304 471 H1

SEAL, DUCT

SN: P076093--UP

1шт.

15

1304 470 H91

DUCT, AIR

SN: P076093--UP

1шт.

|$32

30 001 R1

BOLT, HEX - M8x16

SN: P076093--UP

1шт.

|$33

120 214

WASHER, LOCK - M8

SN: P076093--UP

1шт.

16

1309 345 H1

HOSE, LEFT

SN: P076093--UP

1шт.

17

681 209 C1

CLAMP, HOSE

SN: P076093--UP

4шт.

18

1309 346 H1

HOSE, RIGHT

SN: P076093--UP

1шт.

19

1300 698 H91

OUTLET, RIGHT AIR

SN: P076093--UP

1шт.

20

443 992

REDUCER, PIPE

SN: P076093--UP

1шт.

21

444 042

ELBOW, 90°

SN: P076093--UP

1шт.

22

153 843 R1

NIPPLE

SN: P076093--UP

2шт.

23

627 686 C1

VALVE, SHUT OFF

SN: P076093--UP

2шт.

24

HOSE, ENGINE TO VALVE - 64IN LONG

SN: P076093--UP

1шт.

25

122 316 R91

CLAMP, HOSE

SN: P076093--UP

6шт.

26

1309 344 H91

VALVE, HEATER CONTROL

SN: P076093--UP

1шт.

27

HOSE, VALVE TO HEATER - 16IN LONG

SN: P076093--UP

1шт.

28

HOSE, HEATER TO ENGINE - 88IN LONG

SN: P076093--UP

1шт.

29

444 044

ELBOW, 90°

SN: P076093--UP

1шт.

30

1235 817 H1

REDUCER, PIPE

SN: P076093--UP

1шт.

31

1304 469 H91

DUCT, REAR AIR

SN: P076093--UP

2шт.

|$50

1309 615 H1

SCREW, DUCT

SN: P076093--UP

6шт.

|$51

30 289 R1

WASHER, FLAT - 4MM

SN: P076093--UP

6шт.

32

1300 773 H1

INSULATION, DUCT

SN: P076093--UP

2шт.

33

1309 340 H91

OUTLET, AIR

SN: P076093--UP

2шт.

34

1261 655 H1

FILTER, AIR

SN: P076093--UP

1шт.

35

1309 343 H91

KNOB AND CABLE, PUSH/PULL

SN: P076093--UP

1шт.

|$56

1309 615 H1

SCREW

SN: P076093--UP

4шт.

36

187 540

GROMMET, RUBBER

SN: P076093--UP

1шт.

37

1309 342 H91

SWITCH

SN: P076093--UP

1шт.

|$59

1309 615 H1

SCREW

SN: P076093--UP

4шт.

38

PLATE ASSEMBLY (SEE FIG. K0120-01A0) OR (SEE FIG. K0120-01A1)

SN: P076093--UP

1шт.

|$61

SHIM (SEE FIG. D0100-01A0)

SN: P076093--UP

-2шт.

|$71

-1шт.

|$62

-1шт.

|$63

F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.

-1шт.

|$65

-1шт.

|$66

F2 - CUT REQUIRED LENGTH FROM HEATER HOSE 364 359 C1.

-1шт.

|$68

-1шт.

|$69

F3 - USE SHIMS AS REQUIRED TO ELIMINATE GAPS BETWEEN THE LIP OF THE PLATE ASSEMBLY (SEAT MOUNTING) AND THE FUEL TANK.

-1шт.

|$70

-1шт.
