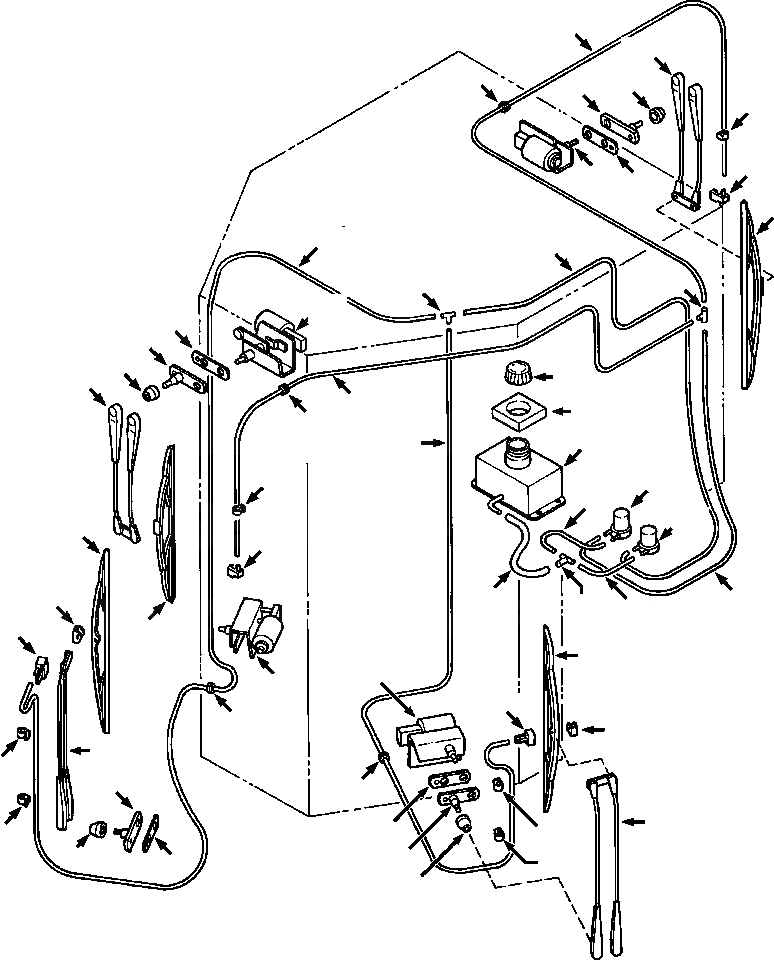

Запчасти Komatsu D32E-1A FIG. K-A КАБИНА ROPS - ДВОРНИКИS И ОМЫВАТЕЛЬS КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

CAB ASSEMBLY, COMPLETE(SEE FIG. K0210-03A0)

SN: P076093--UP

1шт.

1

WIPER, LOWER LEFT (SEE FIG. K0210-05A1)

SN: P076093--UP

1шт.

|$2

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$3

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

|$4

1200 799 H91

PIVOT ASSEMBLY, SLAVE

SN: P076093--UP

1шт.

2

1211 748 H1

GASKET, PIVOT

SN: P076093--UP

1шт.

3

1211 750 H1

CAP, PIVOT

SN: P076093--UP

1шт.

|$7

1211 749 H1

WASHER, FLAT

SN: P076093--UP

1шт.

|$8

30 167 R1

NUT, HEX - M8

SN: P076093--UP

1шт.

4

NSS

PIVOT, SLAVE

SN: P076093--UP

1шт.

|$10

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

4шт.

|$11

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

4шт.

|$12

120 613

NUT, JAM - 1/4NF

SN: P076093--UP

4шт.

5

109 390

GROMMET, RUBBER

SN: P076093--UP

4шт.

6

1209 654 H1

ARM, LOWER WIPER

SN: P076093--UP

2шт.

|$15

1209 655 H1

BLADE ASSEMBLY, WIPER

SN: P076093--UP

2шт.

7

1280 699 H1

CLAMP, MOUNTING

SN: P076093--UP

1шт.

|$17

1280 698 H1

BOLT, SHOULDER

SN: P076093--UP

1шт.

|$18

3078 617 R1

WASHER, FLAT

SN: P076093--UP

1шт.

|$19

1280 697 H1

WASHER, LOCK

SN: P076093--UP

1шт.

|$20

933 763 R1

NUT, HEX - M4

SN: P076093--UP

1шт.

8

NSS

BLADE, WIPER

SN: P076093--UP

1шт.

9

1210 371 H1

CLIP, WIPER ARM

SN: P076093--UP

2шт.

10

1210 134 H1

NOZZLE, WASHER

SN: P076093--UP

2шт.

11

WIPER, LOWER RIGHT (SEE FIG. K0210-05A2)

SN: P076093--UP

1шт.

|$25

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$26

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

12

WIPER, CENTER (SEE FIG. K0210-05A1)

SN: P076093--UP

1шт.

|$28

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$29

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

13

1232 861 H1

ARM, WIPER

SN: P076093--UP

2шт.

14

1251 450 H1

BLADE, WIPER

SN: P076093--UP

2шт.

15

1200 801 H1

CLIP, HOSE

SN: P076093--UP

2шт.

16

1200 800 H1

NOZZLE, WASHER

SN: P076093--UP

2шт.

17

WIPER, REAR (SEE FIG. K0210-05A3)

SN: P076093--UP

1шт.

|$35

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$36

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

18

1304 339 H91

TANK, WASHER

SN: P076093--UP

1шт.

|$38

931 826 R1

BOLT, HEX - M6x12

SN: P076093--UP

4шт.

|$39

934 948 R1

WASHER, FLAT - M6

SN: P076093--UP

4шт.

19

1214 181 H1

CAP, FILL

SN: P076093--UP

1шт.

20

1304 401 H91

PUMP, WASHER

SN: P076093--UP

1шт.

|$42

1309 611 H1

SCREW

SN: P076093--UP

4шт.

|$43

934 948 R1

WASHER, FLAT - M6

SN: P076093--UP

4шт.

21

1304 400 H1

INSULATION, TANK

SN: P076093--UP

1шт.

22

1277 932 H1

TEE

SN: P076093--UP

2шт.

23

1245 503 H1

TEE

SN: P076093--UP

1шт.

24

HOSE, TANK TO TEE - 900MM LONG

SN: P076093--UP

1шт.

25

HOSE, TEE TO PUMP - 160MM LONG

SN: P076093--UP

2шт.

26

HOSE, PUMP TO REAR TEE - 2050MM LONG

SN: P076093--UP

1шт.

27

HOSE, WASHER - 1450MM LONG

SN: P076093--UP

1шт.

28

HOSE, CENTER WASHER - 2250MM LONG

SN: P076093--UP

1шт.

29

HOSE, PUMP TO FRONT TEE - 2750MM LONG

SN: P076093--UP

1шт.

30

HOSE, LEFT WASHER - 2550MM LONG

SN: P076093--UP

1шт.

31

HOSE, RIGHT WASHER - 3650MM LONG

SN: P076093--UP

1шт.

|$55

1209 692 H1

HOSE, BULK

SN: P076093--UP

-2шт.

|$56

940 455 C2

HOSE, BULK

SN: P076093--UP

-2шт.

|$57

-1шт.

|$58

F1 - CUT REQUIRED LENGTH FROM BULK HOSE 1209 692 H1.

-1шт.

|$59

-1шт.

|$60

F2 - CUT REQUIRED LENGTH FROM BULK HOSE 940 455 C2.

-1шт.

|$62

-1шт.
