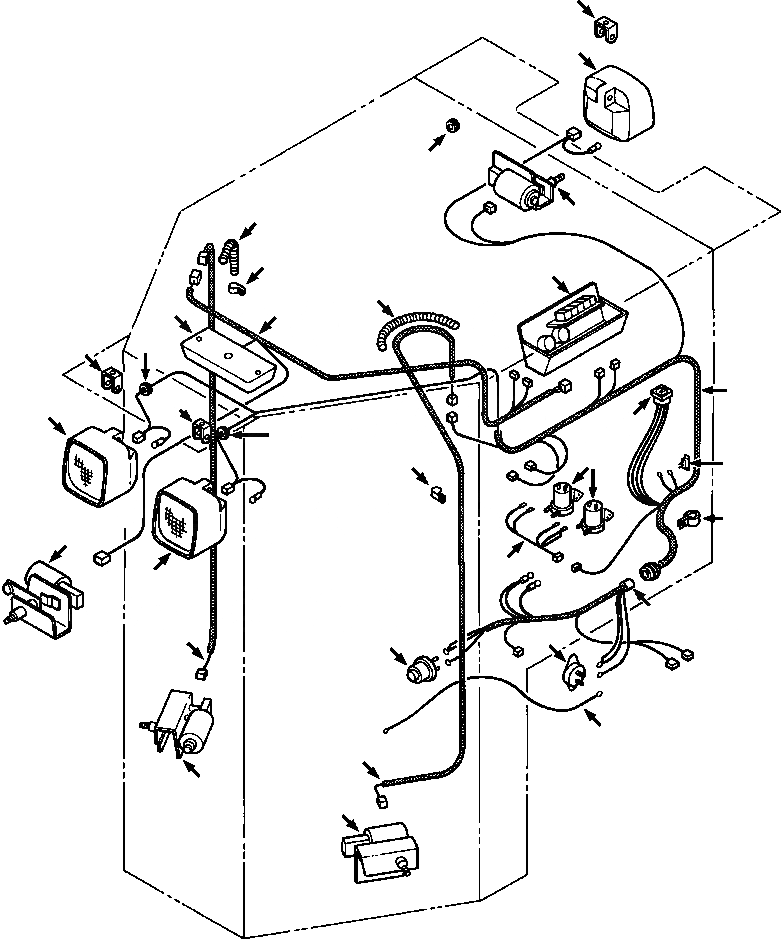

Запчасти Komatsu D32E-1A FIG. K-A КАБИНА ROPS - ЭЛЕКТР. ЭЛЕКТРОПРОВОДКА КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

CAB ASSEMBLY, COMPLETE(SEE FIG. K0210-03A0)

SN: P076093--UP

1шт.

1

PANEL, CONTROL (SEE FIG. K0210-04A1)

SN: P076093--UP

1шт.

|$2

31 006 R1

SCREW, PAN HEAD - M6x16

SN: P076093--UP

4шт.

|$3

934 948 R1

WASHER, FLAT - M6

SN: P076093--UP

4шт.

2

1304 334 H91

HARNESS, RIGHT DOOR

SN: P076093--UP

1шт.

3

1309 331 H1

CLIP, HARNESS

SN: P076093--UP

2шт.

|$6

1309 615 H1

SCREW

SN: P076093--UP

4шт.

|$7

30 289 R1

WASHER, FLAT - M4

SN: P076093--UP

4шт.

4

1309 332 H1

SPRING, GUARD

SN: P076093--UP

2шт.

5

1304 335 H91

HARNESS, LEFT DOOR

SN: P076093--UP

1шт.

6

1304 332 H91

HARNESS, FRONT

SN: P076093--UP

1шт.

7

1309 333 H1

LIGHT, OVERHEAD

SN: P076093--UP

1шт.

|$12

1309 615 H1

SCREW

SN: P076093--UP

2шт.

|$13

30 289 R1

WASHER, FLAT - M4

SN: P076093--UP

2шт.

8

LIGHT, WORK (SEE FIG. E0420-01A0)

SN: P076093--UP

3шт.

9

1281 358 H1

BRACKET, LIGHT

SN: P076093--UP

3шт.

|$16

931 830 R1

BOLT, HEX - M8x20

SN: P076093--UP

3шт.

|$17

931 841 R1

BOLT, HEX - M8x50

SN: P076093--UP

3шт.

10

WIPER MOTOR, FRONT CENTER(SEE FIG. K0210-05A1)

SN: P076093--UP

1шт.

|$19

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$20

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

11

WIPER MOTOR, FRONT LEFT(SEE FIG. K0210-05A1)

SN: P076093--UP

1шт.

|$22

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$23

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

12

WIPER MOTOR, FRONT RIGHT(SEE FIG. K0210-05A2)

SN: P076093--UP

1шт.

|$25

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$26

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

13

WIPER MOTOR, REAR (SEE FIG. K0210-05A3)

SN: P076093--UP

1шт.

|$28

26 080 R1

BOLT, HEX - 1/4NFx1/2

SN: P076093--UP

1шт.

|$29

120 380

WASHER, LOCK - 1/4

SN: P076093--UP

1шт.

14

PUMP, WASHER (SEE FIG. K0210-05A0)

SN: P076093--UP

2шт.

15

70 928

BREAKER, CIRCUIT - 20 AMP

SN: P076093--UP

1шт.

|$32

1309 611 H1

SCREW

SN: P076093--UP

2шт.

|$33

30 264 R1

WASHER, LOCK - M5

SN: P076093--UP

1шт.

16

1304 338 H91

HARNESS, WASHER PUMP

SN: P076093--UP

1шт.

17

1304 333 H91

HARNESS, CAB

SN: P076093--UP

1шт.

18

1304 336 H91

HARNESS, CAB POWER

SN: P076093--UP

1шт.

|$37

1309 900 H1

SCREW, GROUND

SN: P076093--UP

1шт.

|$38

933 833 R1

WASHER, FLAT

SN: P076093--UP

1шт.

|$39

459 330 C1

WASHER, LARGE LOCK

SN: P076093--UP

1шт.

|$40

459 329 C1

NUT, CONNECTOR

SN: P076093--UP

1шт.

19

114 217 R1

CLIP, WIRING

SN: P076093--UP

1шт.

20

213 383 H1

BREAKER, CIRCUIT - 50 AMP

SN: P076093--UP

1шт.

|$43

159 957

SCREW, PAN HEAD

SN: P076093--UP

2шт.

|$44

30 264 R1

WASHER, LOCK - M5

SN: P076093--UP

2шт.

21

1304 337 H91

CABLE, MAG SWITCH

SN: P076093--UP

1шт.

|$46

935 522 C1

STRAP, TIE

SN: P076093--UP

-2шт.

22

187 540

GROMMET, RUBBER

SN: P076093--UP

3шт.

23

SWITCH, HEATER (SEE FIG. K0710-01A0)

SN: P076093--UP

1шт.

24

SWITCH, MASTER (SEE FIG. E0200-01A0)

SN: P076093--UP

1шт.

|$50

-1шт.

|$51

-1шт.

|$52

-1шт.
