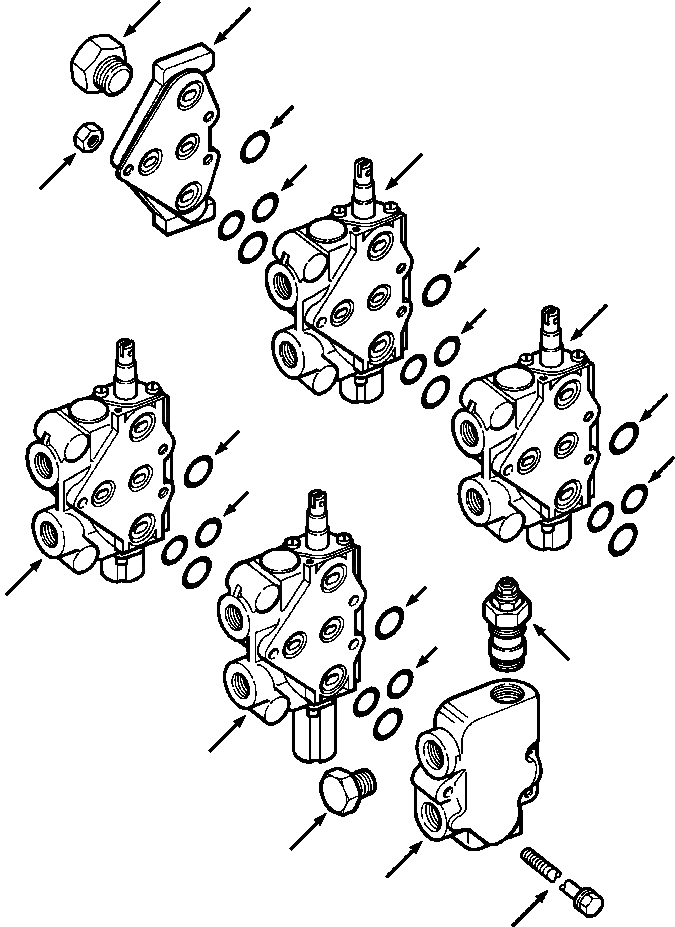

Запчасти Komatsu D32E-1A FIG. H-A FOUR СЕКЦ. КЛАПАН ГИДРАВЛИКА

|$0

1277 082 H92

VALVE ASSEMBLY, FOUR SPOOL CONTROL

SN: P076093--UP

1шт.

|$1

1299 222 H91

COVER ASSEMBLY, INLET

SN: P076093--UP

1шт.

1

NSS

COVER, INLET

SN: P076093--UP

1шт.

2

VALVE, RELIEF (SEE FIG. H0120-03A0)

SN: P076093--UP

1шт.

3

9410 361

PLUG, PORT

SN: P076093--UP

1шт.

|$5

368 269 R1

RING, SEAL

SN: P076093--UP

1шт.

4

BLADE LIFT (SEE FIG. H0120-04A0)

SN: P076093--UP

1шт.

5

BLADE TILT (SEE FIG. H0120-05A0)

SN: P076093--UP

1шт.

6

BLADE ANGLE (SEE FIG. H0120-06A0)

SN: P076093--UP

1шт.

7

RIPPER (SEE FIG. H0120-06A0)

SN: P076093--UP

1шт.

|$10

1299 226 H91

COVER ASSEMBLY, OUTLET

SN: P076093--UP

1шт.

8

NSS

COVER, OUTLET

SN: P076093--UP

1шт.

9

9410 362

PLUG, PORT

SN: P076093--UP

1шт.

|$13

297 459 R1

RING, SEAL

SN: P076093--UP

1шт.

|$14

1299 227 H1

KIT, BETWEEN SECTION

SN: P076093--UP

5шт.

10

NSS

RING, SEAL

SN: P076093--UP

2шт.

11

NSS

RING, SEAL

SN: P076093--UP

2шт.

|$17

1299 229 H1

KIT, STUD

SN: P076093--UP

1шт.

12

NSS

BOLT, MOUNTING

SN: P076093--UP

3шт.

13

NSS

NUT, HEX

SN: P076093--UP

3шт.

|$20

-1шт.

|$21

F1 - THE SEAL KIT CONTAINS ONE EXTRA SET OF SEAL RINGS.

-1шт.

|$22

-1шт.
