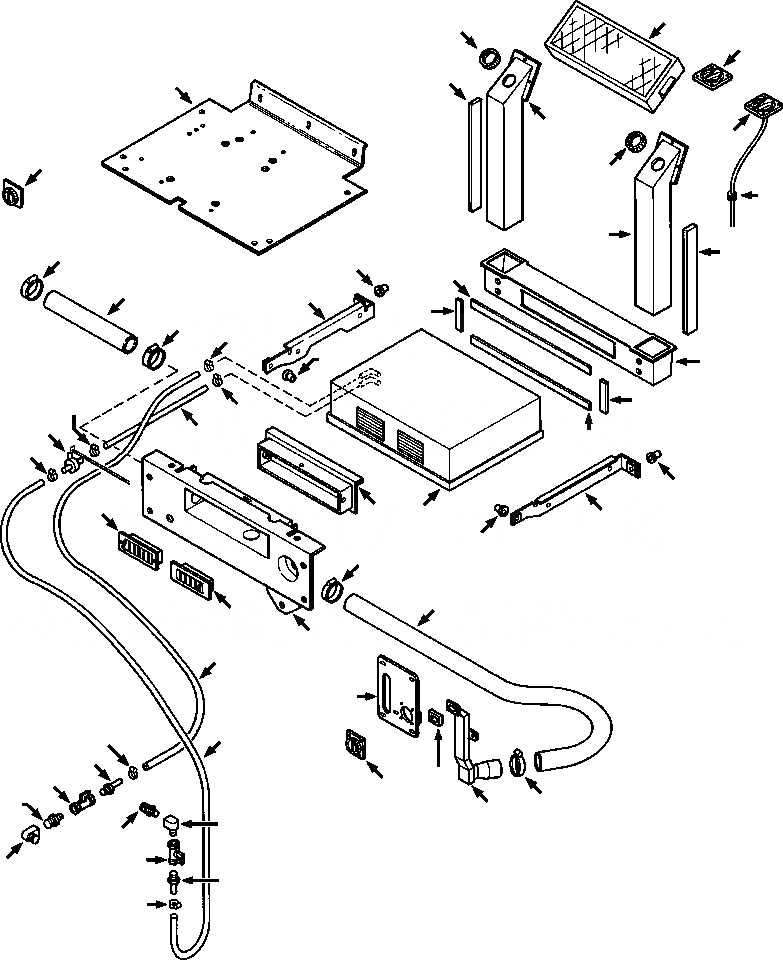

Запчасти Komatsu D32E-1 ПЕЧКА И СОЕДИН-ЕS SUPERSTRUCTURE

|$0

1304 496 H91

CAB HEATER AND CONNECTIONS

-54шт.

1

1309 341 H91

HEATER, CAB

1шт.

|$2

30 193 R1

BOLT, HEX - M6x20

4шт.

|$3

934 948 R1

WASHER, FLAT - M6

1шт.

2

1300 700 H91

BRACKET, LEFT

1шт.

3

1300 701 H91

BRACKET, RIGHT

1шт.

4

1300 694 H91

CHANNEL, SEAT FRONT

1шт.

5

1298 608 H1

LOUVER, AIR CIRCULATION

2шт.

|$8

30 271 R1

SCREW - M3x15

4шт.

|$9

30 239 R1

WASHER, FLAT - M3

4шт.

|$10

30 272 R1

NUT, HEX - M3

4шт.

6

1300 715 H91

FRAME, DUCT

1шт.

|$12

934 810 R1

BOLT, HEX - M6x16

3шт.

|$13

934 948 R1

WASHER, FLAT - M6

3шт.

7

1300 784 H91

CHANNEL, REAR AIR

1шт.

|$15

24 839 R1

BOLT, HEX - 3/8NCx3/4

2шт.

|$16

25 534 R1

WASHER, FLAT - 3/8

2шт.

8

1300 776 H1

INSULATION

2шт.

9

625 875 C1

MOUNT, SHOCK

2шт.

|$19

24 841 R1

BOLT, HEX - 3/8NCx1-1/2

2шт.

|$20

25 553 R1

WASHER, FLAT - 3/8

2шт.

10

1300 775 H1

INSULATION

2шт.

11

625 875 C1

MOUNT, SHOCK

2шт.

|$23

24 842 R1

BOLT, HEX - 3/8NCx1-3/4

2шт.

|$24

25 553 R1

WASHER, FLAT - 3/8

6шт.

|$25

120 377

NUT, HEX - 3/8NC

2шт.

|$26

1304 466 H91

PLATE AND VENT, SAFETY LEVER

1шт.

12

NSS

PLATE, SAFETY LEVER

1шт.

13

1300 698 H91

OUTLET, AIR

1шт.

|$29

159 339

SCREW, PAN HEAD

4шт.

14

1304 471 H1

SEAL, DUCT

1шт.

15

1304 470 H91

DUCT, AIR

1шт.

|$32

30 001 R1

BOLT, HEX - M8x16

1шт.

|$33

120 214

WASHER, LOCK - M8

1шт.

16

1309 345 H1

HOSE, LEFT

1шт.

17

681 209 C1

CLAMP, HOSE

4шт.

18

1309 346 H1

HOSE, RIGHT

1шт.

19

1300 698 H91

OUTLET, RIGHT AIR

1шт.

20

443 992

REDUCER, PIPE

1шт.

21

444 042

ELBOW, 90°

1шт.

22

153 843 R1

NIPPLE

2шт.

23

627 686 C1

VALVE, SHUT OFF

2шт.

24

HOSE, ENGINE TO VALVE - 64IN LONG

1шт.

25

122 316 R91

CLAMP, HOSE

6шт.

26

1309 344 H91

VALVE, HEATER CONTROL

1шт.

27

HOSE, VALVE TO HEATER - 16IN LONG

1шт.

28

HOSE, HEATER TO ENGINE - 88IN LONG

1шт.

29

444 044

ELBOW, 90°

1шт.

30

1235 817 H1

REDUCER, PIPE

1шт.

31

1304 469 H91

DUCT, REAR AIR

2шт.

|$50

1309 615 H1

SCREW, DUCT

6шт.

|$51

30 289 R1

WASHER, FLAT - 4MM

6шт.

32

1300 773 H1

INSULATION, DUCT

2шт.

33

1309 340 H91

OUTLET, AIR

2шт.

34

1261 655 H1

FILTER, AIR

1шт.

35

1309 343 H91

KNOB AND CABLE, PUSH/PULL

1шт.

|$56

1309 615 H1

SCREW

4шт.

36

187 540

GROMMET, RUBBER

1шт.

37

1309 342 H91

SWITCH

1шт.

|$59

1309 615 H1

SCREW

4шт.

38

1300 696 H91

PLATFORM, SEAT

1шт.

|$$62

-1шт.

|$62

HOSE, BULK HEATER - 5/8IN ID . . . . . . . . . . . AR

-1шт.

|$$64

-1шт.

|$64

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$66

-1шт.

|$$67

-1шт.

|$67

F2 - CUT REQUIRED LENGTH FROM BULK HEATER HOSE 364 359 C1.
