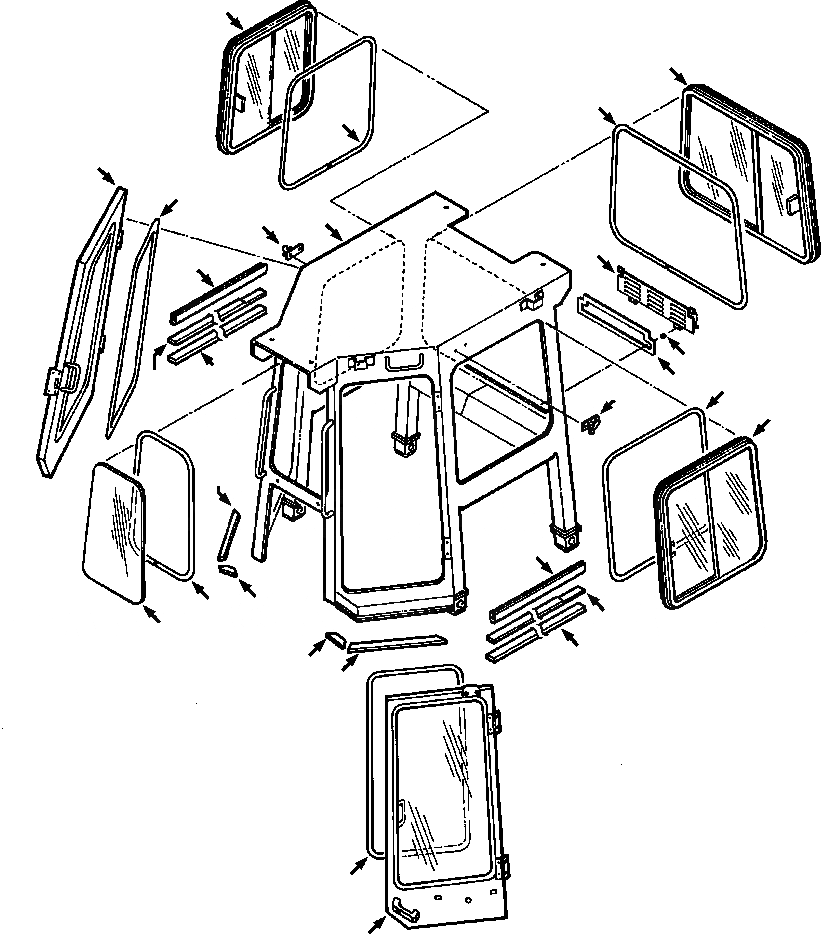

Запчасти Komatsu D32E-1 КАБИНА ROPS - /9 COMPLETE ASSEMBLY SUPERSTRUCTURE

|$0

1304 301 H91

CAB ASSY, COMPLETE

1шт.

|$1

TOP COVERS AND INSULATION (SEE PG 13-044)

-29шт.

|$2

SIDE COVERS AND INSULATION (SEE PG 13-046)

-29шт.

1

NSS

CAB, WELDMENT

1шт.

2

1304 443 H1

SEAL, DOOR

2шт.

3

SEAL, REAR WINDOW - 130IN LONG

1шт.

4

WINDOW, REAR (SEE PG 13-052)

-29шт.

|$7

1299 664 H92

COVER ASSY, FILTER ACCESS

1шт.

5

NSS

COVER, ACCESS

1шт.

6

1309 502 H1

GASKET, COVER

1шт.

|$10

931 827 R1

BOLT, HEX - M6x16

4шт.

|$11

30 325 R1

WASHER, FLAT - M6

4шт.

|$12

30 694 R1

SCREW, LATCH - M5x16

4шт.

7

1300 606 H1

BUSHING, THREADED

4шт.

8

SEAL, SIDE WINDOW - 120IN LONG

2шт.

9

WINDOW, RIGHT (SEE PG 13-054)

-29шт.

10

WINDOW, LEFT (SEE PG 13-056)

-29шт.

11

LOCK, RIGHT DOOR (SEE PG 13-058)

-29шт.

|$18

30 020 R1

BOLT, HEX - M10x25

2шт.

|$19

30 176 R1

WASHER, FLAT - M10

2шт.

12

LOCK, LEFT DOOR (SEE PG 13-058)

-29шт.

|$21

30 020 R1

BOLT, HEX - M10x25

2шт.

|$22

30 176 R1

WASHER, FLAT - M10

2шт.

13

1304 188 H1

GASKET, REAR SIDE LOWER

2шт.

14

1304 187 H1

GASKET, REAR SIDE UPPER

2шт.

15

1300 608 H2

GASKET, RIGHT DOOR REAR

1шт.

16

1300 609 H2

GASKET, LEFT DOOR REAR

1шт.

17

1300 610 H2

GASKET, RIGHT DOOR FRONT

1шт.

18

1300 611 H2

GASKET, LEFT DOOR FRONT

1шт.

19

DOOR, RIGHT ENTRY (SEE PG 13-060)

-29шт.

|$30

30 021 R1

BOLT, HEX - M10x30

4шт.

|$31

30 184 R1

WASHER, FLAT - M10

4шт.

20

DOOR, LEFT ENTRY (SEE PG 13-064)

-29шт.

|$33

30 021 R1

BOLT, HEX - M10x30

4шт.

|$34

30 184 R1

WASHER, FLAT - M10

4шт.

21

1304 405 H1

GLASS, FRONT

1шт.

22

SEAL, FRONT GLASS - 90IN LONG

1шт.

23

TRIM, EDGE - 30IN LONG

2шт.

|$38

1301 319 H1

SEAL, BULK WINDOW

-2шт.

|$39

1262 660 H1

TRIM, BULK EDGE

-2шт.

|$$41

-1шт.

|$41

F1 - CUT REQUIRED LENGTH FROM BULK WINDOW SEAL 1301 319 H1.

-1шт.

|$$43

-1шт.

|$$44

-1шт.

|$44

F2 - CUT REQUIRED LENGTH FROM BULK EDGE TRIM 1262 660 H1.

-1шт.

|$$46

-1шт.
