Артикул
Название
Примечание
Количество
|1
114-15-00036
TRANSMISSION ASS'Y
SN: 47617-UP
1шт.
|1
114-15-00035
TRANSMISSION ASS'Y
SN: 45421-47616
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 45001-45420
1шт.
|$$4

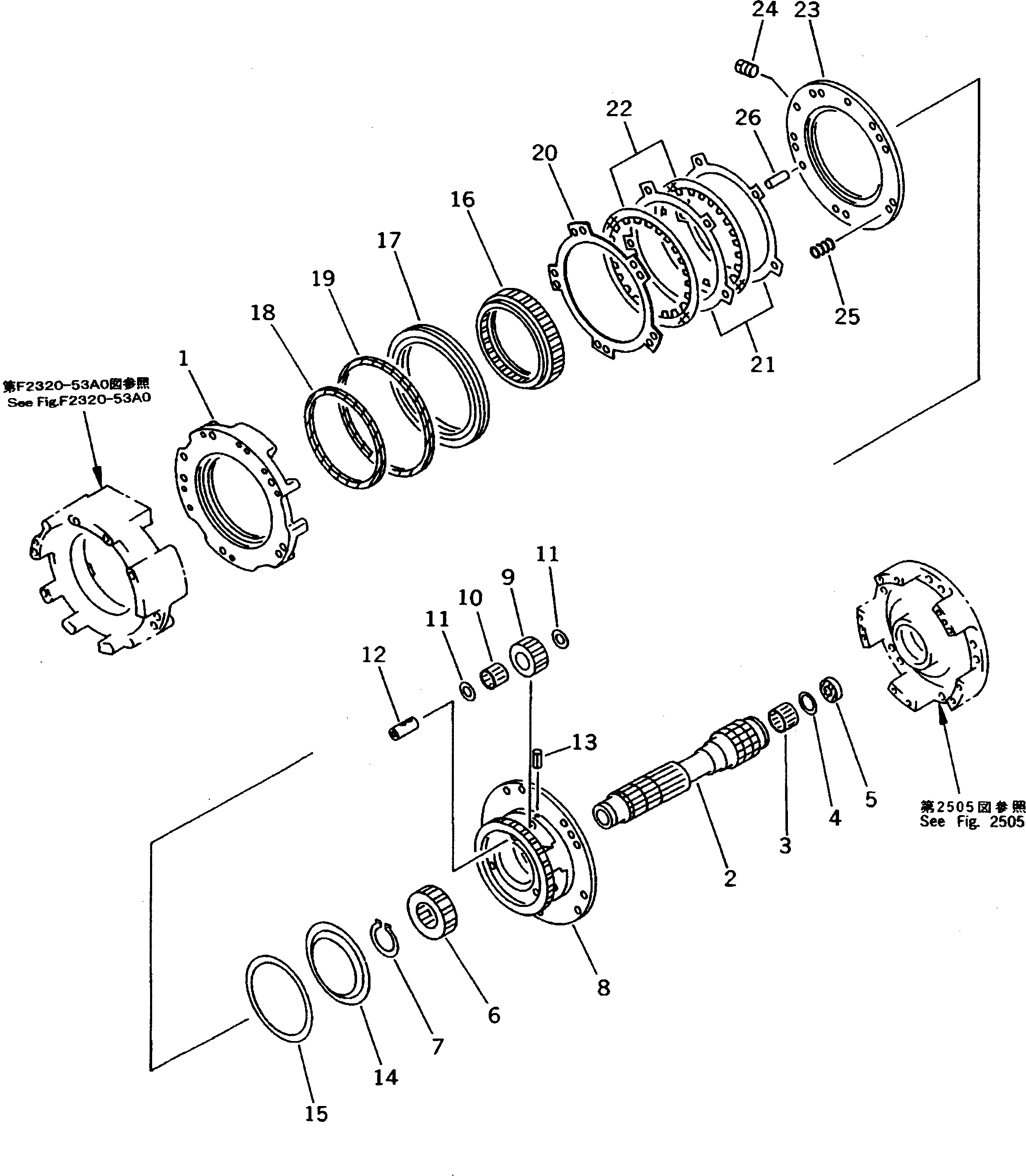

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0.
-1шт.
|1
114-15-51010
TRANSMISSION ASS'Y
SN: 47617-UP
1шт.
|1
114-15-00511
TRANSMISSION ASS'Y
SN: 45421-47616
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 45001-45420
1шт.
|$$8
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0.
-1шт.
1
113-15-21151
HOUSING,2ND
SN: 45001-UP
1шт.
2
113-15-32121
SHAFT
SN: 45001-UP
1шт.
3
113-15-29440
BEARING,NEEDLE
SN: 45001-UP
1шт.
4
113-15-29520
RING,SNAP
SN: 45001-UP
1шт.
5
113-15-39120
SEAL,OIL (K1)
SN: 45001-UP
1шт.
6
113-15-22231
GEAR¤ 36 TEETH
SN: 45001-UP
1шт.
8
113-15-32331
CARRIER
SN: (2727)-UP
1шт.
|8
113-15-32330
CARRIER
SN: 45001-(2726)
1шт.
9
113-15-22421
GEAR
SN: 45001-UP
3шт.
11
113-15-32560
WASHER,THRUST
SN: 45001-UP
6шт.
12
113-15-22510
SHAFT
SN: 45001-UP
3шт.
13
113-15-29560
PIN,SPRING
SN: 45001-UP
3шт.
14
113-15-22380
COVER
SN: 45001-UP
1шт.
16
113-15-22640
GEAR,RING
SN: 45001-UP
1шт.
17
113-15-22760
PISTON,2ND
SN: 45001-UP
1шт.
22
113-15-42711
DISC
SN: 45001-UP
2шт.
|23
104-15-00640
PLATE ASS'Y
SN: 45001-UP
1шт.
23
0
PLATE
SN: 45001-UP
1шт.
24
113-15-25490
PLUG
SN: 45001-UP
1шт.
25
113-15-32910
SPRING
SN: 45001-UP
5шт.
26
113-15-21290
PIN,DOWEL
SN: 45001-UP
2шт.
Выбрано товаров: 36
