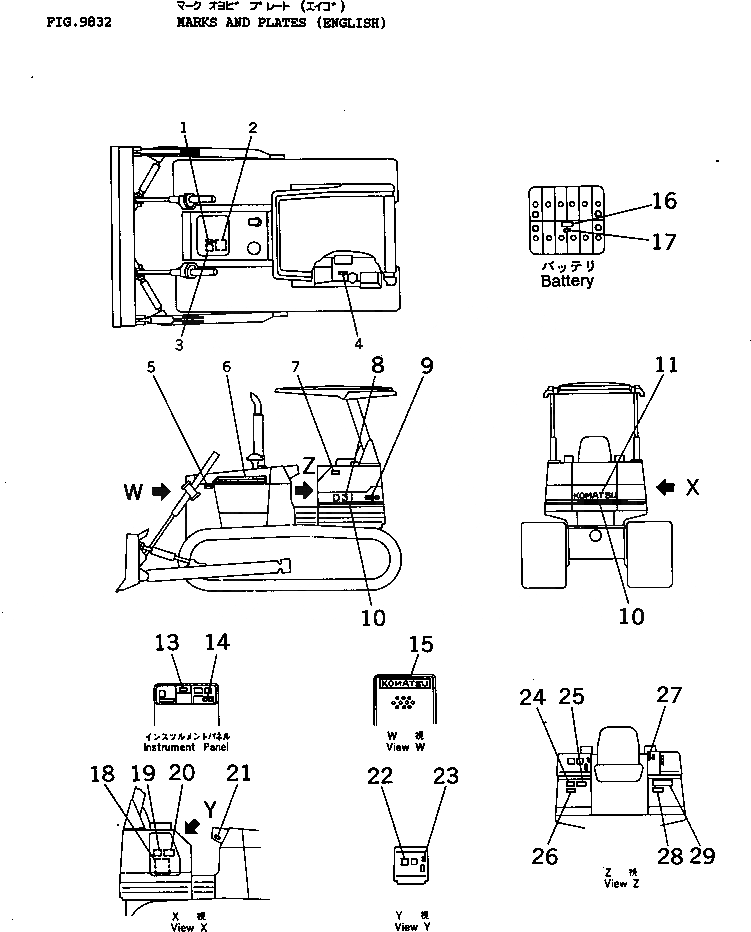

Запчасти Komatsu D31PLL-18 МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-03000

PLATE, SAFETY,RADIATOR WARNING

SN: 40001-UP

1шт.

2

09637-30161

PLATE, INSTRUCTION,AIR CLEANER

SN: 40001-UP

1шт.

3

09650-30103

PLATE, INSTRUCTION,RADIATOR

SN: 40001-UP

1шт.

4

09652-30101

PLATE, CAUTION,FUEL TANK

SN: 40001-UP

1шт.

5

09667-03000

PLATE, SAFETY,ENGINE ROOM

SN: 40001-UP

1шт.

6

113-98-41211

PLATE, MARK,LINE, L.H.

SN: 41922-UP

1шт.

6

113-98-41210

PLATE, MARK,LINE, L.H.

SN: 40001-41921

1шт.

6

113-98-41221

PLATE, MARK,LINE, R.H.

SN: 41922-UP

1шт.

6

113-98-41220

PLATE, MARK,LINE, R.H.

SN: 40001-41921

1шт.

7

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 40001-UP

1шт.

7

04418-13060

SCREW

SN: 40001-UP

4шт.

8

11G-C74-9120

PLATE, NAME,D31PLL

SN: 40001-UP

2шт.

9

09694-50180

PLATE, MARK,SYMBOL

SN: 40001-UP

2шт.

10

114-98-42161

PLATE, MARK,WHITE LINE

SN: 41922-UP

4шт.

10

114-98-42160

PLATE, MARK,WHITE LINE

SN: 40001-41921

4шт.

11

09690-50560

PLATE, MARK,KOMATSU

SN: 40001-UP

1шт.

13

09651-03000

PLATE, SAFETY,BEFORE OPERATING

SN: 40001-UP

1шт.

14

09683-30060

PLATE, OPERATING,STARTING SWITCH

SN: 40001-UP

1шт.

15

09690-50450

PLATE, MARK,KOMATSU

SN: 40001-UP

1шт.

16

09664-30081

PLATE, SAFETY,BATTERY (FOR USA)

SN: 40001-UP

1шт.

17

09664-30068

PLATE, SAFETY,BATTERY, DISTRIBUTOR (FOR USA)

SN: 40001-UP

1шт.

18

11G-98-41320

CHART, OIL

SN: 40001-UP

1шт.

19

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 40001-UP

1шт.

20

103-98-21351

PLATE, CAUTION,HYDRAULIC FILTER

SN: 40413-UP

1шт.

20

103-98-21350

PLATE, CAUTION,HYDRAULIC FILTER

SN: 40001-40412

1шт.

21

09685-00003

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 40001-UP

1шт.

22

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 40001-UP

1шт.

23

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 40001-UP

1шт.

24

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 40001-UP

1шт.

25

09654-03000

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 40001-UP

1шт.

26

09656-30080

PLATE, INSTRUCTION,ADDITIONAL FUEL STRAINER

SN: 40001-UP

1шт.

27

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 40001-UP

1шт.

28

09649-03001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 40001-UP

1шт.

29

09657-03010

PLATE, SAFETY,TRACK ADJUSTING

SN: 40001-UP

1шт.
