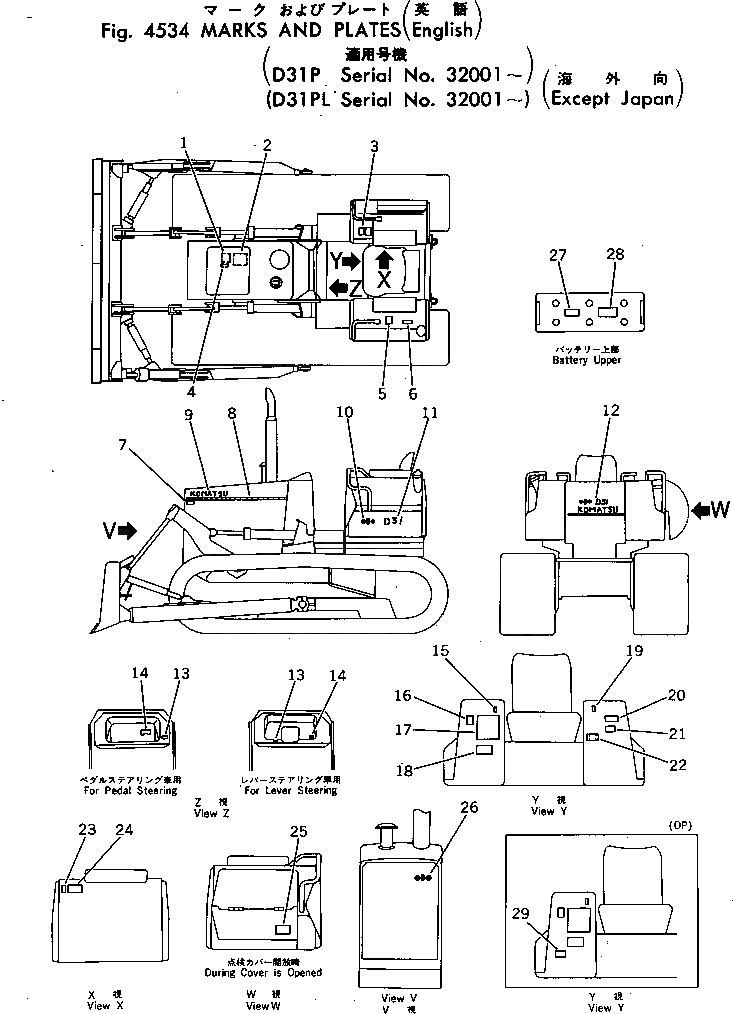

Запчасти Komatsu D31PL-17 МАРКИРОВКА (АНГЛ.) ЧАСТИ КОРПУСА
№
Артикул
Название
Примечание
Количество
1
09650-30103
PLATE, INSTRUCTION,RADIATOR
SN: 32001-UP
1шт.
2
09637-30161
PLATE, INSTRUCTION,AIR CLEANER
SN: 32001-UP
1шт.
3
09670-00004
PLATE, OPERATING,BLADE CONTROL LEVER
SN: 32001-UP
1шт.
4
09668-03000
PLATE, SAFETY,RADIATOR CAP
SN: 32001-UP
1шт.
5
09653-03000
PLATE, SAFETY,HYDRAULIC TANK
SN: 32001-UP
1шт.
6
09652-30101
PLATE, CAUTION,FUEL TANK
SN: 32001-UP
1шт.
7
09667-03000
PLATE, SAFETY,ENGINE COVER
SN: 32001-UP
1шт.
9
09690-00450
PLATE, MARK,KOMATSU
SN: 32001-UP
2шт.
10
09694-00140
PLATE, MARK
SN: 32001-UP
2шт.
11
11G-98-21121
PLATE, MARK,D31P
SN: 32000-32000
2шт.
11
11G-98-21171
PLATE, MARK,D31PL
SN: 32001-UP
2шт.
12
09692-02314
PLATE, MARK,D31P
SN: 32000-32000
1шт.
12
09692-46318
PLATE, MARK,D31PL
SN: 32001-UP
1шт.
13
09651-03000
PLATE, SAFETY,BEFORE OPERATING
SN: 32001-UP
1шт.
14
09683-30060
PLATE, OPERATING,STARTING SWITCH
SN: 32001-UP
1шт.
15
09685-00002
PLATE, OPERATING,LOCK LEVER
SN: 32001-UP
1шт.
16
09173-03000
PLATE, SAFETY,INSPECTION AND MAINTENANCE
SN: 32001-UP
1шт.
17
11G-98-31320
CHART, OIL
SN: 32001-UP
1шт.
18
09657-03010
PLATE, SAFETY,TRACK SHOE ADJUSTING
SN: 32001-UP
1шт.
19
09685-00002
PLATE, OPERATING,TRANSMISSION CONTROL LEVER
SN: 32001-UP
1шт.
20
09649-03001
PLATE, INSTRUCTION,ENGINE STOP
SN: 32001-UP
1шт.
21
113-98-21370
PLATE, OPERATING,HEATER SWITCH
SN: 32001-UP
1шт.
22
09601-00835
PLATE, NAME,(LIMITED SUPPLY)
SN: 32001-UP
1шт.
23
09685-00001
PLATE, OPERATING,PARKING BRAKE LEVER
SN: 32001-UP
1шт.
24
09654-03000
PLATE, SAFETY,STARTING AND AFTER OPERATING
SN: 32001-UP
1шт.
25
103-98-21350
PLATE, CAUTION,OIL FILTER
SN: 32001-UP
1шт.
26
10E-54-23110
PLATE, MARK
SN: 32001-UP
1шт.
27
09664-30065
PLATE, INSTRUCTION,BATTERY (USA, PUERTO RICO SPEC
SN: 32001-UP
2шт.
28
09664-30081
PLATE, INSTRUCTION,BATTERY (USA, PUERTO RICO SPEC
SN: 32001-UP
2шт.
29
09656-30080
PLATE, INSTRUCTION,ADDITIONAL FUEL STRAINER
SN: 32001-UP
1шт.
Выбрано товаров: 32
