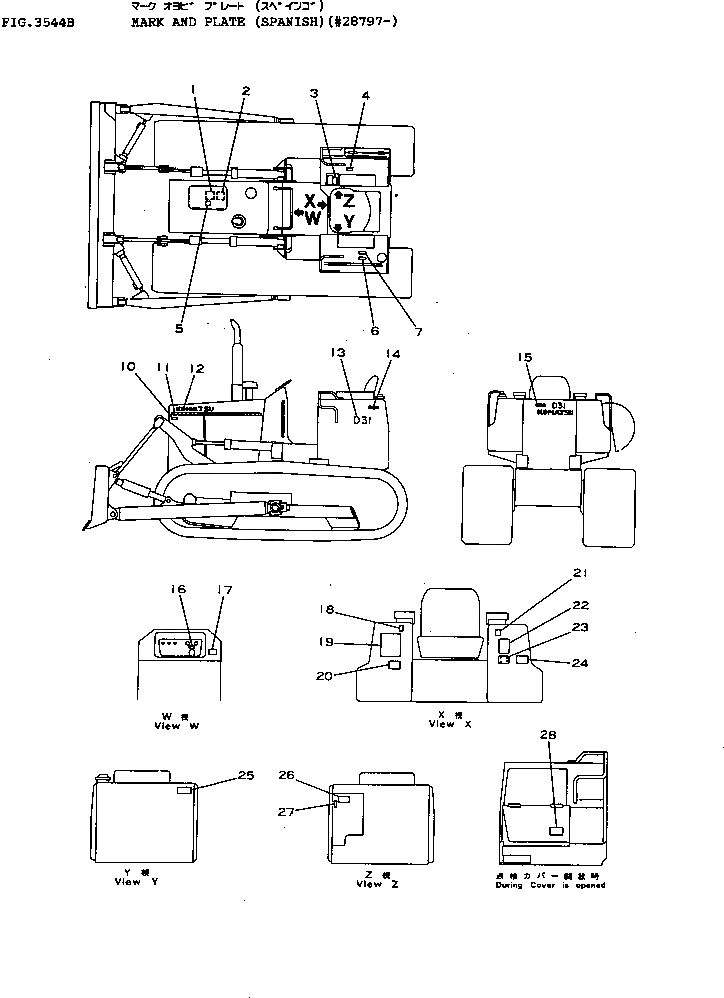

Запчасти Komatsu D31PL-16 МАРКИРОВКА (ИСПАНИЯ)(№8797-) ЧАСТИ КОРПУСА

1

09650-11103

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 28001-UP

1шт.

2

09637-70160

PLATE, INSTRUCTION,AIR CLEANER

SN: 28001-UP

1шт.

3

09670-10070

PLATE, OPERATING,LIFT AND TILT LEVER

SN: 25001-UP

1шт.

4

09653-01000

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 28001-UP

1шт.

5

09668-01000

PLATE, SAFETY,RADIATOR CAP

SN: 28001-UP

1шт.

6

09652-11101

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 28001-UP

1шт.

7

09656-11080

PLATE, INSTRUCTION,ADDITIONAL FUEL STRAINER

SN: 28001-UP

1шт.

10

09667-01000

PLATE, SAFETY,ENGINE COVER

SN: 28001-UP

1шт.

11

113-98-21220

PLATE, STRIPE,STRIPE

SN: 28001-UP

2шт.

12

09690-00450

PLATE, MARK

SN: 25001-UP

2шт.

13

11G-98-21170

PLATE, MARK,D31PL

SN: 25001-UP

2шт.

14

09694-00140

PLATE, MARK,SYMBOL

SN: 25001-UP

2шт.

15

09692-46318

PLATE, MARK

SN: 28001-UP

1шт.

16

09683-11060

PLATE, OPERATING,STARTING SWITCH

SN: 28001-UP

1шт.

17

09651-01000

PLATE, SAFETY,BEFORE OPERATING

SN: 28001-UP

1шт.

18

09685-10116

PLATE, OPERATING,LIFT AND TILT LEVER LOCK

SN: 28001-UP

1шт.

19

11G-98-21632

CHART, OIL

SN: 28001-UP

1шт.

20

09173-01000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 28001-UP

1шт.

21

09685-10116

PLATE, OPERATING,MISSION LEVER LOCK

SN: 28001-UP

1шт.

22

6130-82-4941

PLATE, CAUTION,RIBBON HEATER

SN: 28797-UP

1шт.

23

09601-10835

PLATE, NAME,(LIMITED SUPPLY)

SN: 28001-UP

1шт.

23

04418-13060

SCREW

SN: 25001-UP

4шт.

24

09657-01010

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 28001-UP

1шт.

25

09649-01001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 28797-UP

1шт.

26

09654-01000

PLATE, SAFETY,WARNING

SN: 28001-UP

1шт.

27

09685-10016

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 25001-UP

1шт.

28

113-98-21652

PLATE, CAUTION,HYDRAULIC FILTER

SN: 28001-UP

1шт.
