Артикул
Название
Примечание
Количество
|$1
114-15-00036
TRANSMISSION ASS'Y
SN: 47617-UP
1шт.
|$2
114-15-00035
TRANSMISSION ASS'Y
SN: 45421-47616
1шт.
|$3
0
TRANSMISSION ASS'Y
SN: 45001-45420
1шт.
|$$4

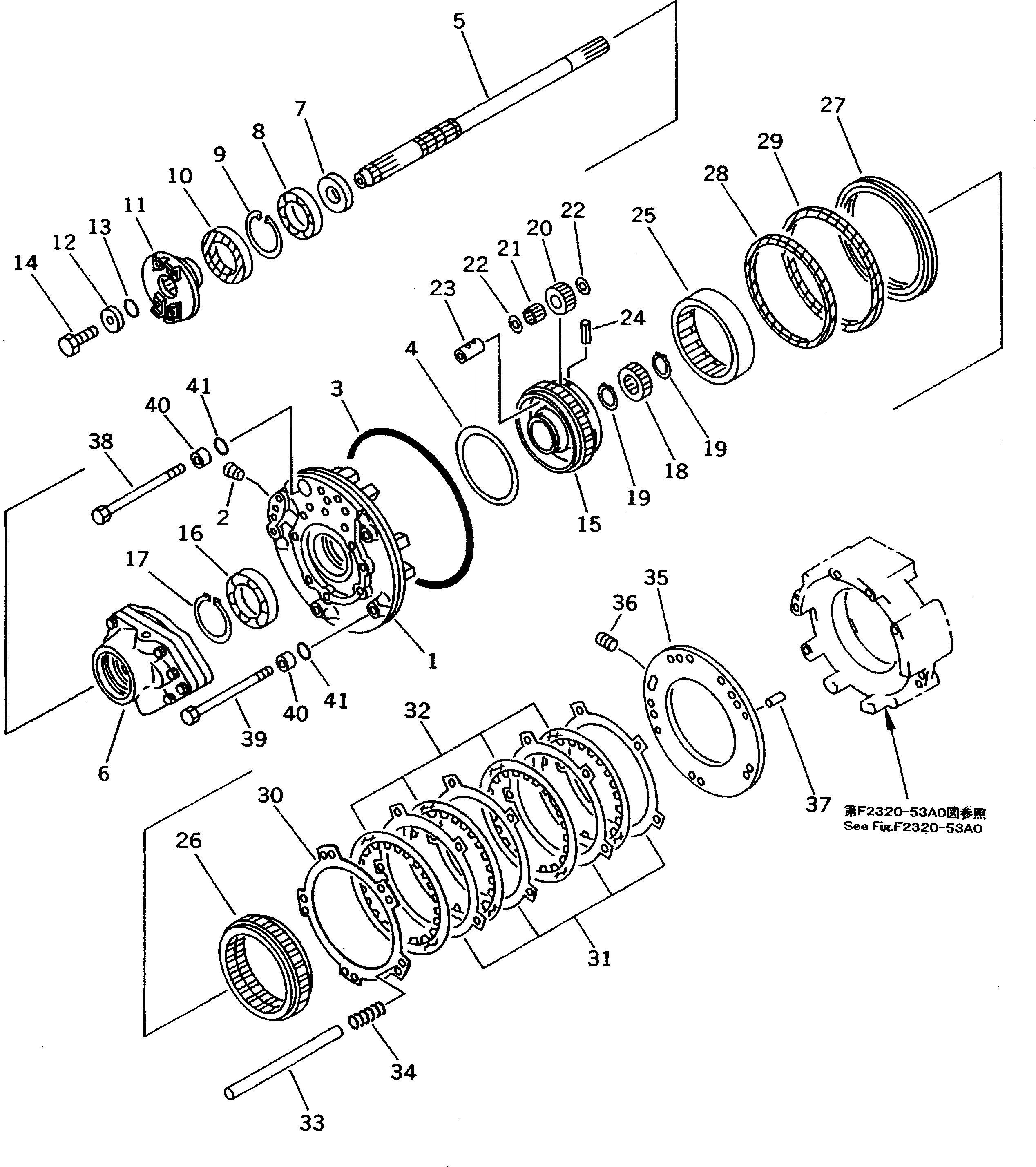

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0.
-1шт.
|$5
114-15-51010
TRANSMISSION ASS'Y
SN: 47617-UP
1шт.
|$6
114-15-00511
TRANSMISSION ASS'Y
SN: 45421-47616
1шт.
|$7
0
TRANSMISSION ASS'Y
SN: 45001-45420
1шт.
|$$8
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0.
-1шт.
|$9
113-15-00651
HOUSING ASS'Y,REVERSE
SN: 45001-UP
1шт.
1
0
HOUSING
SN: 45001-UP
1шт.
4
07018-01305
RING,SEAL
SN: 45001-UP
1шт.
5
113-15-42112
SHAFT
SN: 45001-UP
1шт.
7
113-15-22140
SPACER
SN: 45001-UP
1шт.
11
113-15-42150
COUPLING
SN: 45001-UP
1шт.
12
103-15-32150
HOLDER
SN: 45001-UP
1шт.
15
113-15-42311
CARRIER
SN: 45001-UP
1шт.
16
06000-06011
BEARING
SN: 45001-UP
1шт.
18
113-15-22211
GEAR, 24 TEETH
SN: 45001-UP
1шт.
19
113-15-22950
RING,SNAP
SN: 45001-UP
2шт.
20
113-15-22411
GEAR, 21 TEETH
SN: 45001-UP
4шт.
22
113-15-32560
WASHER,THRUST
SN: 45001-UP
8шт.
23
113-15-22510
SHAFT
SN: 45001-UP
4шт.
24
113-15-29560
PIN,SPRING
SN: 45001-UP
4шт.
25
113-15-42610
GEAR,RING
SN: 45001-UP
1шт.
26
113-15-22620
GEAR,RING
SN: 45001-UP
1шт.
27
113-15-22760
PISTON,REVERSE
SN: 45001-UP
1шт.
32
113-15-42711
DISC
SN: 45001-UP
4шт.
33
113-15-31270
PIN
SN: 45001-UP
5шт.
34
113-15-42930
SPRING
SN: 45001-UP
5шт.
|$44
113-15-00240
PLATE ASS'Y
SN: 45001-UP
1шт.
35
0
PLATE
SN: 45001-UP
1шт.
36
125-15-11230
PLUG
SN: 45001-UP
1шт.
37
113-15-21290
PIN,DOWEL
SN: 45001-UP
2шт.
38
113-15-21241
BOLT
SN: 45001-UP
1шт.
39
113-15-21251
BOLT
SN: 45001-UP
4шт.
40
113-15-21260
WASHER
SN: 45001-UP
5шт.
Выбрано товаров: 51
