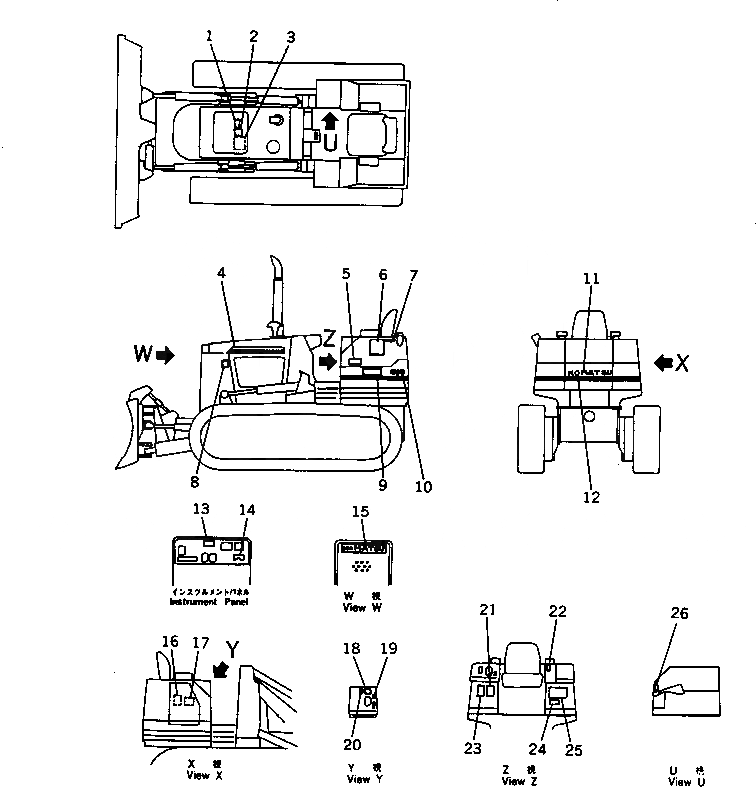

Запчасти Komatsu D31P-18A МАРКИРОВКА (ПОРТУГАЛ.) (ШУМОПОДАВЛ. ДЛЯ EC)(№79-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-02000

PLATE, SAFETY,RADIATOR WARNING

SN: 41759-UP

1шт.

2

09650-21103

PLATE, INSTRUCTION,RADIATOR

SN: 41759-UP

1шт.

3

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

SN: 41759-UP

1шт.

4

113-98-41211

PLATE, MARK,LINE, L.H.

SN: 41922-UP

1шт.

4

113-98-41210

PLATE, MARK,LINE, L.H.

SN: 41759-41921

1шт.

4

113-98-41221

PLATE, MARK,LINE, R.H.

SN: 41922-UP

1шт.

4

113-98-41220

PLATE, MARK,LINE, R.H.

SN: 41759-41921

1шт.

5

09602-22635

PLATE, NAME,(LIMITED SUPPLY)

SN: 41759-UP

1шт.

5

04418-13060

SCREW

SN: 41759-UP

4шт.

6

114-98-41520

CHART, OIL

SN: 41759-UP

1шт.

7

09652-21101

PLATE, CAUTION,FUEL TANK

SN: 41759-UP

1шт.

8

09667-02000

PLATE, SAFETY,ENGINE ROOM

SN: 41759-UP

1шт.

9

11G-98-41220

PLATE, MARK,D31P

SN: 41759-UP

2шт.

10

09694-50180

PLATE, MARK,SYMBOL

SN: 41759-UP

2шт.

11

09690-50560

PLATE, MARK,KOMATSU

SN: 41759-UP

1шт.

12

114-98-42161

PLATE, MARK,WHITE LINE

SN: 41922-UP

4шт.

12

114-98-42160

PLATE, MARK,WHITE LINE

SN: 41759-41921

4шт.

13

09651-02000

PLATE, SAFETY,BEFORE OPERATING

SN: 41759-UP

1шт.

14

09683-21060

PLATE, OPERATING,STARTING SWITCH

SN: 41759-UP

1шт.

15

09690-50450

PLATE, MARK,KOMATSU

SN: 41759-UP

1шт.

16

09653-02000

PLATE, SAFETY,HYDRAULIC TANK

SN: 41759-UP

1шт.

17

103-98-21551

PLATE, CAUTION,HYDRAULIC FILTER

SN: 41759-UP

1шт.

18

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 41759-UP

1шт.

19

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 41759-UP

1шт.

20

114-98-21150

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 41759-UP

1шт.

21

09654-02000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 41759-UP

1шт.

22

09685-00002

PLATE, OPERATING,TRANSMISSION CONTROL LEVER LOC

SN: 41759-UP

1шт.

23

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 41759-UP

1шт.

24

09649-02001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 41759-UP

1шт.

25

09657-02011

PLATE, SAFETY,TRACK ADJUSTING

SN: 41759-UP

1шт.

26

09685-00001

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 41759-UP

1шт.
