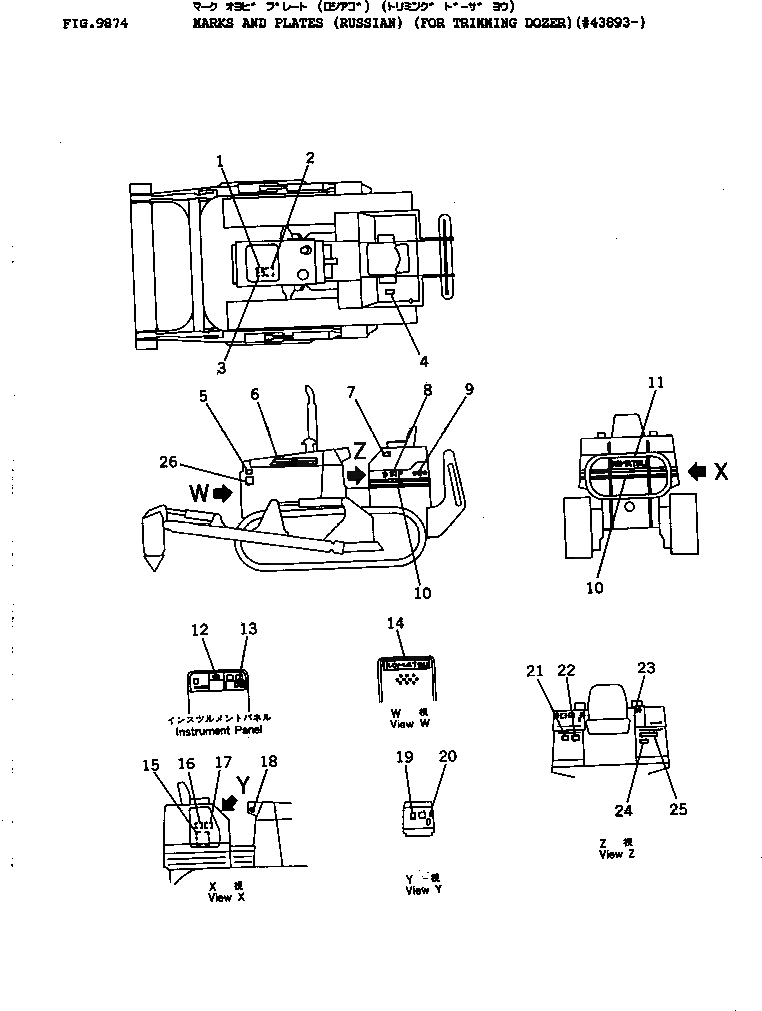

Запчасти Komatsu D31P-18 МАРКИРОВКА (РОССИЯ) (ДЛЯ TОБОД КОЛЕСАMING DOZER)(№89-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-04000

PLATE, SAFETY,RADIATOR WARNING

SN: 43893-UP

1шт.

2

09637-40162

PLATE, INSTRUCTION,AIR CLEANER

SN: 43893-UP

1шт.

3

09650-42103

PLATE, INSTRUCTION,RADIATOR

SN: 43893-UP

1шт.

4

09652-40102

PLATE, CAUTION,FUEL TANK

SN: 43893-UP

1шт.

5

09667-04000

PLATE, SAFETY,ENGINE ROOM

SN: 43893-UP

1шт.

6

113-98-41211

PLATE, MARK,LINE, L.H.

SN: 43893-UP

1шт.

6

113-98-41221

PLATE, MARK,LINE, R.H.

SN: 43893-UP

1шт.

7

09601-40835

PLATE, NAME,(LIMITED SUPPLY)

SN: 43893-UP

1шт.

7

04418-13060

SCREW

SN: 43893-UP

4шт.

8

11G-98-41220

PLATE, MARK,D31P

SN: 43893-UP

2шт.

9

09694-50180

PLATE, MARK,SYMBOL

SN: 43893-UP

2шт.

10

114-98-42161

PLATE, MARK,WHITE LINE

SN: 43893-UP

4шт.

11

09690-50560

PLATE, MARK,KOMATSU

SN: 43893-UP

1шт.

12

09651-04000

PLATE, SAFETY,BEFORE OPERATING

SN: 43893-UP

1шт.

13

09683-40060

PLATE, OPERATING,STARTING SWITCH

SN: 43893-UP

1шт.

14

09690-50450

PLATE, MARK,KOMATSU

SN: 43893-UP

1шт.

15

114-98-41950

CHART, OIL

SN: 43893-UP

1шт.

16

09653-04001

PLATE, SAFETY,HYDRAULIC TANK

SN: 43893-UP

1шт.

17

104-98-32820

PLATE, CAUTION,HYDRAULIC FILTER

SN: 43893-UP

1шт.

18

09685-00003

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 43893-UP

1шт.

19

09670-00005

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 43893-UP

1шт.

20

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 43893-UP

1шт.

21

09173-04000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 43893-UP

1шт.

22

09654-04000

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 43893-UP

1шт.

23

09685-00002

PLATE, OPERATING,TRANSMISSION LOCK LEVER

SN: 43893-UP

1шт.

24

09649-04001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 43893-UP

1шт.

25

09657-04010

PLATE, SAFETY,TRACK ADJUSTING

SN: 43893-UP

1шт.

26

11G-54-36120

PLATE, CAUTION,LIFTING

SN: 43893-UP

1шт.
