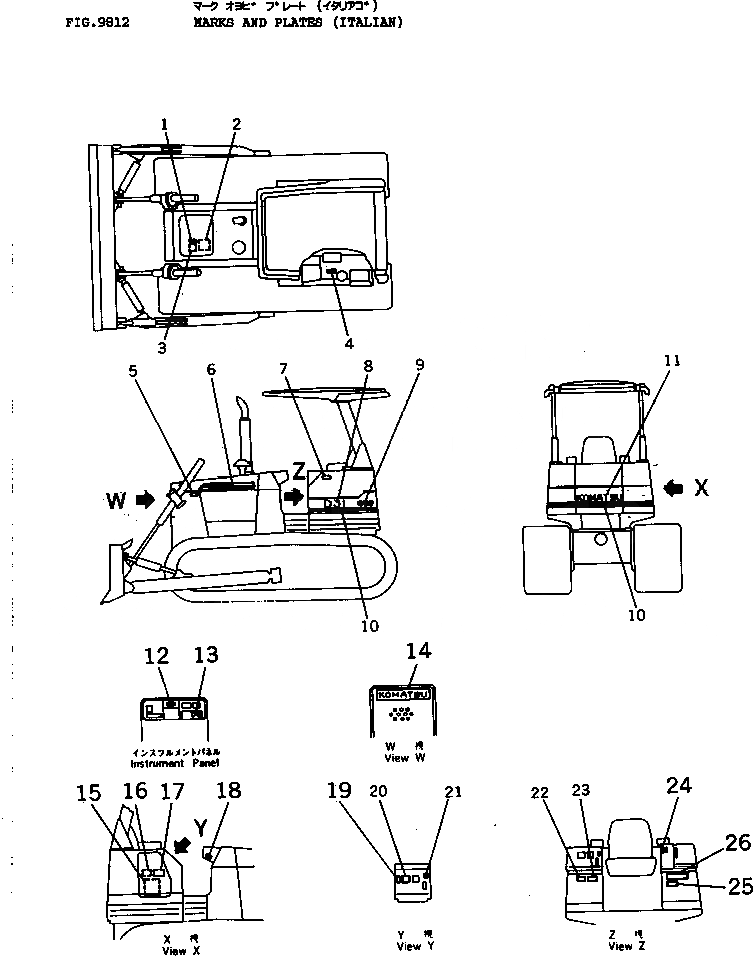

Запчасти Komatsu D31P-18 МАРКИРОВКА (ИТАЛИЯ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-06000

PLATE, SAFETY,RADIATOR WARNING

SN: 40001-UP

1шт.

2

09637-40261

PLATE, INSTRUCTION,AIR CLEANER

SN: 40001-UP

1шт.

3

09650-61103

PLATE, INSTRUCTION,RADIATOR

SN: 40001-UP

1шт.

4

09652-61101

PLATE, CAUTION,FUEL TANK

SN: 40001-UP

1шт.

5

09667-06000

PLATE, SAFETY,ENGINE ROOM

SN: 40001-UP

1шт.

6

113-98-41211

PLATE, MARK,LINE, L.H.

SN: 40001-UP

1шт.

6

113-98-41221

PLATE, MARK,LINE, R.H.

SN: 40001-UP

1шт.

7

09601-60835

PLATE, NAME,(LIMITED SUPPLY)

SN: 40001-UP

1шт.

7

04418-13060

SCREW

SN: 40001-UP

4шт.

8

11G-98-41220

PLATE, MARK,D31P

SN: 40001-UP

2шт.

9

09694-50180

PLATE, MARK,SYMBOL

SN: 40001-UP

2шт.

10

114-98-42161

PLATE, MARK,WHITE LINE

SN: 40001-UP

4шт.

11

09690-50560

PLATE, MARK,KOMATSU

SN: 40001-UP

1шт.

12

09651-06000

PLATE, SAFETY,BEFORE OPERATING

SN: 40001-UP

1шт.

13

09683-61060

PLATE, OPERATING,STARTING SWITCH

SN: 40001-UP

1шт.

14

09690-50450

PLATE, MARK,KOMATSU

SN: 40001-UP

1шт.

15

114-98-41660

CHART, OIL

SN: 40001-UP

1шт.

16

09653-06000

PLATE, SAFETY,HYDRAULIC TANK

SN: 40001-UP

1шт.

17

103-98-41650

PLATE, CAUTION,HYDRAULIC FILTER

SN: 40001-UP

1шт.

18

09685-00003

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 40001-UP

1шт.

19

114-98-21150

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 40001-UP

1шт.

20

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 40001-UP

1шт.

21

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 40001-UP

1шт.

22

09173-06000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 40001-UP

1шт.

23

09654-06000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 40001-UP

1шт.

24

09685-00002

PLATE, OPERATING,TRANSMISSION LOCK LEVER

SN: 40001-UP

1шт.

25

09649-06001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 40001-UP

1шт.

26

09657-06011

PLATE, SAFETY,TRACK ADJUSTING

SN: 40001-UP

1шт.
