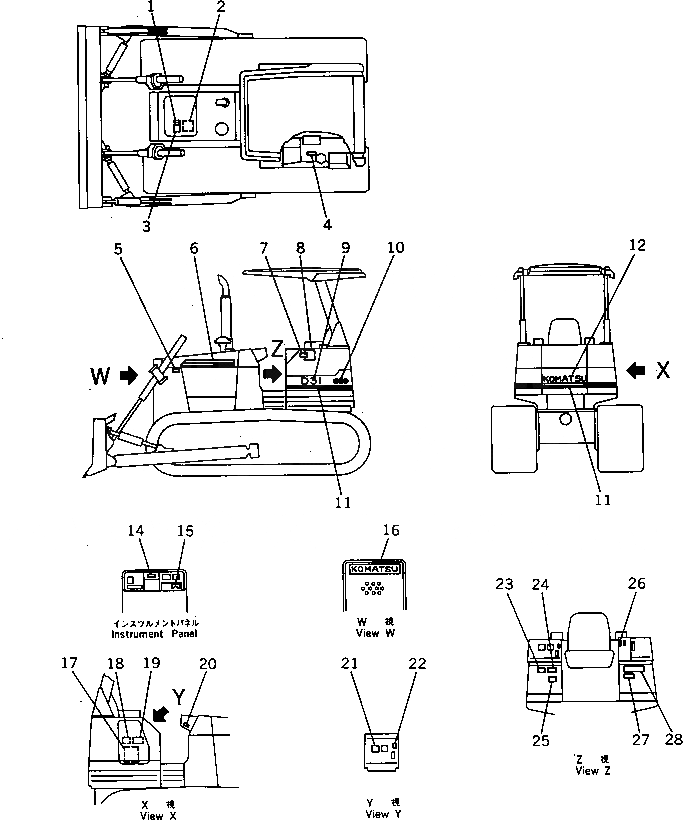

Запчасти Komatsu D31P-18 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-00100

PLATE¤ SAFETY,RADIATOR WARNING

SN: 40001-UP

1шт.

2

09637-00161

PLATE¤ INSTRUCTION,AIR CLEANER

SN: 40001-UP

1шт.

3

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

SN: 40001-UP

1шт.

4

09652-01101

PLATE¤ CAUTION,FUEL TANK

SN: 40001-UP

1шт.

5

09667-00100

PLATE¤ SAFETY,ENGINE ROOM

SN: 40001-UP

1шт.

6

113-98-41211

PLATE¤ MARK,LINE¤ L.H.

SN: 41922-UP

1шт.

|6

113-98-41210

PLATE¤ MARK,LINE¤ L.H.

SN: 40001-41921

1шт.

|6

113-98-41221

PLATE¤ MARK,LINE¤ R.H.

SN: 41922-UP

1шт.

|6

113-98-41220

PLATE¤ MARK,LINE¤ R.H.

SN: 40001-41921

1шт.

7

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 40001-UP

1шт.

|7

04418-13060

SCREW

SN: 40001-UP

4шт.

8

11G-98-41210

PLATE¤ DATA

SN: 40001-UP

1шт.

9

11G-98-41220

PLATE¤ MARK,D31P

SN: 40001-UP

2шт.

10

09694-50180

PLATE¤ MARK,SYMBOL

SN: 40001-UP

2шт.

11

114-98-42161

PLATE¤ MARK,WHITE LINE

SN: 41922-UP

4шт.

|11

114-98-42160

PLATE¤ MARK,WHITE LINE

SN: 40001-41921

4шт.

12

09690-50560

PLATE¤ MARK,KOMATSU

SN: 40001-UP

1шт.

14

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

SN: 40001-UP

1шт.

15

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

SN: 40001-UP

1шт.

16

09690-50450

PLATE¤ MARK,KOMATSU

SN: 40001-UP

1шт.

17

11G-98-41250

CHART¤ OIL

SN: 40001-UP

1шт.

18

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 40001-UP

1шт.

19

103-98-21251

PLATE¤ INSTRUCTION,HYDRAULIC FILTER

SN: 40413-UP

1шт.

|19

103-98-21250

PLATE¤ CAUTION,HYDRAULIC FILTER

SN: 40001-40412

1шт.

20

09685-00003

PLATE¤ OPERATING,PARKING BRAKE LEVER

SN: 40001-UP

1шт.

21

09670-00004

PLATE¤ OPERATING,BLADE CONTROL LEVER

SN: 40001-UP

1шт.

22

09685-00002

PLATE¤ OPERATING,BLADE CONTROL LEVER LOCK

SN: 40001-UP

1шт.

23

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

SN: 40001-UP

1шт.

24

09654-00100

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 40001-UP

1шт.

25

6130-81-9910

PLATE¤ CAUTION,COLD WEATHER B SPEC.

SN: 40001-UP

1шт.

26

09685-00002

PLATE¤ OPERATING,TRANSMISSION LOCK LEVER

SN: 40001-UP

1шт.

27

09649-00101

PLATE¤ INSTRUCTION,ENGINE STOPPED

SN: 40001-UP

1шт.

28

09657-00110

PLATE¤ SAFETY,TRACK ADJUSTING

SN: 40001-UP

1шт.

29

09661-00081

PLATE¤ INSTRUCTION,(FOR SHAKEN-BUHIN)

SN: 40001-UP

1шт.

30

09679-02002

PLATE¤ OPERATING,(FOR SHAKEN-BUHIN)

SN: 40001-UP

1шт.

31

113-C60-1210

PLATE¤ CAUTION,(FOR SHAKEN-BUHIN)

SN: 40001-UP

1шт.
