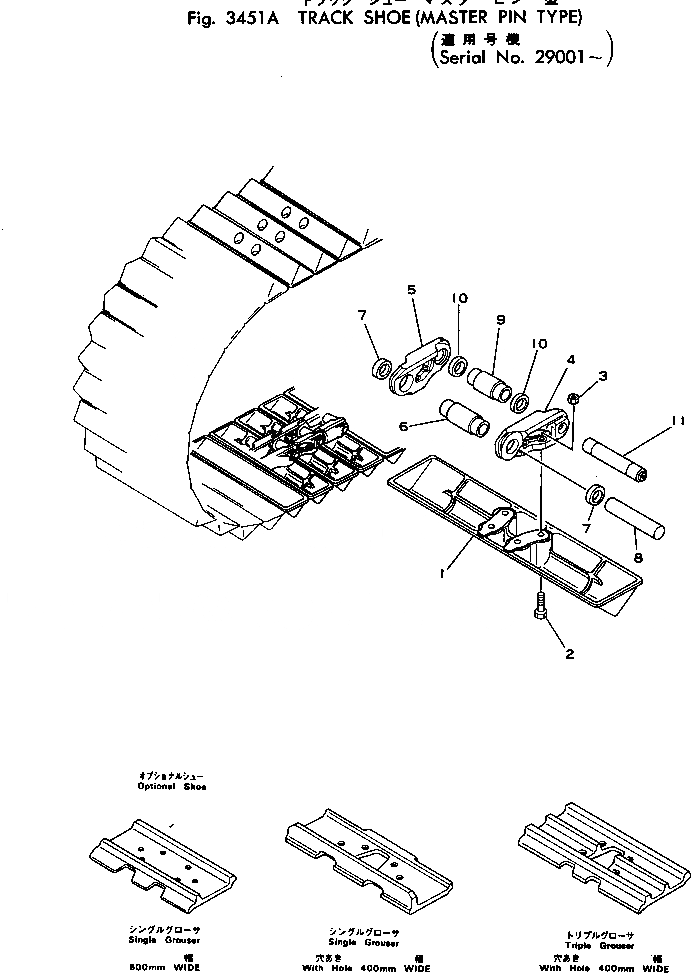

Запчасти Komatsu D31P-16A ГУСЕНИЦЫ (СО СЦЕПНЫМ ПАЛЬЦЕМ)(№9-) ГУСЕНИЦЫ

|$$1

SWAMP 600MM

-1шт.

|$1

11G-32-01002

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-820-7110

SHOE,TRACK

SN: 28001-UP

82шт.

2

203-32-21220

BOLT, SHOE (KIT)

SN: 29001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 28001-UP

328шт.

|$5

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

4

112-32-21120

LINK,TRACK, L.H.

SN: 29001-UP

82шт.

5

112-32-21130

LINK,TRACK, R.H.

SN: 29001-UP

82шт.

6

112-32-11143

BUSHING,REGULAR

SN: 29001-UP

78шт.

7

110-32-11572

SEAL,DUST, REGULAR, W-TYPE

SN: 29001-UP

156шт.

8

112-32-11154

PIN,REGULAR

SN: 29001-UP

78шт.

9

112-32-11173

BUSHING,MASTER

SN: 29001-UP

4шт.

10

110-32-11582

SEAL,DUST, MASTER, W-TYPE

SN: 29001-UP

8шт.

11

112-32-11192

PIN,MASTER

SN: 29001-UP

4шт.

|$$15

SINGLE 600MM

-1шт.

1

11G-32-01102

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

11G-32-21110

SHOE,TRACK

SN: 28001-UP

82шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 28001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 28001-UP

328шт.

4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$21

SINGLE 400MM,WITH HOLE

-1шт.

1

11G-32-01402

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11430

SHOE,TRACK

SN: 28001-UP

82шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 28001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 28001-UP

328шт.

4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$27

TRIPLE 400MM,WITH HOLE

-1шт.

1

11G-32-01302

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11420

SHOE,TRACK

SN: 28001-UP

82шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 28001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 28001-UP

328шт.

4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$33

SERVICE KIT

-1шт.

2

203-32-05020

SHOE BOLT AND NUT K.

SN: 29001-UP

1шт.

2

203-32-21220

BOLT, SHOE

SN: 29001-UP

50шт.

3

01803-01420

NUT,SHOE

SN: 25001-UP

50шт.

2

110-32-05010

SHOE BOLT AND NUT K.,(EXCEPT SWAMP)

SN: 28001-UP

1шт.

2

110-32-11411

BOLT, SHOE

SN: 28001-UP

50шт.

3

01803-01420

NUT,SHOE

SN: 28001-UP

50шт.

|$$40

OVERSIZE PARTS

-1шт.

|$$41

0.10MM OVERSIZE

-1шт.

6

112-98-09112

BUSHING,REGULAR

SN: 29001-UP

-2шт.

8

112-98-09013

PIN,REGULAR

SN: 29001-UP

-2шт.

9

112-98-09142

BUSHING,MASTER

SN: 29001-UP

-2шт.

11

112-98-09042

PIN,MASTER

SN: 29001-UP

-2шт.

|$$46

0.18MM OVERSIZE

-1шт.

6

112-98-09132

BUSHING,REGULAR

SN: 29001-UP

-2шт.

8

112-98-09033

PIN,REGULAR

SN: 29001-UP

-2шт.

9

112-98-09162

BUSHING,MASTER

SN: 29001-UP

-2шт.

11

112-98-09062

PIN,MASTER

SN: 29001-UP

-2шт.
