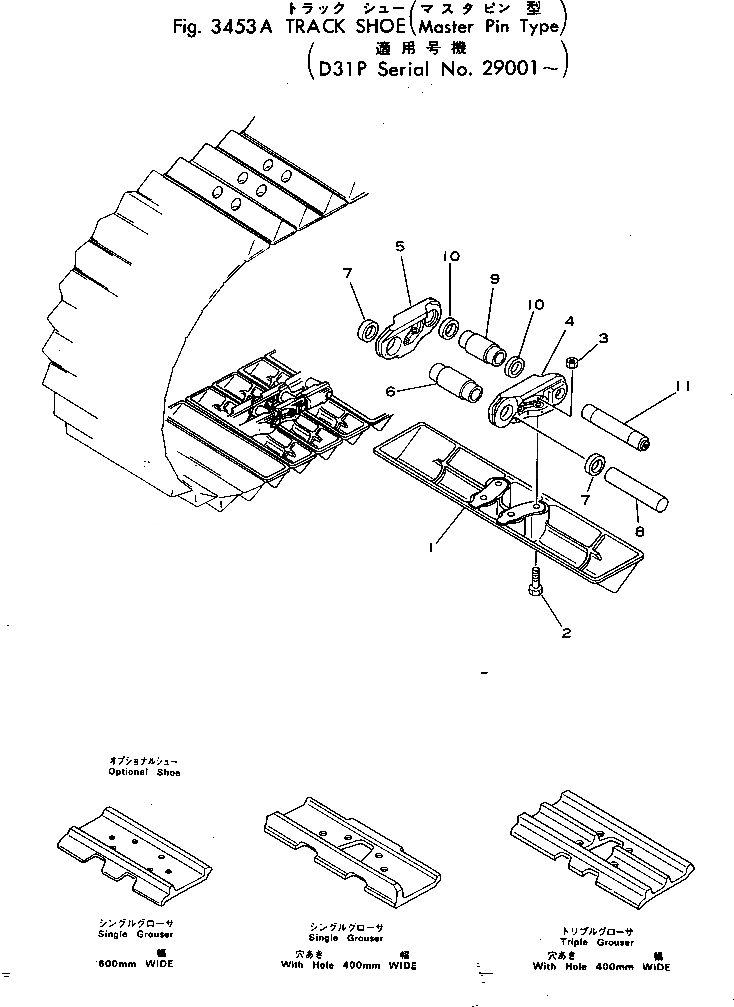

Запчасти Komatsu D31P-16 ГУСЕНИЦЫ (СО СЦЕПНЫМ ПАЛЬЦЕМ)(№9-) ГУСЕНИЦЫ

|$$1

SWAMP 600MM

-1шт.

|1

11G-32-01002

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-820-7110

SHOE,TRACK

SN: 25001-UP

82шт.

2

203-32-21220

BOLT¤ SHOE (KIT)

SN: 29001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

328шт.

|4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

4

112-32-21120

LINK,TRACK¤ L.H.

SN: 29001-UP

82шт.

5

112-32-21130

LINK,TRACK¤ R.H.

SN: 29001-UP

82шт.

6

112-32-11143

BUSHING,REGULAR

SN: 29001-UP

78шт.

7

110-32-11572

SEAL,DUST¤ REGULAR¤ W-TYPE

SN: 29001-UP

156шт.

8

112-32-11154

PIN,REGULAR

SN: 29001-UP

78шт.

9

112-32-11173

BUSHING,MASTER

SN: 29001-UP

4шт.

10

110-32-11582

SEAL,DUST¤ MASTER¤ W-TYPE

SN: 29001-UP

8шт.

11

112-32-11192

PIN,MASTER

SN: 29001-UP

4шт.

|$$15

SERVICE KIT

-1шт.

|1

203-32-05020

SHOE BOLT AND NUT K.

SN: 29001-UP

1шт.

2

203-32-21220

BOLT¤ SHOE

SN: 29001-UP

50шт.

3

01803-01420

NUT,SHOE

SN: 25001-UP

50шт.

|$$19

SINGLE 600MM

-1шт.

|1

11G-32-01102

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

11G-32-21110

SHOE,TRACK

SN: 25001-UP

82шт.

2

110-32-11411

BOLT¤ SHOE (KIT)

SN: 25001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

328шт.

4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$25

SINGLE 400MM{WITH HOLE}

-1шт.

|1

11G-32-01402

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11430

SHOE,TRACK

SN: 25001-UP

82шт.

2

110-32-11411

BOLT¤ SHOE (KIT)

SN: 25001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

328шт.

4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$31

TRIPLE 400MM{WITH HOLE}

-1шт.

|1

11G-32-01302

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11420

SHOE,TRACK

SN: 25001-UP

82шт.

2

110-32-11411

BOLT¤ SHOE (KIT)

SN: 25001-UP

328шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

328шт.

4

11G-A70-0012

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$37

SERVICE KIT{(EXCEPT SWAMP)}

-1шт.

|1

110-32-05010

SHOE BOLT AND NUT K.

SN: 25001-UP

1шт.

2

110-32-11411

BOLT¤ SHOE,TRACK

SN: 25001-UP

50шт.

3

01803-01420

NUT

SN: 25001-UP

50шт.

|$$41

OVERSIZE PARTS

-1шт.

|$$42

0.10MM OVERSIZE

-1шт.

6

112-98-09112

BUSHING,REGULAR

SN: 29001-UP

-2шт.

8

112-98-09013

PIN,REGULAR

SN: 29001-UP

-2шт.

9

112-98-09142

BUSHING,MASTER

SN: 29001-UP

-2шт.

11

112-98-09042

PIN,MASTER

SN: 29001-UP

-2шт.

|$$47

0.18MM OVERSIZE

-1шт.

6

112-98-09132

BUSHING,REGULAR

SN: 29001-UP

-2шт.

8

112-98-09033

PIN,REGULAR

SN: 29001-UP

-2шт.

9

112-98-09162

BUSHING,MASTER

SN: 29001-UP

-2шт.

11

112-98-09062

PIN,MASTER

SN: 29001-UP

-2шт.
