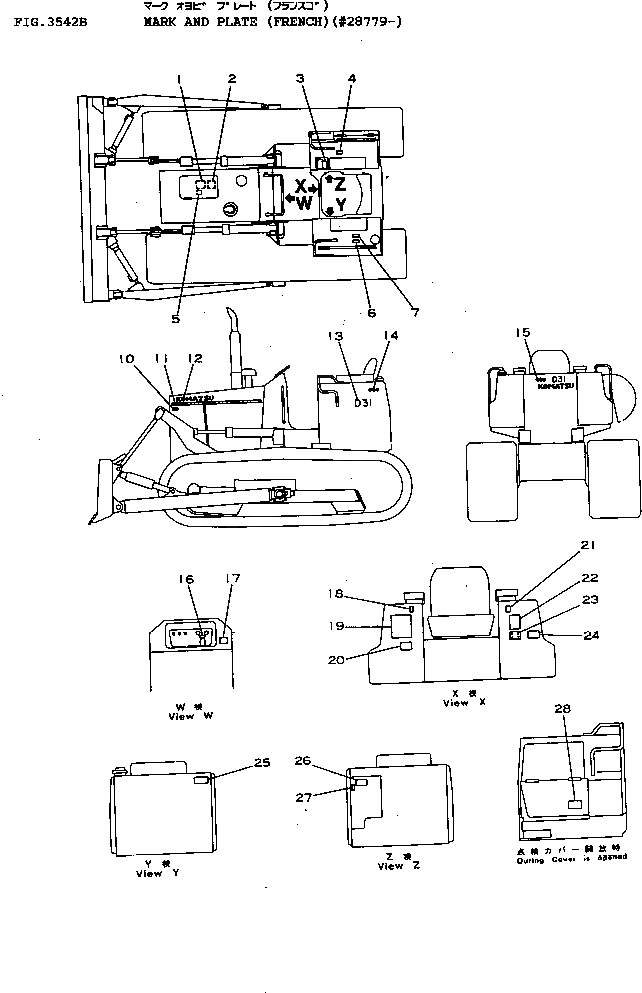

Запчасти Komatsu D31P-16 МАРКИРОВКА (ФРАНЦИЯ)(№8779-) ЧАСТИ КОРПУСА

1

09650-50103

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 28001-UP

1шт.

2

09637-30260

PLATE, INSTRUCTION,AIR CLEANER

SN: 28001-UP

1шт.

3

09670-50070

PLATE, OPERATING,LIFT AND TILT LEVER

SN: 25001-UP

1шт.

4

09653-05000

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 28001-UP

1шт.

5

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 28001-UP

1шт.

6

09652-51101

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 28001-UP

1шт.

7

09656-51080

PLATE, INSTRUCTION,ADDITIONAL FUEL STRAINER

SN: 28001-UP

1шт.

10

09667-05000

PLATE, SAFETY,ENGINE COVER

SN: 28001-UP

1шт.

11

113-98-21220

PLATE, STRIPE,STRIPE

SN: 28001-UP

2шт.

12

09690-00450

PLATE, MARK,KOMATSU

SN: 25001-UP

2шт.

13

11G-98-21120

PLATE, MARK,(D31P)

SN: 25001-UP

2шт.

14

09694-00140

PLATE, MARK,SYMBOL

SN: 25001-UP

2шт.

15

09692-02314

PLATE, MARK

SN: 28001-UP

1шт.

16

09683-51060

PLATE, OPERATING,STARTING SWITCH

SN: 28001-UP

1шт.

17

09651-05000

PLATE, SAFETY,BEFORE OPERATING

SN: 28001-UP

1шт.

18

09685-50116

PLATE, OPERATING,LIFT AND TILT LEVER LOCK

SN: 28001-UP

1шт.

19

11G-98-21432

CHART, OIL

SN: 28001-UP

1шт.

20

09173-05000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 28001-UP

1шт.

21

09685-50116

PLATE, OPERATING,MISSION LEVER LOCK

SN: 28001-UP

1шт.

22

6130-82-4951

PLATE, CAUTION,RIBBON HEATER

SN: 28779-UP

1шт.

23

09601-50835

PLATE, NAME,(LIMITED SUPPLY)

SN: 28001-UP

1шт.

23

04418-13060

SCREW

SN: 25001-UP

4шт.

24

09657-05010

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 28001-UP

1шт.

25

09649-05001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 28779-UP

1шт.

26

09654-05000

PLATE, SAFETY,BEFORE AND AFTER OPERATION

SN: 28001-UP

1шт.

27

09685-50016

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 25001-UP

1шт.

28

113-98-21452

PLATE, CAUTION,HYDRAULIC FILTER

SN: 28001-UP

1шт.
