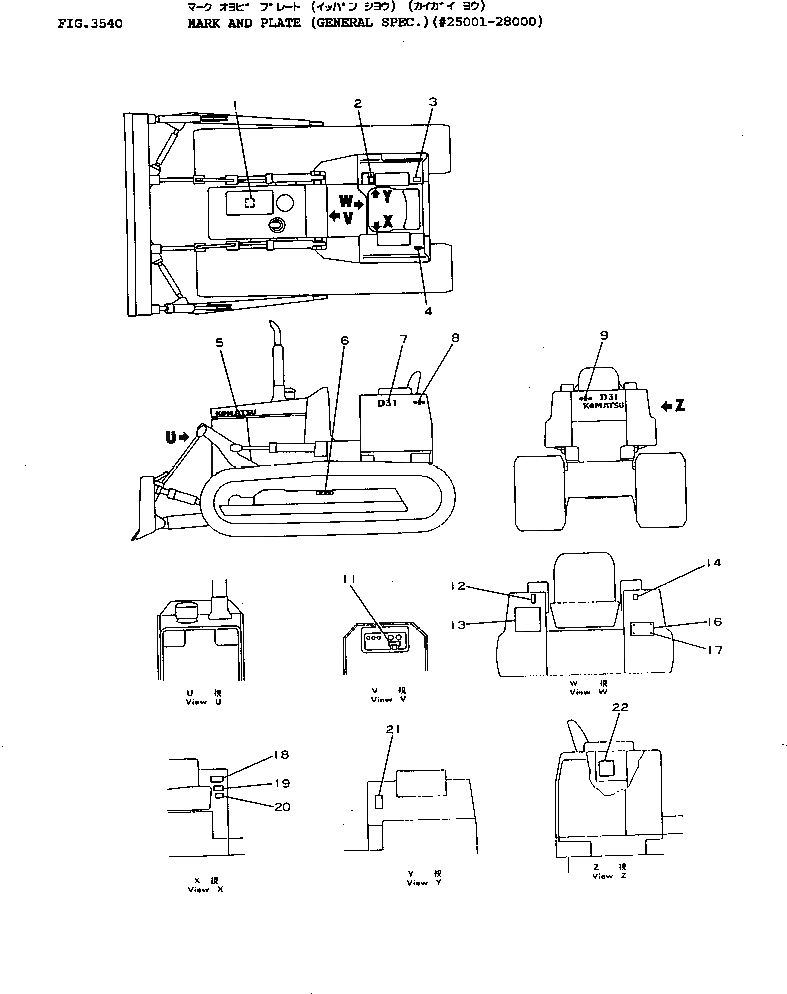

Запчасти Komatsu D31P-16 МАРКИРОВКА (ОСНОВН. СПЕЦ-Я.)(№-8) ЧАСТИ КОРПУСА

1

113-98-21160

PLATE, INSTRUCTION,RADIATOR

SN: 25001-28000

1шт.

2

09670-38070

PLATE, OPERATING,LIFT AND TILT LEVER

SN: 25001-@

1шт.

3

09653-00080

PLATE, SAFETY,HYDRAULIC TANK

SN: 25001-28000

1шт.

4

09652-00101

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 25001-28000

1шт.

5

09690-00450

PLATE, MARK,KOMATSU

SN: 25001-@

2шт.

6

09657-00125

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 25001-28000

2шт.

7

11G-98-21120

PLATE, MARK

SN: 25001-@

2шт.

8

09694-00140

PLATE, MARK,SYMBOL

SN: 25001-@

2шт.

9

09692-03314

PLATE, MARK

SN: 25001-28000

1шт.

11

09683-00060

PLATE, OPERATING,STARTING SWITCH

SN: 25001-28000

1шт.

12

09685-01116

PLATE, OPERATING,LIFT AND TILT LEVER LOCK

SN: 25001-28000

1шт.

13

11G-98-21131

CHART, OIL

SN: 25001-28000

1шт.

14

09685-01116

PLATE, OPERATING,MISSION LEVER LOCK

SN: 25001-28000

1шт.

16

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 25001-28000

1шт.

17

04418-13060

SCREW

SN: 25001-@

4шт.

18

113-98-21180

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 25001-28000

1шт.

19

113-98-21170

PLATE, OPERATING,INTAKE AIR HEATER

SN: 25001-28000

1шт.

20

09654-00060

PLATE, SAFETY,WARNING

SN: 25001-28000

1шт.

21

09685-01016

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 25001-@

1шт.

22

113-98-21151

PLATE, CAUTION,HYDRAULIC FILTER

SN: 25001-28000

1шт.
