Артикул
Название
Примечание
Количество
|1
114-15-00054
TRANSMISSION ASS'Y
SN: 42714-UP
1шт.
|1
114-15-00053
TRANSMISSION ASS'Y
SN: 42104-42713
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 42001-42103
1шт.
|$$4

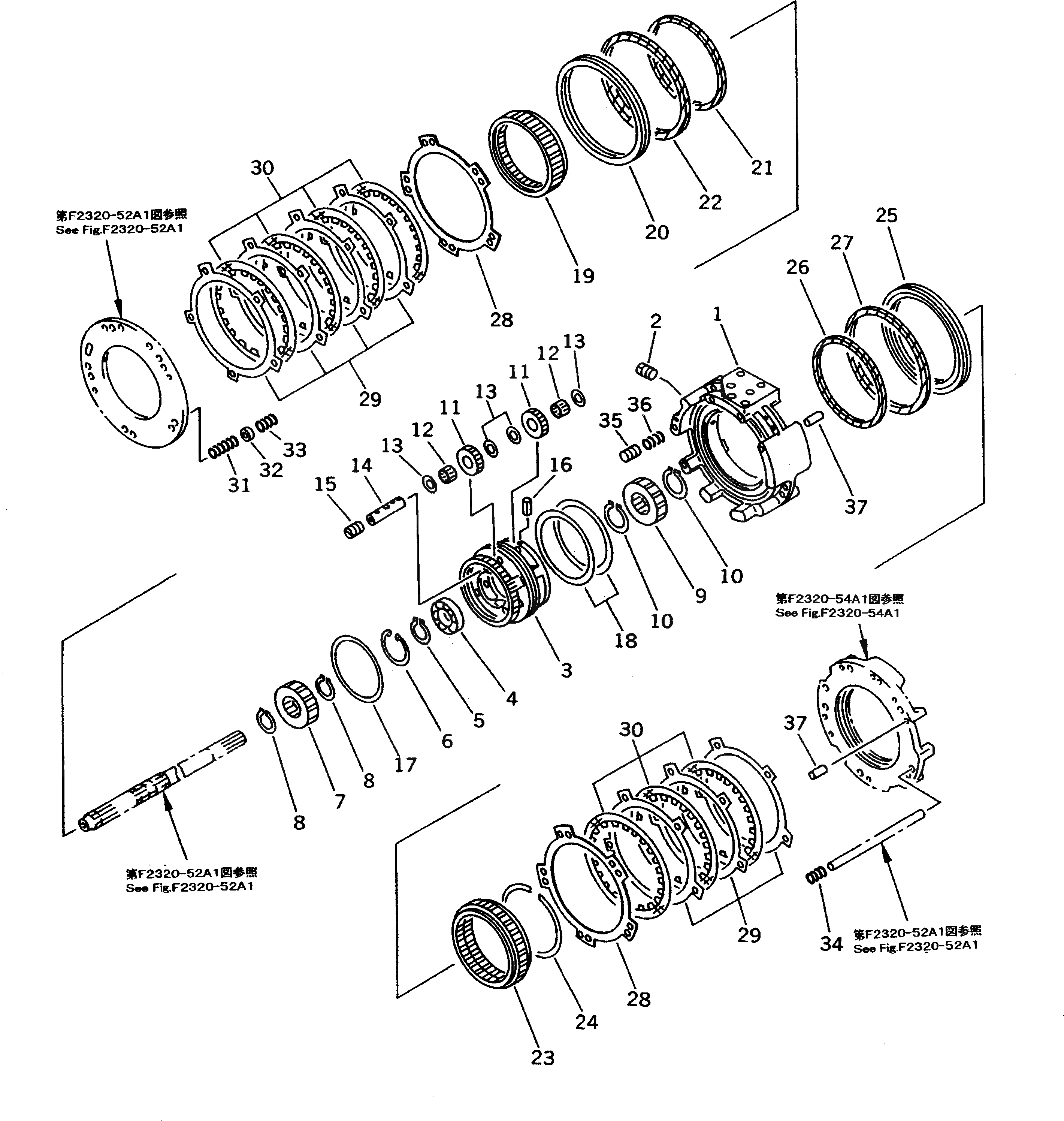

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A1 TO F2320-59A1.
-1шт.
|1
114-15-51051
TRANSMISSION ASS'Y
SN: 42714-UP
1шт.
|1
114-15-42003
TRANSMISSION ASS'Y
SN: 42104-42713
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 42001-42103
1шт.
|$$8
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A1 TO F2320-55A1 AND F2320-57A1 TO F2320-59A1.
-1шт.
|1
113-15-00230
HOUSING ASS'Y,FORWARD AND 3RD
SN: 42001-UP
1шт.
1
0
HOUSING
SN: 42001-UP
1шт.
3
113-15-42321
CARRIER
SN: (2725)-UP
1шт.
|3
113-15-42320
CARRIER
SN: 42001-(2724)
1шт.
7
113-15-22221
GEAR¤ 36 TEETH
SN: 42001-UP
1шт.
8
113-15-22950
RING,SNAP
SN: 42001-UP
2шт.
9
113-15-22231
GEAR¤ 36 TEETH
SN: 42001-UP
1шт.
11
113-15-22421
GEAR
SN: 42001-UP
8шт.
13
113-15-32560
WASHER,THRUST
SN: 42001-UP
16шт.
|14
113-15-00460
SHAFT ASS'Y
SN: 42001-UP
4шт.
14
0
SHAFT
SN: 42001-UP
1шт.
16
113-15-29560
PIN,SPRING
SN: 42001-UP
4шт.
19
113-15-22620
GEAR,RING
SN: 42601-UP
1шт.
|19
113-15-22650
GEAR,RING
SN: 42001-42600
1шт.
20
113-15-22771
PISTON,FORWARD
SN: 42001-UP
1шт.
23
113-15-22632
RING GEAR
SN: (2725)-UP
1шт.
|23
113-15-22631
GEAR,RING
SN: 42001-(2724)
1шт.
24
113-15-29510
RING,SNAP
SN: 42001-UP
1шт.
25
113-15-22760
PISTON,3RD
SN: 42001-UP
1шт.
30
113-15-42711
DISC
SN: 42001-UP
7шт.
31
113-15-42910
SPRING
SN: 42001-UP
5шт.
32
362-15-12810
GUIDE
SN: 42001-UP
5шт.
33
113-15-42920
SPRING
SN: 42001-UP
5шт.
34
113-15-22920
SPRING
SN: 42001-UP
5шт.
Выбрано товаров: 50
