Артикул
Название
Примечание
Количество
|1
114-15-00036
TRANSMISSION ASS'Y
SN: 42714-UP
1шт.
|1
114-15-00035
TRANSMISSION ASS'Y
SN: 42087-42713
1шт.
|1
114-15-00035
TRANSMISSION ASS'Y,(FOR TWO LEVERS STEERING)
SN: 42087-UP
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 42001-42086
1шт.
|$$5

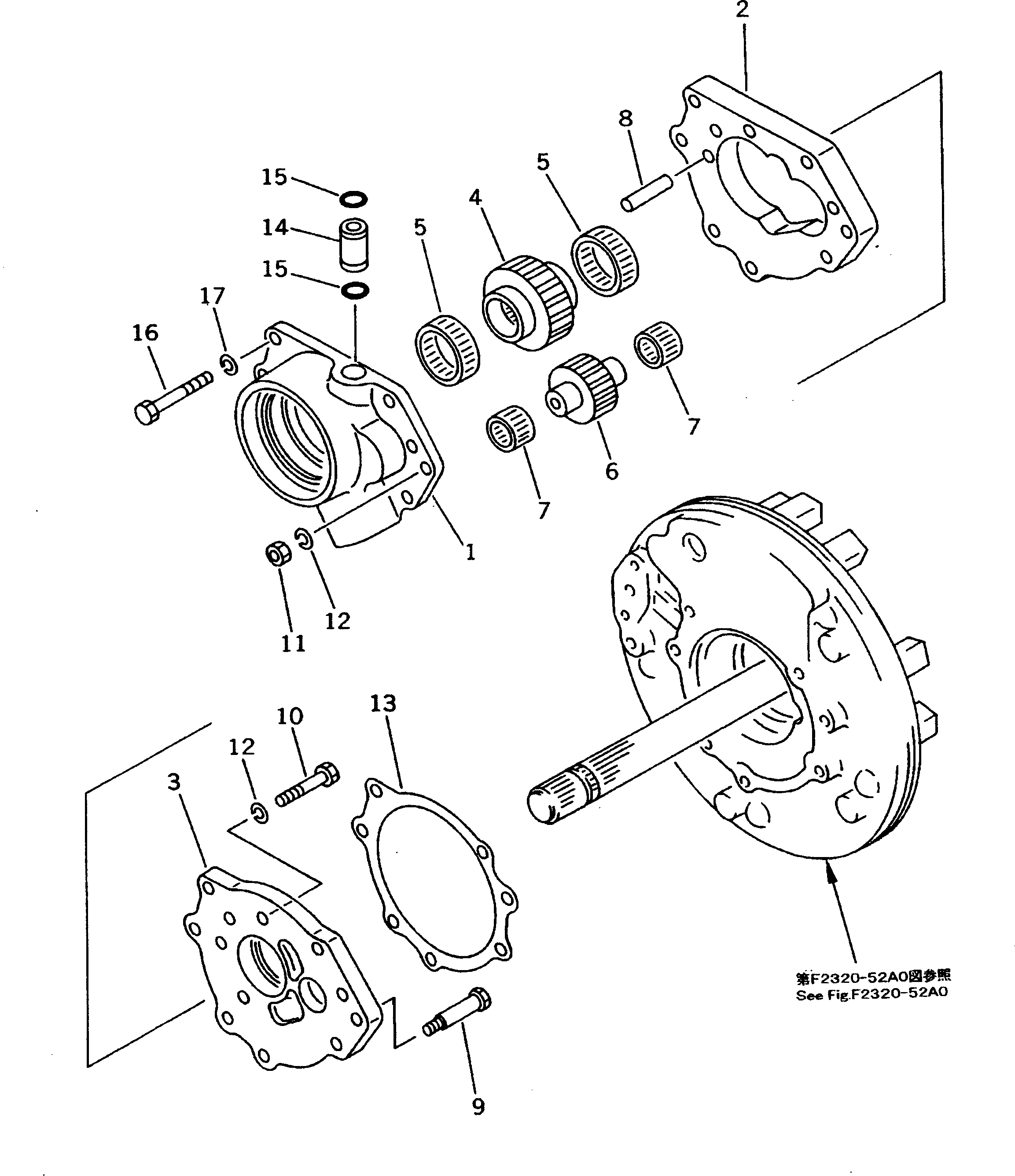

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0.
-1шт.
|1
114-15-51010
TRANSMISSION ASS'Y
SN: 42714-UP
1шт.
|1
114-15-00511
TRANSMISSION ASS'Y
SN: 42087-42713
1шт.
|1
114-15-00511
TRANSMISSION ASS'Y,(FOR TWO LEVERS STEERING)
SN: 42087-UP
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 42001-42086
1шт.
|$$10
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0.
-1шт.
1
113-15-24810
HOUSING
SN: 42001-UP
1шт.
2
113-15-24820
CASE
SN: 42001-UP
1шт.
3
113-15-34830
BRACKET
SN: 42001-UP
1шт.
4
113-15-24840
GEAR
SN: 42001-UP
1шт.
5
113-15-29420
BEARING
SN: 42001-UP
2шт.
6
113-15-24850
GEAR
SN: 42001-UP
1шт.
7
113-15-29460
BEARING
SN: 42001-UP
2шт.
8
113-15-24880
PIN,DOWEL
SN: 42001-UP
1шт.
9
113-15-24870
BOLT
SN: 42001-UP
1шт.
13
113-15-24860
GASKET (K1)
SN: 42001-UP
1шт.
16
01010-80855
BOLT
SN: 42001-UP
7шт.
Выбрано товаров: 28
