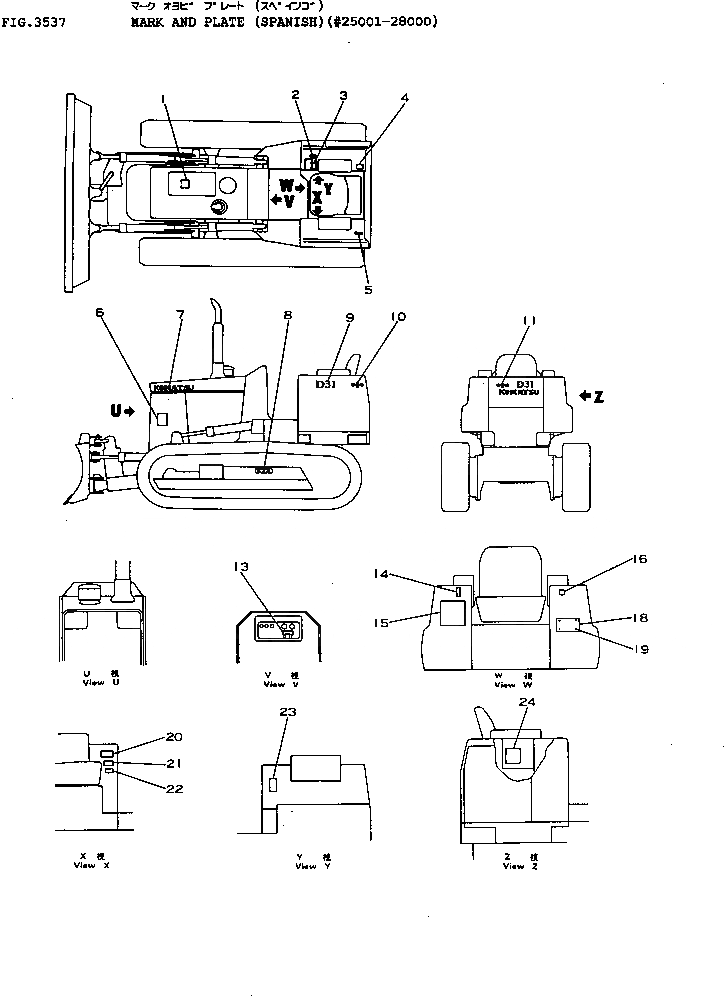

Запчасти Komatsu D31A-16 МАРКИРОВКА (ИСПАНИЯ)(№-8) ЧАСТИ КОРПУСА

1

113-98-21660

PLATE, INSTRUCTION,RADIATOR

SN: 25001-@

1шт.

2

114-98-21151

PLATE, OPERATING,ANGLE LEVER

SN: 25001-@

1шт.

3

09670-18070

PLATE, OPERATING,LIFT AND TILT LEVER

SN: 25001-@

1шт.

4

09653-10080

PLATE, SAFETY,HYDRAULIC TANK

SN: 25001-28000

1шт.

5

09652-10101

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 25001-28000

1шт.

6

114-98-21660

PLATE, SAFETY,ANGLE CYLINDER

SN: 25001-28000

1шт.

7

09690-00450

PLATE, MARK,KOMATSU

SN: 25001-@

2шт.

8

09657-10125

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 25001-28000

2шт.

9

114-98-21120

PLATE, MARK,D31A

SN: 25001-@

2шт.

10

09694-00140

PLATE, MARK,SYMBOL

SN: 25001-@

2шт.

11

09692-03312

PLATE, MARK

SN: 25001-28000

1шт.

13

09683-10060

PLATE, OPERATING,STARTING SWITCH

SN: 25001-28000

1шт.

14

09685-10116

PLATE, OPERATING,LIFT AND TILT LEVER LOCK

SN: 25001-28000

1шт.

15

114-98-21631

CHART, OIL

SN: 25001-28000

1шт.

16

09685-10116

PLATE, OPERATING,MISSION LEVER LOCK

SN: 25001-28000

1шт.

18

09602-11635

PLATE, NAME,(LIMITED SUPPLY)

SN: 25001-28000

1шт.

19

04418-13060

SCREW

SN: 25001-@

4шт.

20

113-98-21680

PLATE, CAUTION,ENGINE STOPPED

SN: 25001-28000

1шт.

21

113-98-21670

PLATE, OPERATING,INTAKE AIR HEATER

SN: 25001-28000

1шт.

22

09654-10060

PLATE, SAFETY,WARNING

SN: 25001-28000

1шт.

23

09685-10016

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 25001-@

1шт.

24

113-98-21651

PLATE, CAUTION,HYDRAULIC FILTER

SN: 25001-28000

1шт.
