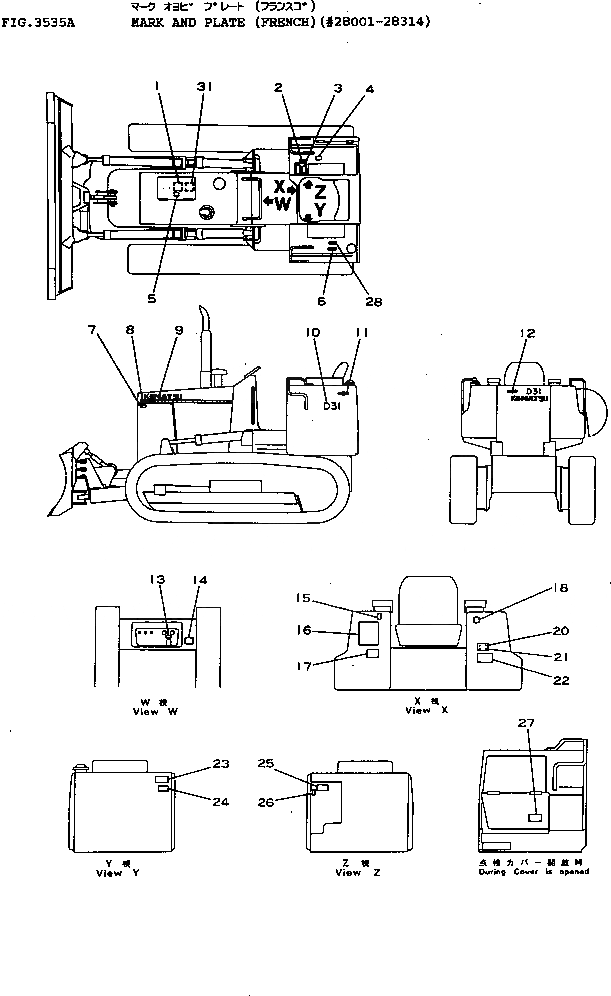

Запчасти Komatsu D31A-16 МАРКИРОВКА (ФРАНЦИЯ)(№8-8) ЧАСТИ КОРПУСА

1

09650-50103

PLATE, INSTRUCTION,RADIATOR WATER LEVEL

SN: 28001-@

1шт.

2

114-98-21150

PLATE, OPERATING,ANGLE LEVER

SN: 28001-@

1шт.

3

09670-50070

PLATE, OPERATING,LIFT AND TILT LEVER

SN: 28001-@

1шт.

4

09653-05000

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 28001-@

1шт.

5

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 28001-@

1шт.

6

09654-51101

PLATE, SAFETY,FUEL TANK WATER DRAIN

SN: 28001-@

1шт.

7

09667-05000

PLATE, SAFETY,ENGINE COVER

SN: 28001-@

1шт.

8

113-98-21220

PLATE, STRIPE

SN: 28001-@

2шт.

9

09690-00450

PLATE, MARK,KOMATSU

SN: 25001-@

2шт.

10

114-98-21120

PLATE, MARK,D31A

SN: 25001-@

2шт.

11

09694-00140

PLATE, MARK,SYMBOL

SN: 25001-@

2шт.

12

09692-02312

PLATE, MARK

SN: 28001-@

1шт.

13

09683-51060

PLATE, OPERATING,STARTING SWITCH

SN: 28001-@

1шт.

14

09651-05000

PLATE, SAFETY,BEFORE OPERATING

SN: 28001-@

1шт.

15

09685-50116

PLATE, OPERATING,LIFT AND TILT LEVER LOCK

SN: 25001-@

1шт.

16

114-98-21432

CHART, OIL

SN: 28001-@

1шт.

17

09173-05000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 28001-@

1шт.

18

09685-50116

PLATE, OPERATING,MISSION LEVER LOCK

SN: 28001-@

1шт.

20

09601-50835

PLATE, NAME,(LIMITED SUPPLY)

SN: 28001-@

1шт.

21

04418-13060

SCREW

SN: 28001-@

4шт.

22

09657-05010

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 28001-@

1шт.

23

113-98-21481

PLATE, CAUTION,ENGINE STOPPED

SN: 28001-28314

1шт.

24

113-98-21471

PLATE, OPERATING,INTAKE AIR HEATER

SN: 28001-28314

1шт.

25

09654-05000

PLATE, SAFETY,WARNING

SN: 28001-@

1шт.

26

09685-50016

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 25001-@

1шт.

27

113-98-21452

PLATE, CAUTION,HYD. FILTER

SN: 28001-@

1шт.

28

09656-51080

PLATE, INSTRUCTION,ADDITIONAL FUEL STRAINER

SN: 28001-@

1шт.

31

09637-30260

PLATE, INSTRUCTION,AIR CLEANER

SN: 28001-@

1шт.
