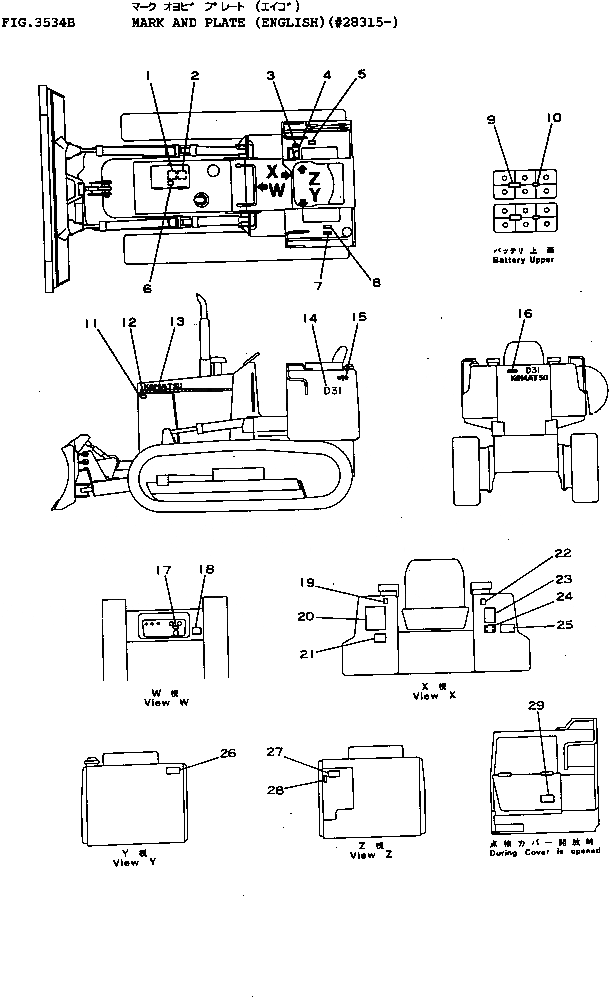

Запчасти Komatsu D31A-16 МАРКИРОВКА (АНГЛ.)(№8-) ЧАСТИ КОРПУСА
№
Артикул
Название
Примечание
Количество
1
09650-30103
PLATE, INSTRUCTION,RADIATOR WATER LEVEL
SN: 28001-UP
1шт.
2
09637-30160
PLATE, INSTRUCTION,AIR CLEANER
SN: 28001-UP
1шт.
3
114-98-21150
PLATE, OPERATING,ANGLE LEVER
SN: 25001-UP
1шт.
4
09670-38070
PLATE, OPERATING,LIFT AND TILT LEVER
SN: 25001-UP
1шт.
5
09653-03000
PLATE, SAFETY,HYDRAULIC TANK CAP
SN: 28001-UP
1шт.
6
09668-03000
PLATE, SAFETY,RADIATOR CAP
SN: 28001-UP
1шт.
7
09652-20101
PLATE, CAUTION,FUEL TANK WATER DRAIN
SN: 28001-UP
1шт.
8
09656-30080
PLATE, INSTRUCTION,ADDITIONAL FUEL STRAINER
SN: 28001-UP
1шт.
9
09664-30081
PLATE, INSTRUCTION,BATTERY MAKER PLATE USA SPEC.
SN: 28001-UP
2шт.
10
09664-30065
PLATE, INSTRUCTION,BATTERY DISTRIBUTOR USA SPEC.
SN: 25001-UP
2шт.
11
09667-03000
PLATE, SAFETY,ENGINE COVER
SN: 28001-UP
1шт.
13
09690-00450
PLATE, MARK,KOMATSU
SN: 25001-UP
2шт.
14
114-98-21120
PLATE, MARK,D31A
SN: 25001-UP
2шт.
15
09694-00140
PLATE, MARK,SYMBOL
SN: 25001-UP
2шт.
16
09692-02312
PLATE, MARK
SN: 28001-UP
1шт.
17
09683-30060
PLATE, OPERATING,STARTING SWITCH
SN: 28001-UP
1шт.
18
09651-03000
PLATE, SAFETY,BEFORE OPERATING
SN: 28001-UP
1шт.
19
09685-30116
PLATE, OPERATING,LIFT AND TILT LEVER LOCK
SN: 25001-UP
1шт.
20
114-98-21332
CHART, OIL
SN: 28001-UP
1шт.
21
09173-03000
PLATE, SAFETY,INSPECTION AND MAINTENANCE
SN: 28001-UP
1шт.
22
09685-30116
PLATE, OPERATING,MISSION LEVER LOCK
SN: 28001-UP
1шт.
23
6130-82-4921
PLATE, CAUTION,RIBBON HEATER
SN: 28315-UP
1шт.
24
09601-00835
PLATE, NAME,(LIMITED SUPPLY)
SN: 28001-UP
1шт.
25
09657-03010
PLATE, SAFETY,TRACK SHOE ADJUSTING
SN: 28001-UP
1шт.
26
09649-03001
PLATE, INSTRUCTION,ENGINE STOPPED
SN: 28315-UP
1шт.
27
09654-03000
PLATE, SAFETY,WARNING
SN: 28001-UP
1шт.
28
09685-30016
PLATE, OPERATING,PARKING BRAKE LEVER
SN: 25001-UP
1шт.
29
113-98-21351
PLATE, CAUTION,HYD. FILTER
SN: 28001-UP
1шт.
Выбрано товаров: 30
