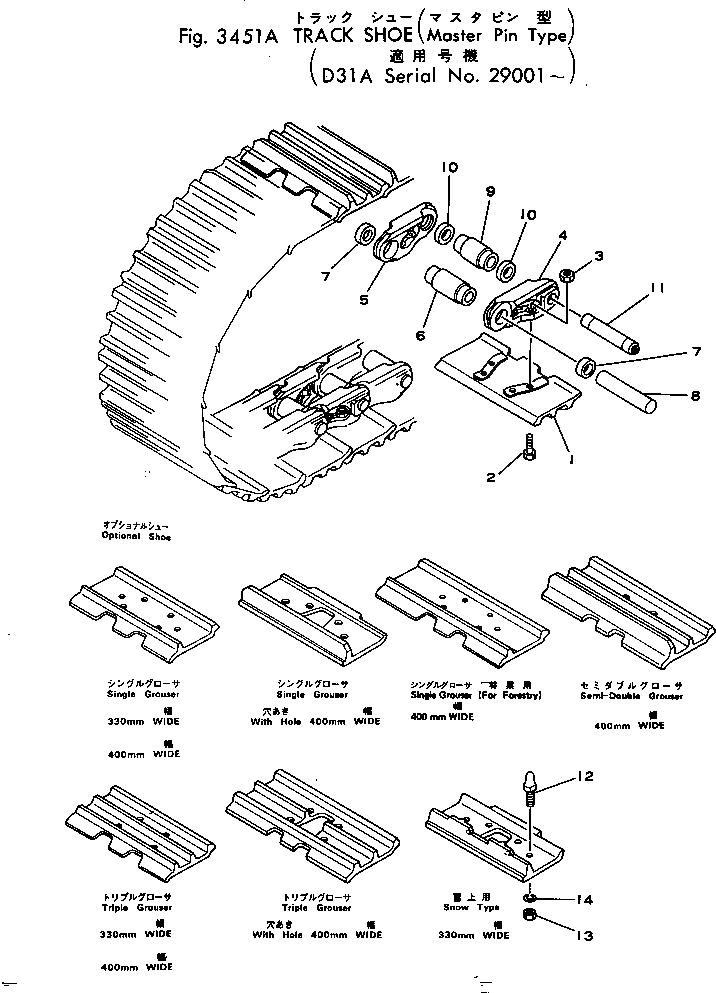

Запчасти Komatsu D31A-16 ГУСЕНИЦЫ (СО СЦЕПНЫМ ПАЛЬЦЕМ)(№9-) ГУСЕНИЦЫ

|$$1

SEMI-DOUBLE 330MM

-1шт.

|$1

111-32-01007

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-32-11110

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

|$5

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

4

112-32-21120

LINK,TRACK, L.H.

SN: 29001-UP

74шт.

5

112-32-21130

LINK,TRACK, R.H.

SN: 29001-UP

74шт.

6

112-32-11143

BUSHING,REGULAR

SN: 29001-UP

70шт.

7

110-32-11572

SEAL,DUST, REGULAR, W-TYPE

SN: 29001-UP

140шт.

8

112-32-11154

PIN,REGULAR

SN: 29001-UP

70шт.

9

112-32-11173

BUSHING,MASTER

SN: 29001-UP

4шт.

10

110-32-11582

SEAL,DUST, MASTER, W-TYPE

SN: 29001-UP

8шт.

11

112-32-11192

PIN,MASTER

SN: 29001-UP

4шт.

12

112-32-11230

BOLT

SN: 25001-UP

148шт.

13

01580-01411

NUT

SN: 25001-UP

148шт.

14

01602-01442

WASHER,SPRING

SN: 25001-UP

148шт.

|$$18

SINGLE 330MM

-1шт.

1

112-32-02202

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

110-32-11440

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$24

SINGLE 400MM

-1шт.

1

112-32-02004

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

110-32-11281

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$30

SINGLE 400MM,WITH HOLE

-1шт.

1

112-32-02902

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11430

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$36

SINGLE 400MM,FOR FORESTRY

-1шт.

1

112-32-03102

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11450

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$42

SEMI-DOUBLE 400MM

-1шт.

1

111-32-01502

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-32-11440

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$48

TRIPLE 330MM

-1шт.

1

111-32-01007

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-32-11291

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$54

TRIPLE 400MM

-1шт.

1

111-32-01402

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-32-11350

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$60

TRIPLE 400MM,WITH HOLE

-1шт.

1

112-32-02702

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

112-32-11420

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$66

SNOW 330MM

-1шт.

1

111-32-01608

TRACK SHOE ASS'Y

SN: 29001-UP

1шт.

1

111-32-11311

SHOE,TRACK

SN: 25001-UP

74шт.

2

110-32-11411

BOLT, SHOE (KIT)

SN: 25001-UP

296шт.

3

01803-01420

NUT,SHOE (KIT)

SN: 25001-UP

296шт.

4

111-32-00025

TRACK LINK ASS'Y

SN: 29001-UP

1шт.

|$$72

SERVICE KIT

-1шт.

2

110-32-05010

SHOE BOLT AND NUT K.

SN: 25001-UP

1шт.

2

110-32-11411

BOLT, SHOE

SN: 25001-UP

50шт.

3

01803-01420

NUT,SHOE

SN: 25001-UP

50шт.

|$$76

OVERSIZE PARTS

-1шт.

|$$77

0.10MM OVERSIZE

-1шт.

6

112-98-09112

BUSHING,REGULAR

SN: 29001-UP

-2шт.

8

112-98-09013

PIN,REGULAR

SN: 29001-UP

-2шт.

9

112-98-09142

BUSHING,MASTER

SN: 29001-UP

-2шт.

11

112-98-09042

PIN,MASTER

SN: 29001-UP

-2шт.

|$$82

0.18MM OVERSIZE

-1шт.

6

112-98-09132

BUSHING,REGULAR

SN: 29001-UP

-2шт.

8

112-98-09033

PIN,REGULAR

SN: 29001-UP

-2шт.

9

112-98-09162

BUSHING,MASTER

SN: 29001-UP

-2шт.

11

112-98-09062

PIN,MASTER

SN: 29001-UP

-2шт.
