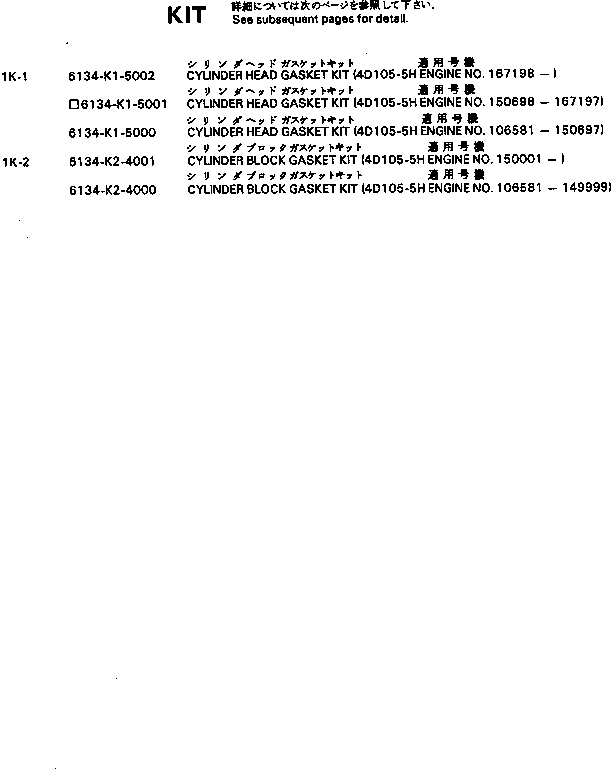

Запчасти Komatsu 4D105-5H КОМПЛЕКТ ПРОКЛАДОК ИНСТРУМЕНТ И ДВИГАТЕЛЬ КОМПЛЕКТ

1

6134-K1-5002

GASKET KIT,CYLINDER HEAD

SN: 167198-UP

1шт.

|1

0

GASKET KIT,CYLINDER HEAD

SN: 150698-167197

1шт.

|1

6134-K1-5000

GASKET KIT,CYLINDER HEAD

SN: 106581-150697

1шт.

|1

6134-11-1812

GASKET,CYLINDER HEAD

SN: 167198-UP

1шт.

|1

0

GASKET,CYLINDER HEAD

SN: 106581-167197

1шт.

|1

6136-11-1821

GASKET,FRONT HANGER

SN: 106581-UP

1шт.

|1

6134-11-8810

O-RING,CYLINDER HEAD COVER

SN: 106581-UP

1шт.

|1

6136-11-8142

PACKING,CYLINDER HEAD COVER

SN: 106581-UP

3шт.

|1

6134-11-4811

GASKET,AIR INTAKE MANIFOLD

SN: 106581-UP

1шт.

|1

6136-11-4820

GASKET,RIBBON HEATER

SN: 106581-UP

2шт.

|1

6136-11-5810

GASKET,EXHAUST MANIFOLD

SN: 150698-UP

2шт.

|1

6135-11-5810

GASKET,EXHAUST MANIFOLD

SN: 106581-150697

2шт.

|1

6130-12-5580

GASKET,MUFFLER

SN: 106581-UP

1шт.

|1

07005-00812

GASKET,NOZZLE HOLDER

SN: 106581-UP

8шт.

|1

6136-11-3131

PACKING,NOZZLE HOLDER DUST

SN: 106581-UP

4шт.

|1

07005-01612

GASKET,WATER TEMPERATURE

SN: 106581-UP

1шт.

|1

6136-11-6810

GASKET,THERMOSTAT

SN: 106581-UP

1шт.

|1

6136-11-6821

GASKET,THERMOSTAT HOUSING

SN: 106581-UP

1шт.

|1

6110-11-4430

GASKET,(NOT SHOWN)

SN: 167198-UP

1шт.

2

6134-K2-4001

GASKET KIT,CYLINDER BLOCK

SN: 150001-UP

1шт.

|2

6134-K2-4000

GASKET KIT,CYLINDER BLOCK

SN: 106581-149999

1шт.

|2

6136-21-2220

SEAL,CREVICE

SN: 106581-UP

4шт.

|2

6136-21-2230

O-RING,CYLINDER LINER

SN: 106581-UP

4шт.

|2

6136-21-2240

O-RING,CYLINDER LINER

SN: 106581-UP

4шт.

|2

07000-62018

O-RING,REGULATOR

SN: 106581-149999

1шт.

|2

07003-02733

GASKET,REGULATOR

SN: 106581-149999

1шт.

|2

6136-21-7811

GASKET,CYLINDER BLOCK COVER

SN: 106581-UP

1шт.

|2

6134-21-1811

GASKET,CYLINDER BLOCK COVER

SN: 106581-UP

1шт.

|2

6136-21-3821

GASKET,FRONT PLATE

SN: 106581-UP

1шт.

|2

6134-21-3810

GASKET,FRONT COVER

SN: 106581-UP

1шт.

|2

6136-21-3510

SEAL¤ FRONT

SN: 106581-UP

1шт.

|2

6134-21-3830

GASKET,FRONT COVER¤ COVER

SN: 106581-UP

1шт.

|2

6150-71-1910

SEAL,OIL

SN: 106581-UP

1шт.

|2

07000-03022

O-RING,OIL PAN DRAIN PLUG

SN: 106581-UP

1шт.

|2

6134-21-5810

GASKET,OIL PAN

SN: 106581-UP

2шт.

|2

6134-21-5950

GASKET,OIL PAN PLATE

SN: 150001-UP

3шт.

|2

6134-21-5950

GASKET,OIL PAN PLATE

SN: 106581-149999

1шт.

|2

6130-22-5480

GASKET,OIL GAUGE GUIDE

SN: 106581-UP

1шт.

|2

6136-21-4812

GASKET,FLYWHEEL HOUSING

SN: 106581-UP

1шт.

|2

07002-03334

O-RING,FLYWHEEL HOUSING

SN: 106581-UP

2шт.

|2

6136-21-4831

GASKET,FLYWHEEL HOUSING

SN: 106581-UP

1шт.

|2

07000-02095

O-RING,IDLE SHAFT

SN: 106581-UP

1шт.

|2

6130-21-4231

SEAL¤ REAR

SN: 106581-UP

1шт.

|2

01658-25223

WASHER,LOCK

SN: 106581-UP

1шт.

|2

07000-02135

O-RING,FLYWHEEL HOUSING

SN: 106581-UP

1шт.

|2

07000-63035

O-RING,OIL SUCTION PIPE

SN: 106581-UP

1шт.

|2

07000-63028

O-RING,OIL FILTER MOUNTING

SN: 106581-UP

2шт.

|2

07000-63022

O-RING,OIL FILTER PIPING

SN: 106581-UP

2шт.

|2

07000-63028

O-RING,OIL FILTER PIPING

SN: 106581-UP

2шт.

|2

6134-61-2811

GASKET,OIL COOLER

SN: 106581-UP

1шт.

|2

07000-22021

O-RING,OIL COOLER PIPE

SN: 106581-UP

1шт.

|2

07000-63028

O-RING,OIL COOLER PIPE

SN: 106581-UP

1шт.

|2

07000-02065

O-RING,INJECTION PUMP CASE

SN: 106581-UP

1шт.

|2

6134-71-3340

GASKET,INJECTION PUMP CASE

SN: 106581-UP

1шт.

|2

01653-22016

WASHER,LOCK¤ INJECTION GEAR

SN: 106581-UP

1шт.

|2

07005-01012

GASKET,OIL INLET PIPE

SN: 106581-UP

4шт.

|2

07005-01412

GASKET,OIL FILTER PIPING

SN: 106581-UP

8шт.

|2

6150-61-1520

SEAL¤ WATER

SN: 106581-UP

1шт.

|2

6131-62-1340

SEAL,OIL¤ WATER PUMP

SN: 106581-UP

1шт.

|2

6140-61-1160

O-RING,WATER PUMP COVER

SN: 106581-UP

1шт.

|2

6134-61-1811

GASKET,WATER PUMP

SN: 106581-UP

1шт.

|2

07000-02100

O-RING,STARTING MOTOR

SN: 106581-UP

1шт.

1

6134-K1-5002

GASKET KIT,CYLINDER HEAD

SN: 167198-UP

1шт.

|1

0

GASKET KIT,CYLINDER HEAD

SN: 150698-167197

1шт.

|1

6134-K1-5000

GASKET KIT,CYLINDER HEAD

SN: 106581-150697

1шт.

|1

6134-11-1812

GASKET,CYLINDER HEAD

SN: 167198-UP

1шт.

|1

0

GASKET,CYLINDER HEAD

SN: 106581-167197

1шт.

|1

6136-11-1821

GASKET,FRONT HANGER

SN: 106581-UP

1шт.

|1

6134-11-8810

O-RING,CYLINDER HEAD COVER

SN: 106581-UP

1шт.

|1

6136-11-8142

PACKING,CYLINDER HEAD COVER

SN: 106581-UP

3шт.

|1

6134-11-4811

GASKET,AIR INTAKE MANIFOLD

SN: 106581-UP

1шт.

|1

6136-11-4820

GASKET,RIBBON HEATER

SN: 106581-UP

2шт.

|1

6136-11-5810

GASKET,EXHAUST MANIFOLD

SN: 150698-UP

2шт.

|1

6135-11-5810

GASKET,EXHAUST MANIFOLD

SN: 106581-150697

2шт.

|1

6130-12-5580

GASKET,MUFFLER

SN: 106581-UP

1шт.

|1

07005-00812

GASKET,NOZZLE HOLDER

SN: 106581-UP

8шт.

|1

6136-11-3131

PACKING,NOZZLE HOLDER DUST

SN: 106581-UP

4шт.

|1

07005-01612

GASKET,WATER TEMPERATURE

SN: 106581-UP

1шт.

|1

6136-11-6810

GASKET,THERMOSTAT

SN: 106581-UP

1шт.

|1

6136-11-6821

GASKET,THERMOSTAT HOUSING

SN: 106581-UP

1шт.

|1

6110-11-4430

GASKET,(NOT SHOWN)

SN: 167198-UP

1шт.

2

6134-K2-4001

GASKET KIT,CYLINDER BLOCK

SN: 150001-UP

1шт.

|2

6134-K2-4000

GASKET KIT,CYLINDER BLOCK

SN: 106581-149999

1шт.

|2

6136-21-2220

SEAL,CREVICE

SN: 106581-UP

4шт.

|2

6136-21-2230

O-RING,CYLINDER LINER

SN: 106581-UP

4шт.

|2

6136-21-2240

O-RING,CYLINDER LINER

SN: 106581-UP

4шт.

|2

07000-62018

O-RING,REGULATOR

SN: 106581-149999

1шт.

|2

07003-02733

GASKET,REGULATOR

SN: 106581-149999

1шт.

|2

6136-21-7811

GASKET,CYLINDER BLOCK COVER

SN: 106581-UP

1шт.

|2

6134-21-1811

GASKET,CYLINDER BLOCK COVER

SN: 106581-UP

1шт.

|2

6136-21-3821

GASKET,FRONT PLATE

SN: 106581-UP

1шт.

|2

6134-21-3810

GASKET,FRONT COVER

SN: 106581-UP

1шт.

|2

6136-21-3510

SEAL¤ FRONT

SN: 106581-UP

1шт.

|2

6134-21-3830

GASKET,FRONT COVER¤ COVER

SN: 106581-UP

1шт.

|2

6150-71-1910

SEAL,OIL

SN: 106581-UP

1шт.

|2

07000-03022

O-RING,OIL PAN DRAIN PLUG

SN: 106581-UP

1шт.

|2

6134-21-5810

GASKET,OIL PAN

SN: 106581-UP

2шт.

|2

6134-21-5950

GASKET,OIL PAN PLATE

SN: 150001-UP

3шт.

|2

6134-21-5950

GASKET,OIL PAN PLATE

SN: 106581-149999

1шт.

|2

6130-22-5480

GASKET,OIL GAUGE GUIDE

SN: 106581-UP

1шт.

|2

6136-21-4812

GASKET,FLYWHEEL HOUSING

SN: 106581-UP

1шт.

|2

07002-03334

O-RING,FLYWHEEL HOUSING

SN: 106581-UP

2шт.

|2

6136-21-4831

GASKET,FLYWHEEL HOUSING

SN: 106581-UP

1шт.

|2

07000-02095

O-RING,IDLE SHAFT

SN: 106581-UP

1шт.

|2

6130-21-4231

SEAL¤ REAR

SN: 106581-UP

1шт.

|2

01658-25223

WASHER,LOCK

SN: 106581-UP

1шт.

|2

07000-02135

O-RING,FLYWHEEL HOUSING

SN: 106581-UP

1шт.

|2

07000-63035

O-RING,OIL SUCTION PIPE

SN: 106581-UP

1шт.

|2

07000-63028

O-RING,OIL FILTER MOUNTING

SN: 106581-UP

2шт.

|2

07000-63022

O-RING,OIL FILTER PIPING

SN: 106581-UP

2шт.

|2

07000-63028

O-RING,OIL FILTER PIPING

SN: 106581-UP

2шт.

|2

6134-61-2811

GASKET,OIL COOLER

SN: 106581-UP

1шт.

|2

07000-22021

O-RING,OIL COOLER PIPE

SN: 106581-UP

1шт.

|2

07000-63028

O-RING,OIL COOLER PIPE

SN: 106581-UP

1шт.

|2

07000-02065

O-RING,INJECTION PUMP CASE

SN: 106581-UP

1шт.

|2

6134-71-3340

GASKET,INJECTION PUMP CASE

SN: 106581-UP

1шт.

|2

01653-22016

WASHER,LOCK¤ INJECTION GEAR

SN: 106581-UP

1шт.

|2

07005-01012

GASKET,OIL INLET PIPE

SN: 106581-UP

4шт.

|2

07005-01412

GASKET,OIL FILTER PIPING

SN: 106581-UP

8шт.

|2

6150-61-1520

SEAL¤ WATER

SN: 106581-UP

1шт.

|2

6131-62-1340

SEAL,OIL¤ WATER PUMP

SN: 106581-UP

1шт.

|2

6140-61-1160

O-RING,WATER PUMP COVER

SN: 106581-UP

1шт.

|2

6134-61-1811

GASKET,WATER PUMP

SN: 106581-UP

1шт.

|2

07000-02100

O-RING,STARTING MOTOR

SN: 106581-UP

1шт.
