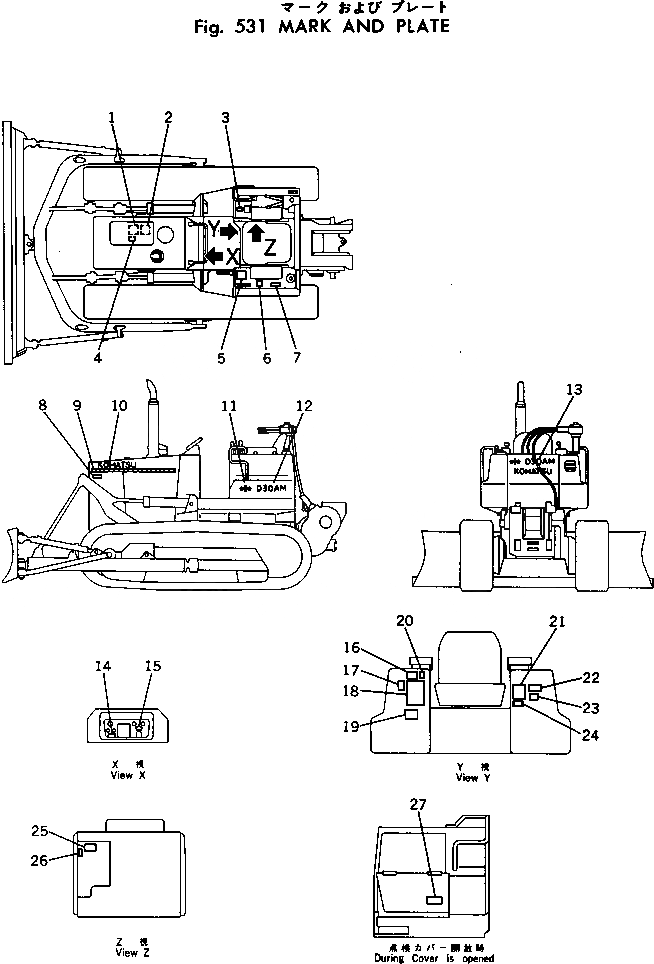

Запчасти Komatsu D30AM-17 МАРКИРОВКА ЧАСТИ КОРПУСА

1

09650-01103

PLATE, INSTRUCTION,RADIATOR

SN: 32001-UP

1шт.

2

09637-00161

PLATE, INSTRUCTION,AIR CLEANER

SN: 32001-UP

1шт.

3

09670-00004

PLATE, OPERATING,BLADE LEVER

SN: 32001-UP

1шт.

4

09668-00100

PLATE, SAFETY,RADIATOR

SN: 32001-UP

1шт.

5

111-06-11360

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 32001-UP

1шт.

6

09653-00100

PLATE, SAFETY,HYDRAULIC TANK

SN: 32001-UP

1шт.

7

09652-01101

PLATE, CAUTION,FUEL TANK

SN: 32001-UP

1шт.

8

09667-00100

PLATE, SAFETY,ENGINE COVER

SN: 32001-UP

1шт.

9

113-98-21220

PLATE, STRIPE

SN: 32001-UP

2шт.

10

09690-00450

PLATE, MARK

SN: 32001-UP

2шт.

11

09694-00140

PLATE, MARK

SN: 32001-UP

2шт.

12

112-98-51130

PLATE, MARK

SN: 32001-UP

2шт.

13

09692-4630N

PLATE, MARK

SN: 32001-UP

1шт.

14

09651-00100

PLATE, SAFETY,BEFORE OPERATING

SN: 32001-UP

1шт.

15

09683-01060

PLATE, OPERATING,STARTING SWITCH

SN: 32001-UP

1шт.

16

6130-81-9910

PLATE, CAUTION,ENGINE OIL

SN: 32001-UP

1шт.

17

09173-00100

PLATE, SAFETY,CAUTION

SN: 32001-UP

1шт.

18

11G-98-31120

CHART, OIL

SN: 32001-UP

1шт.

19

09657-00110

PLATE, SAFETY,TRACK SHOE ADJUSTING

SN: 32001-UP

1шт.

20

09685-00002

PLATE, OPERATING,BLADE LEVER LOCK

SN: 32001-UP

1шт.

21

112-98-51110

PLATE

SN: 32001-UP

1шт.

22

09649-00101

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 32001-UP

1шт.

23

113-98-21270

PLATE, OPERATING

SN: 32001-UP

1шт.

24

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 32001-UP

1шт.

24

04418-13060

SCREW

SN: 32001-UP

4шт.

25

09685-00001

PLATE, OPERATING,PARKING

SN: 32001-UP

1шт.

26

09654-00100

PLATE, SAFETY,WARNING

SN: 32001-UP

1шт.

27

103-98-21250

PLATE, CAUTION,OIL FILTER

SN: 32001-UP

1шт.
