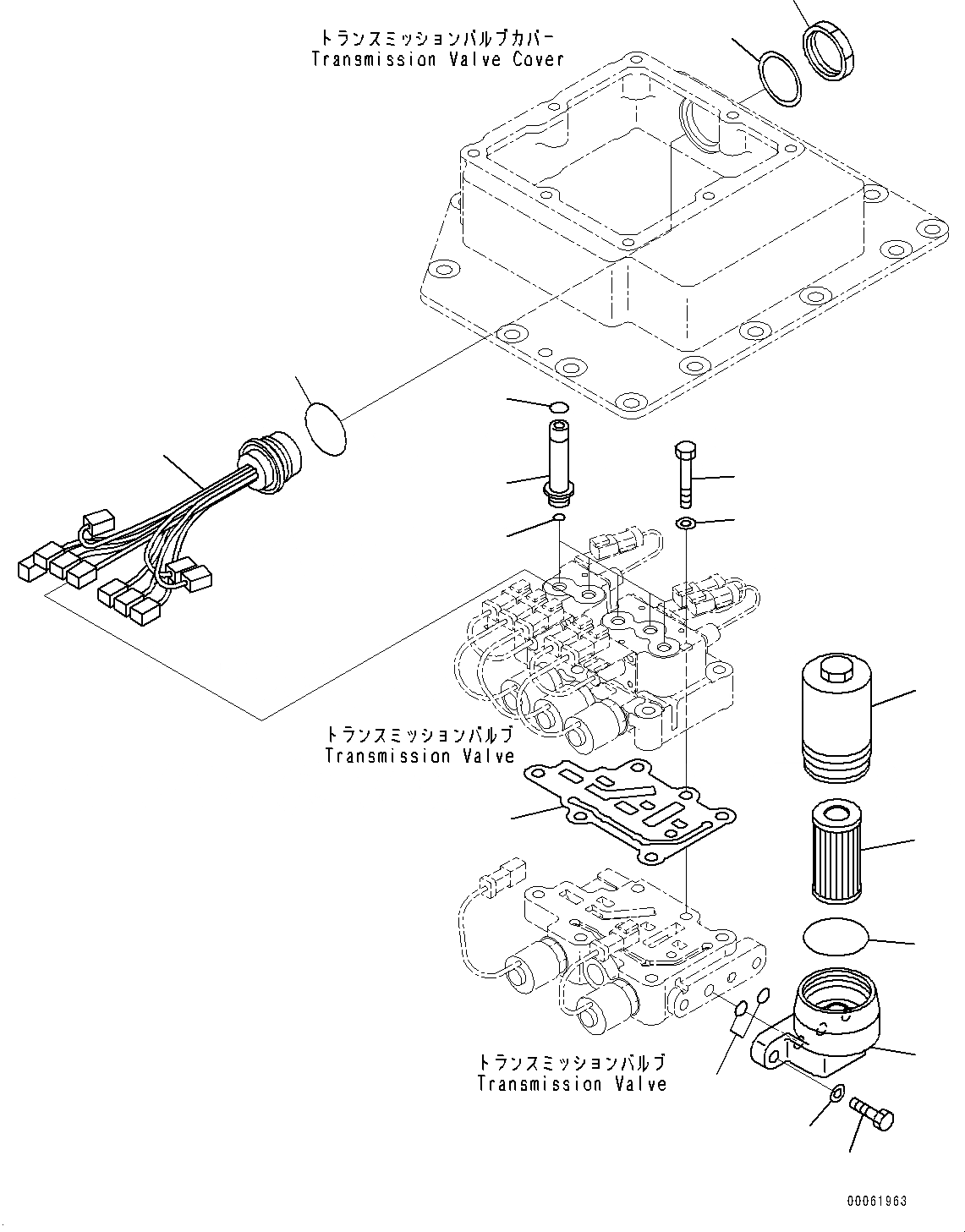

Запчасти Komatsu PC750LC-6K-01 СИЛОВАЯ ПЕРЕДАЧА, ФИЛЬТР. ТРУБЫ (№-) СИСТЕМА ОХЛАЖДЕНИЯ

|$0

17M-22-50100

Power Train Assembly

SN: 35021-UP

1шт.

|$1

17M-15-51101

Transmission Assembly

SN: (103375-UP

1шт.

|$2

17M-15-51100

Transmission Assembly

SN: 35021-(103374

1шт.

|$3

17M-15-55501

Valve Assembly

SN: 35021-UP

1шт.

1

195-15-75531

Gasket, (Kit : K05)

SN: 35021-UP

1шт.

2

01010-81055

Bolt

SN: 35021-UP

2шт.

3

01643-31032

Washer

SN: 35021-UP

2шт.

4

17A-15-45540

Sleeve

SN: 35021-UP

5шт.

5

07000-72016

O-ring, (Kit : K05)

SN: 35021-UP

5шт.

6

07002-61823

O-ring, (Kit : K05)

SN: 35021-UP

5шт.

7

154-15-65554

Filter Assembly

SN: 35021-UP

1шт.

8

154-15-65561

Element

SN: 35021-UP

1шт.

9

154-15-65590

O-ring, (Kit : K05)

SN: 35021-UP

1шт.

10

07000-72014

O-ring, (Kit : K05)

SN: 35021-UP

2шт.

11

01010-81035

Bolt

SN: 35021-UP

2шт.

12

01643-31032

Washer

SN: 35021-UP

2шт.

13

195-15-77200

Wiring Harness

SN: 35021-UP

1шт.

14

195-15-75740

O-ring, (Kit : K05)

SN: 35021-UP

1шт.

15

08191-50809

Washer, Lock

SN: 35021-UP

1шт.

16

08191-50808

Nut

SN: 35021-UP

1шт.

|$0

17M-22-50100

Power Train Assembly

|$1

17M-15-51101

Transmission Assembly

|$2

17M-15-51100

Transmission Assembly

|$3

17M-15-55501

Valve Assembly

1

195-15-75531

Gasket, (Kit : K05)

2

01010-81055

Bolt

3

01643-31032

Washer

4

17A-15-45540

Sleeve

5

07000-72016

O-ring, (Kit : K05)

6

07002-61823

O-ring, (Kit : K05)

7

154-15-65554

Filter Assembly

8

154-15-65561

Element

9

154-15-65590

O-ring, (Kit : K05)

10

07000-72014

O-ring, (Kit : K05)

11

01010-81035

Bolt

12

01643-31032

Washer

13

195-15-77200

Wiring Harness

14

195-15-75740

O-ring, (Kit : K05)

15

08191-50809

Washer, Lock

16

08191-50808

Nut
